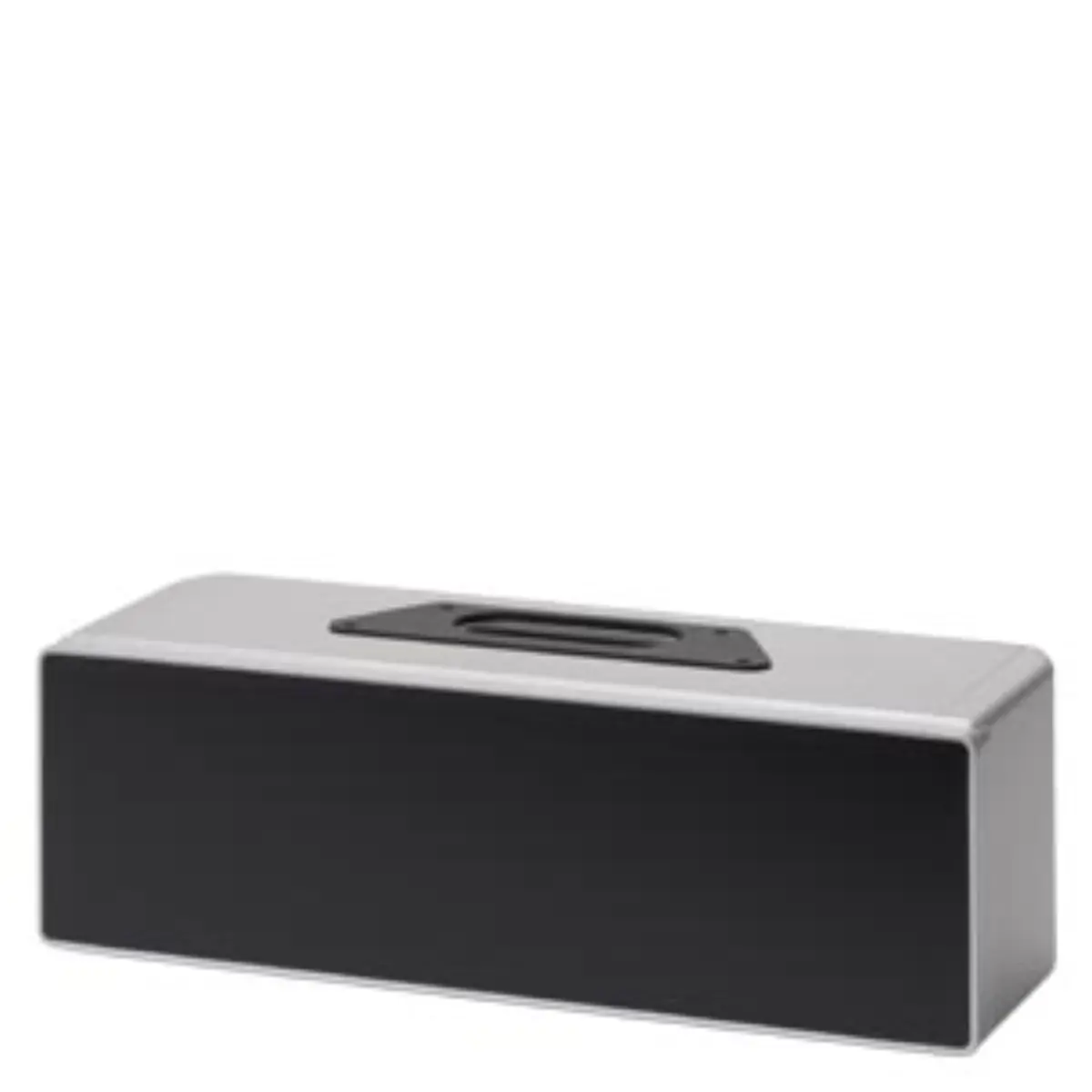

Siemens 6AV7674-1LA30-0AA0 Extension Unit Box Details

Part number

6AV7674-1LA30-0AA0

Brand

Siemens

Category

HMI Panels

Product type

Extension Units and operator controls

Lifecycle

Active Product

Dimensions

36.4 x 13.4 x 12.1 cm

Net weight

1.973 Kg

Source category

Extension Units and operator controls

• This extension unit box is classified under the product type Extension Units and operator controls within the industrial automation sector.
• The physical dimensions of the unit are recorded as 36.4 x 13.4 x 12.1 cm, providing a compact footprint for integration.
• The net weight of the extension unit box is listed as 1.973 Kg, ensuring manageable handling during installation procedures.
• The product lifecycle status is indicated as Active Product, suggesting ongoing support and relevance for current industrial applications.
• The housing is described as deep and empty, allowing for the flexible installation of control elements without pre-perforation constraints.
• It is intended for mounting on all fully IP65-enclosed 16:9 HMI/IPC devices, ensuring environmental protection standards are met.

• The part number 6AV7674-1LA30-0AA0 uniquely identifies this specific Siemens extension unit box model for reference purposes.
• The normalized part number 6AV76741LA300AA0 may be used for database indexing and systematic cataloging within inventory systems.
• This model falls under the category of HMI panels, specifically focusing on extension units and operator controls.
• The source category path includes Protected devices and system components, indicating its role in safeguarding operational interfaces.
