Siemens 6AV6647-0AJ11-3AX1 HMI Panel Details

Part number

6AV6647-0AJ11-3AX1

Brand

Siemens

Category

HMI Panels

Product type

HMI Panels

Lifecycle

Active Product

Dimensions

24.8 x 17.4 x 4.8 cm

Net weight

0.422 Kg

• Display technology is defined as a 4-inch widescreen TFT panel with 256-color capability. Keep dimensions 24.8 x 17.4 x 4.8 cm and net weight 0.422 Kg unchanged while comparing project documents and product image evidence.
• Communication interface is established through PROFINET, supporting standard industrial Ethernet protocols.
• Operation method relies on key operation, allowing direct user interaction with the interface.
• Configuration software requirements include WinCC Basic V11 SP2 or STEP 7 Basic V11 SP2.
• Physical dimensions are recorded as 24.8 cm in width, 17.4 cm in height, and 4.8 cm in depth.
• Net weight is listed at 0.422 kg, indicating a lightweight design for mounting flexibility.

• The part number 6AV6647-0AJ11-3AX1 uniquely identifies this specific KP400 Basic Color PN variant. Use the source path hmi-panels to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Product lifecycle status is currently active, meaning the model remains in production or support.
• Brand attribution is clearly assigned to Siemens, a recognized manufacturer of industrial automation components.
• Category classification places this unit firmly within the HMI Panels segment of industrial hardware.

Parameters are factual source fields retained for model review.

• Screen size is specified as 4 inches, providing a widescreen aspect ratio for information display. Check product-owned images, label text, connector area, and submitted model references against the exact 6AV6647-0AJ11-3AX1 record before publication.
• Color depth is limited to 256 colors, which is standard for basic panel operations.
• Interface type is PROFINET, enabling high-speed communication within modern industrial networks.
• Software dependency requires WinCC Basic V11 SP2 or STEP 7 Basic V11 SP2 for configuration.
• Included documentation mentions open-source software provided free of charge on an enclosed CD.

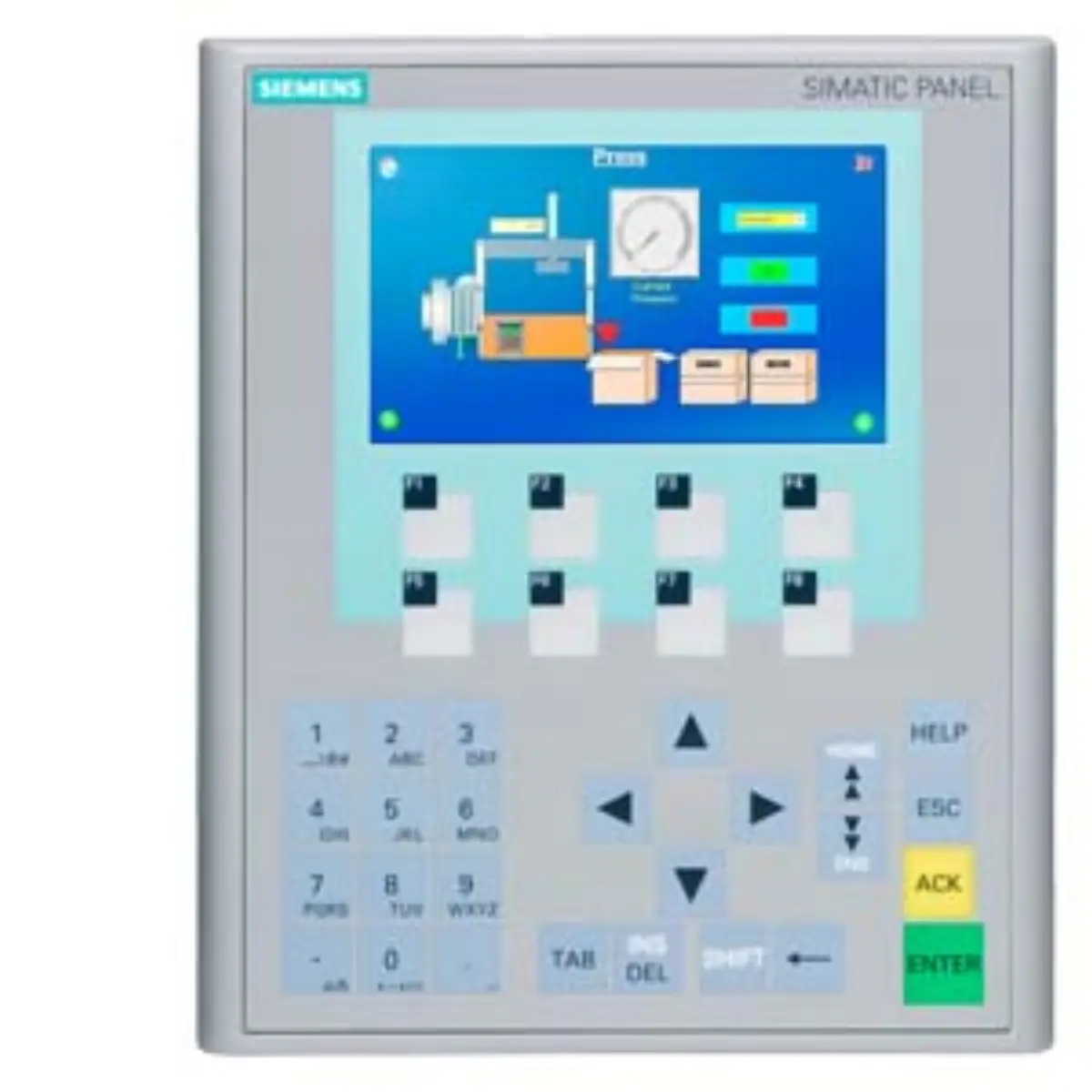

• Visual inspection should confirm the presence of the 4-inch TFT display screen area.
• Check for the key operation interface elements located below or around the display panel.
• Verify the PROFINET port location on the side or bottom edge of the housing.
• Ensure the physical dimensions match the recorded 24.8 x 17.4 x 4.8 cm measurements.

• Review the submitted model number to ensure it matches the required KP400 specification.
• Confirm that the PROFINET interface aligns with the existing network infrastructure requirements.
• Verify software license review details for WinCC Basic V11 SP2 or STEP 7 Basic V11 SP2.
• Assess physical mounting space constraints against the recorded dimensions and net weight limits.

• Source parameter review indicates the product is listed as an active component.
• Project document review should verify application context with existing WinCC or STEP 7 licenses.
• Technical specification analysis confirms the 256-color limit for basic visualization tasks.
• Physical dimension check ensures the 24.8 x 17.4 x 4.8 cm footprint fits the panel.
