Siemens 6AV3688-3EH47-0AX0 SIMATIC HMI KP32F PN Key Panel

Part number

6AV3688-3EH47-0AX0

Brand

Siemens

Category

HMI Panels

Product type

HMI Panels

Lifecycle

Active Product

Dimensions

46.3 x 33.7 x 13.2 cm

Net weight

1.871 Kg

Source category

SIMATIC HMI KP8/KP8F/KP32F

• The unit operates on a 24 V DC power supply which can be looped through. Keep dimensions 46.3 x 33.7 x 13.2 cm and net weight 1.871 Kg unchanged while comparing project documents and product image evidence.
• It includes sixteen digital inputs and sixteen digital input/output channels for connectivity.
• PROFINET communication interfaces support standard Ethernet networking protocols for data exchange.
• Integrated PROFIsafe functionality ensures safe communication between the panel and controller systems.
• Four dedicated safety DI pins provide additional hardware-level safety signal processing.
• Physical dimensions measure 46.3 x 33.7 x 13.2 cm with a net weight of 1.871 Kg.

• The part number 6AV3688-3EH47-0AX0 identifies this specific KP32F PN configuration. Use the source path Automation technology / Basic HMI / Key Panels / SIMATIC HMI KP8/KP8F/KP32F to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• It belongs to the SIMATIC HMI KP8/KP8F/KP32F family of key panels.
• The lifecycle status is recorded as an active product in current catalogs.
• The brand designation confirms manufacturing by Siemens for industrial automation sectors.

Parameters are factual source fields retained for model review.

• STEP 7 V5.5 or higher is required for full parameterization of the device. Check product-owned images, label text, connector area, and submitted model references against the exact 6AV3688-3EH47-0AX0 record before publication.
• The power supply voltage must match the 24 V DC specification precisely.
• Digital I/O counts include both input and output channel configurations.
• Safety pin assignments require careful review during system integration planning stages.
• LED color options allow for customizable visual feedback based on process needs.

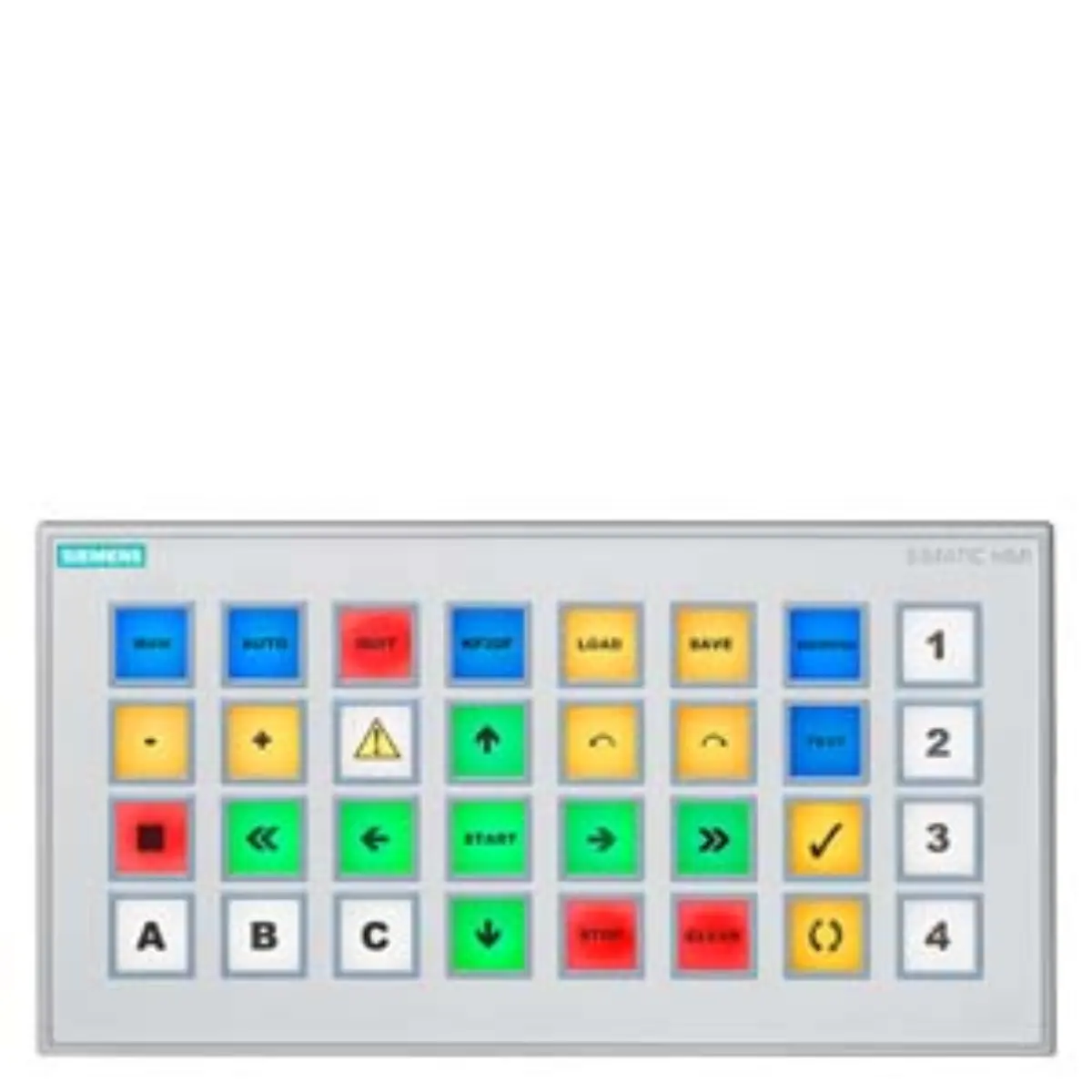

• Front view displays the thirty-two keys arranged in a standard grid pattern. Review Siemens 6AV3688-3EH47-0AX0 as HMI Panels with source category SIMATIC HMI KP8/KP8F/KP32F, recorded lifecycle Active Product, and submitted model identity.
• Multi-colored LEDs are positioned above each key for clear status indication.
• Connection ports for PROFINET and power are located on the rear panel.
• Labeling includes the part number and safety certification marks for identification.

• Verify the exact part number matches the requirement for your project documents. Keep dimensions 46.3 x 33.7 x 13.2 cm and net weight 1.871 Kg unchanged while comparing project documents and product image evidence.
• Confirm that the 24 V DC power supply aligns with site conditions.
• Check if STEP 7 V5.5 software is installed for parameter configuration.
• Review the digital I/O requirements against the sixteen input and output limits.

• Ensure all technical parameters are reviewed before submitting the inquiry form.
• Cross-reference the PROFINET interface requirements with existing network infrastructure plans.
• Document the safety DI pin usage for compliance with safety standards.
• Maintain accurate records of the part number for future reference and tracking.
