6AV2145-8GB01-0AA0 SIMATIC HMI Mobile Panel Details

Part number

6AV2145-8GB01-0AA0

Brand

Siemens

Category

HMI Panels

Product type

Mobile Panels 2nd Generation

Lifecycle

Active Product

Dimensions

31.4 x 23.5 x 13.1 cm

Net weight

1.5 Kg

Source category

Mobile Panels 2nd Generation

• The device features a 7.0-inch TFT display with 800 x 480 pixel resolution. Keep dimensions 31.4 x 23.5 x 13.1 cm and net weight 1.5 Kg unchanged while comparing project documents and product image evidence.
• Color depth is recorded at 16 million colors for clear visual data representation.
• Input methods include both key and touch operation for versatile user interaction.
• Six dedicated function keys provide quick access to common operational commands.
• Two illuminated push-buttons offer additional control options with visual status feedback.
• Connectivity includes one PROFINET/Industrial Ethernet interface for network integration.

• The part number 6AV2145-8GB01-0AA0 uniquely identifies this specific hardware configuration. Use the source path Automation technology / Mobile Panels / Mobile Panels 2nd Generation to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Normalization removes hyphens to form 6AV21458GB010AA0 for database indexing purposes.
• Brand attribution links this unit directly to Siemens automation technology products.
• Category placement confirms its role within the broader HMI panels segment.

Parameters are factual source fields retained for model review.

• Physical dimensions are listed as 31.4 x 23.5 x 13.1 centimeters. Check product-owned images, label text, connector area, and submitted model references against the exact 6AV2145-8GB01-0AA0 record before publication.
• Net weight is recorded at 1.5 kilograms for transport and mounting calculations.
• Interface ports include one multimedia card slot and one USB connection.
• Safety controls feature a key-operated switch and an acknowledgement switch.
• Emergency functions allow configuration of stop buttons via WinCC Comfort V15.

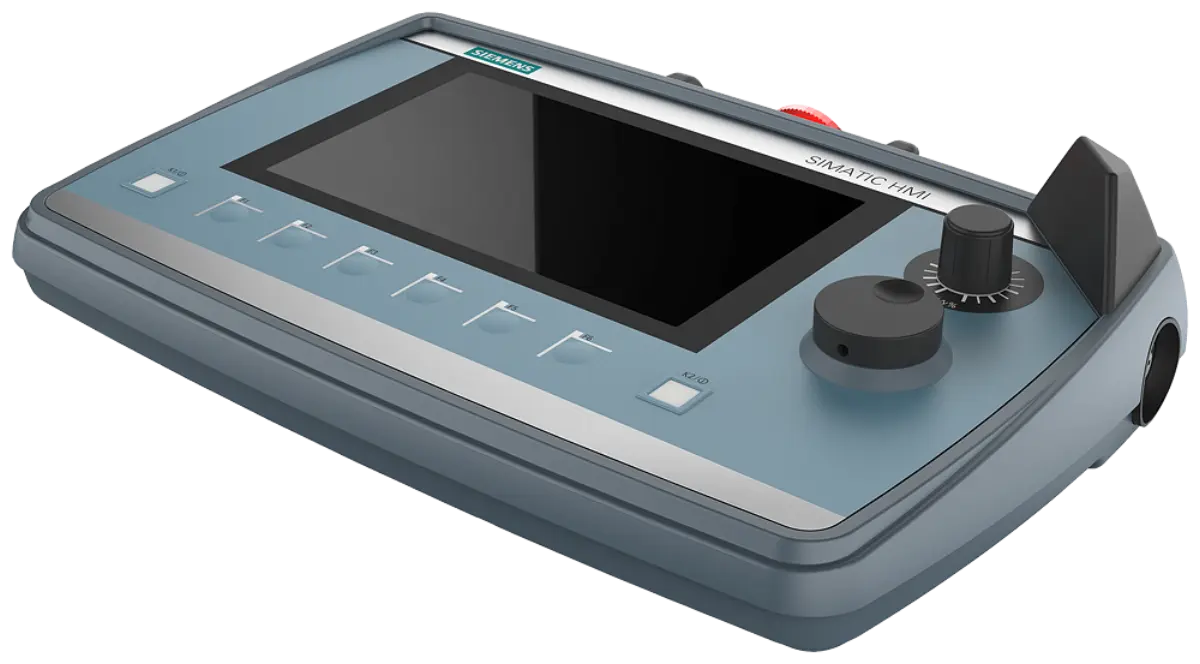

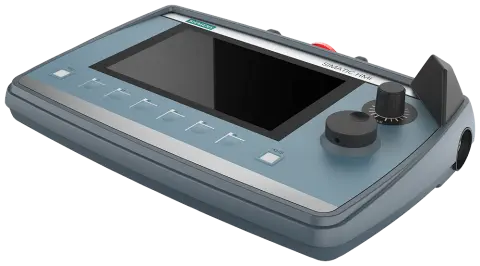

• Visuals typically show the front panel with the 7-inch display screen. Review Siemens 6AV2145-8GB01-0AA0 as Mobile Panels 2nd Generation with source category Mobile Panels 2nd Generation, recorded lifecycle Active Product, and submitted model identity.
• Side views may illustrate the compact depth of 13.1 centimeters.
• Port details highlight the PROFINET and USB connections on the rear.
• Control layout displays the arrangement of keys and illuminated buttons.

• Verify project requirements against the 800 x 480 pixel display specification. Keep dimensions 31.4 x 23.5 x 13.1 cm and net weight 1.5 Kg unchanged while comparing project documents and product image evidence.
• Confirm network infrastructure supports PROFINET/Industrial Ethernet communication protocols.
• Review safety logic for key-operated and emergency stop configurations.
• Assess physical space constraints using the 31.4 x 23.5 cm footprint.

• Source parameter review should confirm the active product lifecycle status. Check product-owned images, label text, connector area, and submitted model references against the exact 6AV2145-8GB01-0AA0 record before publication.
• Project document review ensures alignment with WinCC Comfort V15 capabilities.
• Handwheel and override functionality requires specific configuration during setup.
• Final submission should include all relevant technical constraints for evaluation.
