Siemens 6AV2145-8GB00-0AA0 Mobile Panel Details

Part number

6AV2145-8GB00-0AA0

Brand

Siemens

Category

HMI Panels

Product type

Mobile Panels 2nd Generation

Lifecycle

Active Product

Dimensions

31.3 x 23.5 x 13.1 cm

Net weight

1.83 Kg

Source category

Mobile Panels 2nd Generation

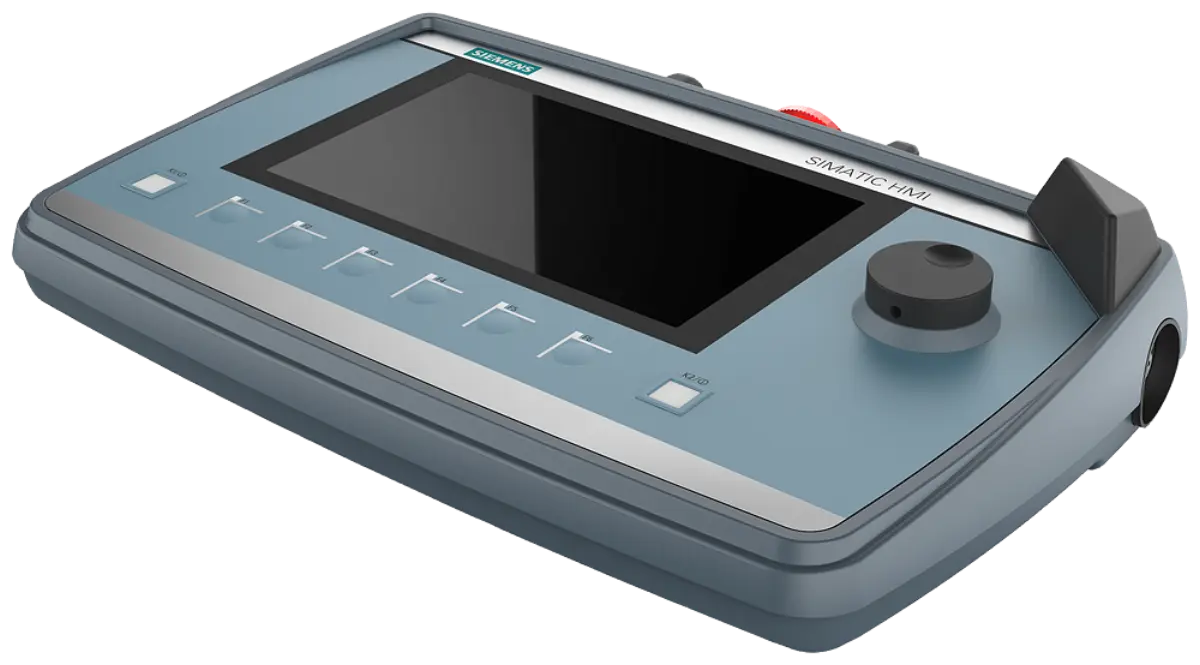

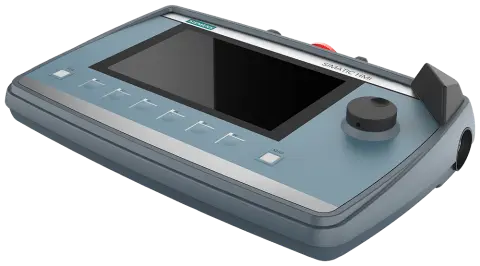

• Display technology utilizes a 7.0-inch TFT screen offering high-resolution visuals for clear operator feedback. Keep dimensions 31.3 x 23.5 x 13.1 cm and net weight 1.83 Kg unchanged while comparing project documents and product image evidence.
• Input methods combine key and touch operation modes, including six function keys and two illuminated push-buttons.
• Connectivity features one PROFINET/Industrial Ethernet interface enabling seamless integration into modern networked automation systems.
• Physical dimensions measure 31.3 x 23.5 x 13.1 cm, ensuring compact fitment on various mobile platforms.
• Net weight is recorded at 1.83 Kg, facilitating easy handling and installation without excessive structural load.
• Multimedia support includes one multimedia card slot and one USB port for data transfer and configuration.

• Part number 6AV2145-8GB00-0AA0 identifies the specific hardware variant within the Siemens product portfolio.
• The normalized part number 6AV21458GB000AA0 removes hyphens for standardized database indexing and search queries.
• Lifecycle status is listed as Active Product, indicating current manufacturing and support review details for new projects.
• Product classification falls under Mobile Panels, distinguishing it from fixed or desktop HMI implementations.

Parameters are factual source fields retained for model review.

• Screen resolution is specified as 800 x 480 pixels, providing adequate detail for graphical process visualization.
• Color depth supports 16 million colors, ensuring accurate representation of alarms, trends, and process data.
• Interface configuration allows programmable assignment of emergency stop, stop, and acknowledgement switches via WinCC Comfort V15.
• Handwheel functionality is included, supporting precise manual control operations for specific mobile machinery applications.
• Key-operated switch adds a security layer for access control within the operator interface environment.

• Visual documentation should highlight the front panel layout, including the display area and physical button arrangement.
• Side views may illustrate the compact depth and mounting points relevant for mobile installation scenarios.
• Connector ports such as PROFINET, USB, and multimedia slots should be clearly visible in technical shots.
• Overall product photography must reflect the industrial-grade build quality and ergonomic design of the unit.

• Verify project requirements against the 7.0-inch display size and resolution limitations before submitting details.
• Confirm PROFINET network application context and IP addressing schemes for seamless integration into existing automation architectures.
• Review WinCC Comfort V15 licensing and configuration needs for customizing the programmable switch assignments.
• Assess physical space constraints using the 31.3 x 23.5 x 13.1 cm dimensions for proper fitment.

• Ensure all technical parameters match the source documentation to maintain accuracy in the inquiry submission.
• Cross-reference the part number 6AV2145-8GB00-0AA0 with internal databases to validate model identification details.
• Check that the lifecycle status remains Active to confirm ongoing support for the requested hardware.
• Validate that the inquiry form captures all necessary contact and project information for accurate processing.
