6AV2145-6KB20-0AS0 SIMATIC HMI Mobile Panel Specifications

Part number

6AV2145-6KB20-0AS0

Brand

Siemens

Category

HMI Panels

Product type

Mobile Panels 2nd Generation

Lifecycle

Active Product

Dimensions

32.2 x 24.5 x 10.3 cm

Net weight

1.774 Kg

Source category

Mobile Panels 2nd Generation

• A 10.0-inch TFT display provides visual output for operator interfaces. The resolution is recorded at 1280 by 800 pixels for clear data presentation.
• Color depth is specified as 16 million colors for detailed graphical representation. Touch operation capabilities enable direct interaction with the displayed control elements.
• Connectivity includes one PROFINET or Industrial Ethernet interface port. This allows network integration within automated production systems for data exchange.
• Physical storage options feature one multimedia card slot for data retention. Additional connectivity is provided via a standard USB interface port.
• Safety controls include a key-operated switch for access management. An acknowledgement button is present for confirming system events or alarms.
• Emergency functions utilize one configurable emergency stop or stop button. Configuration is managed through WinCC Comfort V14 software environment.

• The brand identifier for this specific industrial automation component is Siemens. This designation helps distinguish it from other manufacturer offerings in the market.
• Product type classification lists this item as a Mobile Panel. The second generation label indicates the specific hardware iteration and feature set.
• Lifecycle status is documented as an Active Product. This suggests ongoing support and relevance for current industrial projects requiring this hardware.
• The normalized part number format removes hyphens for database consistency. This ensures accurate matching during technical specification reviews and inquiries.

Parameters are factual source fields retained for model review.

• Overall dimensions are recorded as 32.2 by 24.5 by 10.3 centimeters. These measurements define the physical footprint required for installation spaces.
• Net weight is listed at 1.774 kilograms for transport planning. This mass factor influences handling procedures and mounting bracket selection considerations.
• Display technology utilizes thin-film transistor liquid crystal methods. This technology supports the specified resolution and color depth parameters effectively.
• Interface protocols support PROFINET standards for industrial communication networks. This ensures application context with modern Ethernet-based automation infrastructure requirements.

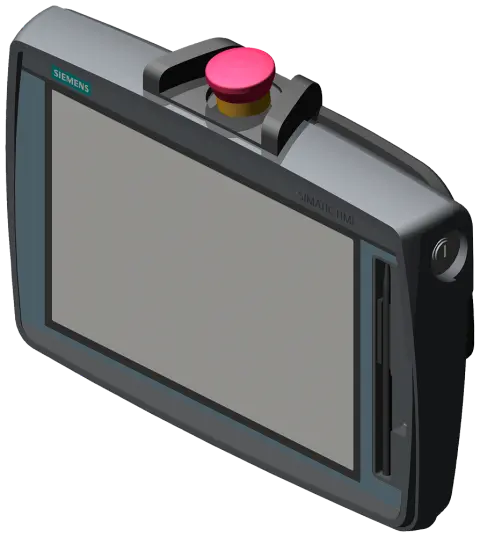

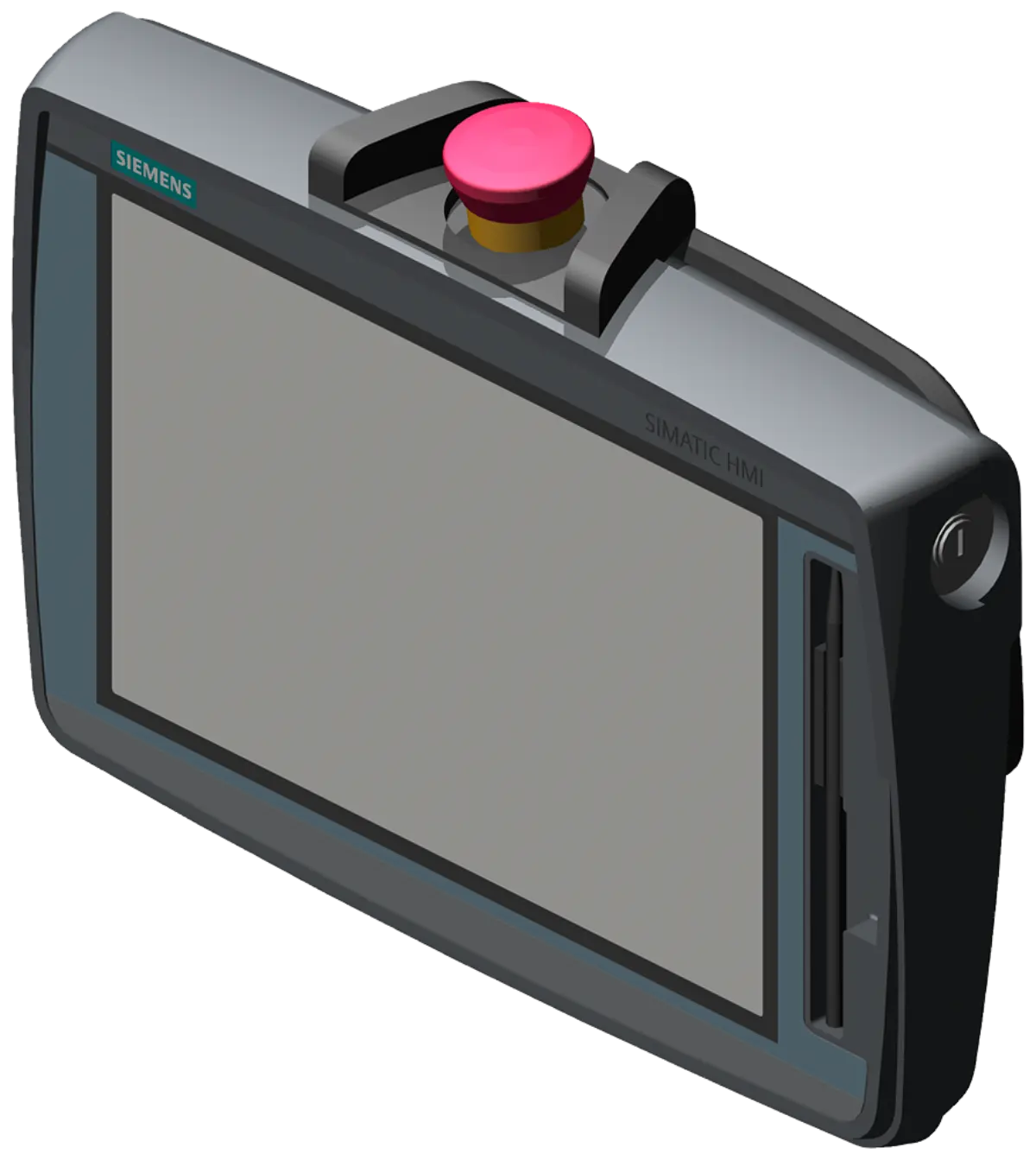

• Visual documentation should show the front panel interface clearly. The 10-inch screen area must be visible for size reference purposes.
• Side views can illustrate the depth and mounting profile. The 10.3 cm depth measurement helps visualize the unit's spatial requirements.
• Port locations for PROFINET and USB should be identifiable. Clear labeling of these connection points aids in technical understanding.
• Control buttons like the emergency stop need distinct visibility. Highlighting these safety features emphasizes their importance in operational contexts.

• Review the submitted model against project technical requirements. Ensure the display size and interface types meet operational needs.
• Verify network application context with existing PROFINET infrastructure. Confirm that the Industrial Ethernet interface aligns with current system architectures.
• Assess physical space constraints for the 32.2 cm width. Check if the 1.774 kg weight fits handling capabilities.
• Confirm software version support for WinCC Comfort V14. Ensure configuration tools are recorded for setting up the emergency stop functions.

• All technical parameters are derived from documented product listings. Users should verify these details against their specific application requirements.
• The part number 6AV2145-6KB20-0AS0 is unique to this configuration. Accurate referencing ensures correct identification during inquiry preparation processes.
• Safety features like the key switch and emergency button are configurable. Proper setup is crucial for compliant industrial operations.
• Network interfaces require correct cabling and protocol settings. Consultation with technical experts may be needed for complex integrations.
