Siemens 6AV2145-6GB06-0AA0 Mobile Panel for Cold Environments

Part number

6AV2145-6GB06-0AA0

Brand

Siemens

Category

HMI Panels

Product type

Mobile Panels for low-temperature environment

Lifecycle

Active Product

Dimensions

315.00 x 245.00 x 95.00 mm

Net weight

1.3 Kg

Source category

Mobile Panels for low-temperature environment

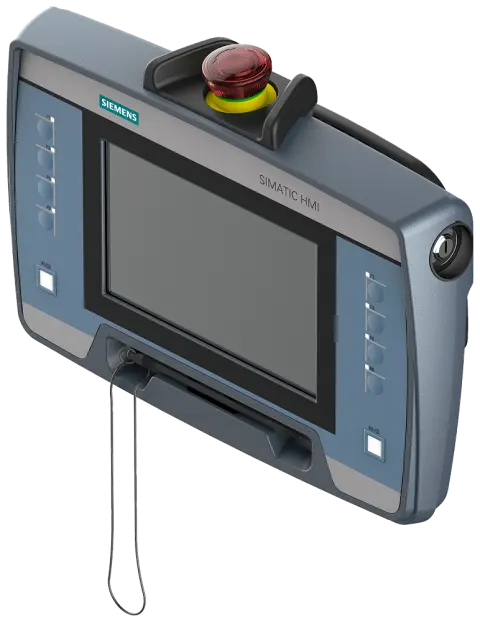

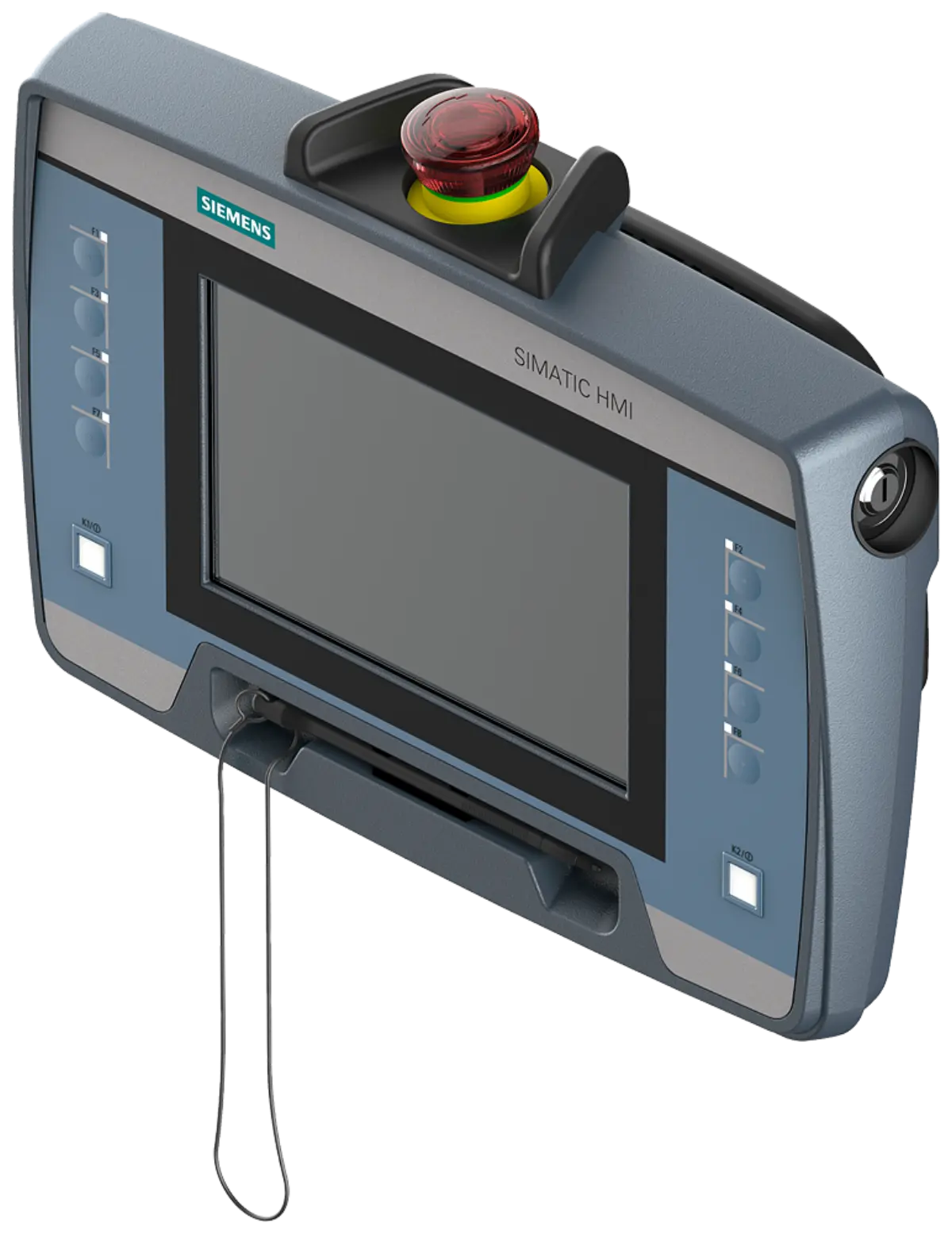

• A 7.0-inch TFT display provides visual feedback with a resolution of 800 by 480 pixels for clear data presentation.
• The screen supports sixteen million colors, ensuring high contrast and readability for complex graphical user interfaces in various lighting conditions.
• Operation combines tactile keys with capacitive touch input, offering dual methods for user interaction and navigation within the HMI application.
• Eight dedicated function keys allow quick access to common commands, streamlining operator workflows and reducing the need for deep menu navigation.
• Connectivity includes one PROFINET and Industrial Ethernet interface, enabling seamless integration into modern industrial networks for real-time data exchange.
• Physical dimensions measure 315.00 by 245.00 by 95.00 millimeters, with a net weight of 1.3 kilograms for portable deployment scenarios.

• The part number 6AV2145-6GB06-0AA0 uniquely identifies this specific variant within the SIMATIC HMI product family structure.
• Normalization of the part number removes hyphens, resulting in 6AV21456GB060AA0 for consistent database indexing and search retrieval processes.
• This model belongs to the KTP series, indicating its classification as a mobile panel rather than a fixed installation unit.
• The suffix indicates specific hardware revisions and regional compliance standards recorded in the manufacturer's documented product documentation archives.

Parameters are factual source fields retained for model review.

• Extended operating temperature ranges are a critical specification for this unit, allowing functionality in harsh, cold industrial environments.
• Multimedia card support enables storage expansion for additional graphics, videos, or data logging files directly on the panel device.
• USB connectivity facilitates easy firmware updates, data transfer, and peripheral connection options for enhanced operational flexibility and maintenance.
• Included accessories such as a touch pen and keyswitch add layers of security and precision for specific operational tasks.
• Emergency shutdown and stop buttons are integrated into the front panel, providing immediate safety controls for critical machine operations.

• Visual inspection should confirm the presence of the 7.0-inch display area and the surrounding protective bezel structure.
• Check that all described physical ports, including PROFINET and USB connections, are visible and undamaged in product imagery.
• Verify the layout of the eight function keys and the placement of the emergency stop button against technical drawings.
• Ensure the overall dimensions match the recorded 315.00 x 245.00 x 95.00 mm specification for proper mounting planning.

• Review the submitted model against project requirements to ensure the extended temperature range meets environmental specifications.
• Confirm that the PROFINET interface aligns with existing network infrastructure and communication protocols used in the facility.
• Evaluate the need for additional accessories like the touch pen or multimedia card based on specific operational workflows.
• Prepare detailed configuration files from WinCC Comfort V15 SP1 to streamline the setup process upon receipt of the unit.

• Source parameter review confirms the active status of the product, ensuring ongoing support and documentation review details for users.
• Configuration notes indicate application context with WinCC Comfort V15 SP1, which is essential for programming and runtime management.
• Physical specifications such as weight and dimensions are critical for logistics planning and ergonomic workstation design considerations.
• Safety features like the emergency stop button must be verified during installation to ensure compliance with local regulations.
