Siemens 6AV2144-8MC20-0AA0 TP1200 Comfort INOX Panel Details

Part number

6AV2144-8MC20-0AA0

Brand

Siemens

Category

HMI Panels

Product type

Comfort Panels INOX and INOX PCT

Lifecycle

Phase Out Announce

Dimensions

50.9 x 36.2 x 14.6 cm

Net weight

5.228 Kg

Source category

Comfort Panels INOX and INOX PCT

• Display technology utilizes a 12-inch widescreen TFT screen providing clear visual feedback for complex machine operations and process monitoring tasks in automated settings.
• Connectivity options include a dedicated PROFINET interface alongside MPI and PROFIBUS DP interfaces, allowing flexible integration into various network architectures and control systems.
• Internal configuration memory is recorded at 12 MB, sufficient for storing detailed project data, graphics, and scripts required for comprehensive human-machine interface functions.
• Operating system foundation is based on Windows CE 6.0, which supports standard configuration tools like WinCC Comfort V15 for programming and parameterization activities.
• Physical dimensions are listed as 50.9 x 36.2 x 14.6 cm, ensuring standard mounting application context within control cabinets or wall-mounted operator stations.
• Net weight is documented at 5.228 Kg, reflecting the substantial build quality associated with stainless steel construction and reinforced internal components for longevity.

• Product classification identifies this unit as a SIMATIC HMI TP1200 Comfort variant, specifically tailored for INOX applications involving stainless steel fronts.
• Lifecycle status is currently noted as Phase Out Announce, indicating that while the model remains defined, future production or support may transition to newer alternatives.
• Brand attribution clearly links the hardware to Siemens, a recognized entity in automation technology providing standardized industrial control solutions and components.
• Category placement falls under HMI Panels, specifically within the sub-segment of Comfort Panels INOX and INOX PCT for specialized environmental requirements.

Parameters are factual source fields retained for model review.

• Review the submitted model against project requirements to ensure the 12 MB memory capacity meets the complexity of your intended visualization tasks.
• Verify that the PROFINET and PROFIBUS DP interfaces align with your existing network infrastructure and communication protocol standards for seamless integration.
• Confirm that the IP69K front protection rating satisfies the cleaning and washdown procedures necessary for your specific operational environment and hygiene needs.
• Check the Windows CE 6.0 platform constraints, noting that Microsoft security updates have been discontinued, which may impact long-term software maintenance strategies.
• Assess the physical footprint of 50.9 x 36.2 x 14.6 cm to ensure adequate space allocation within your control panel design or mounting location.

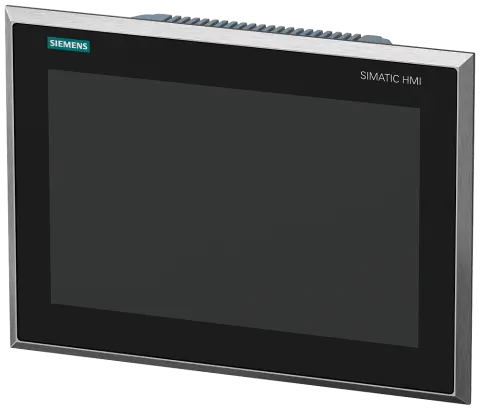

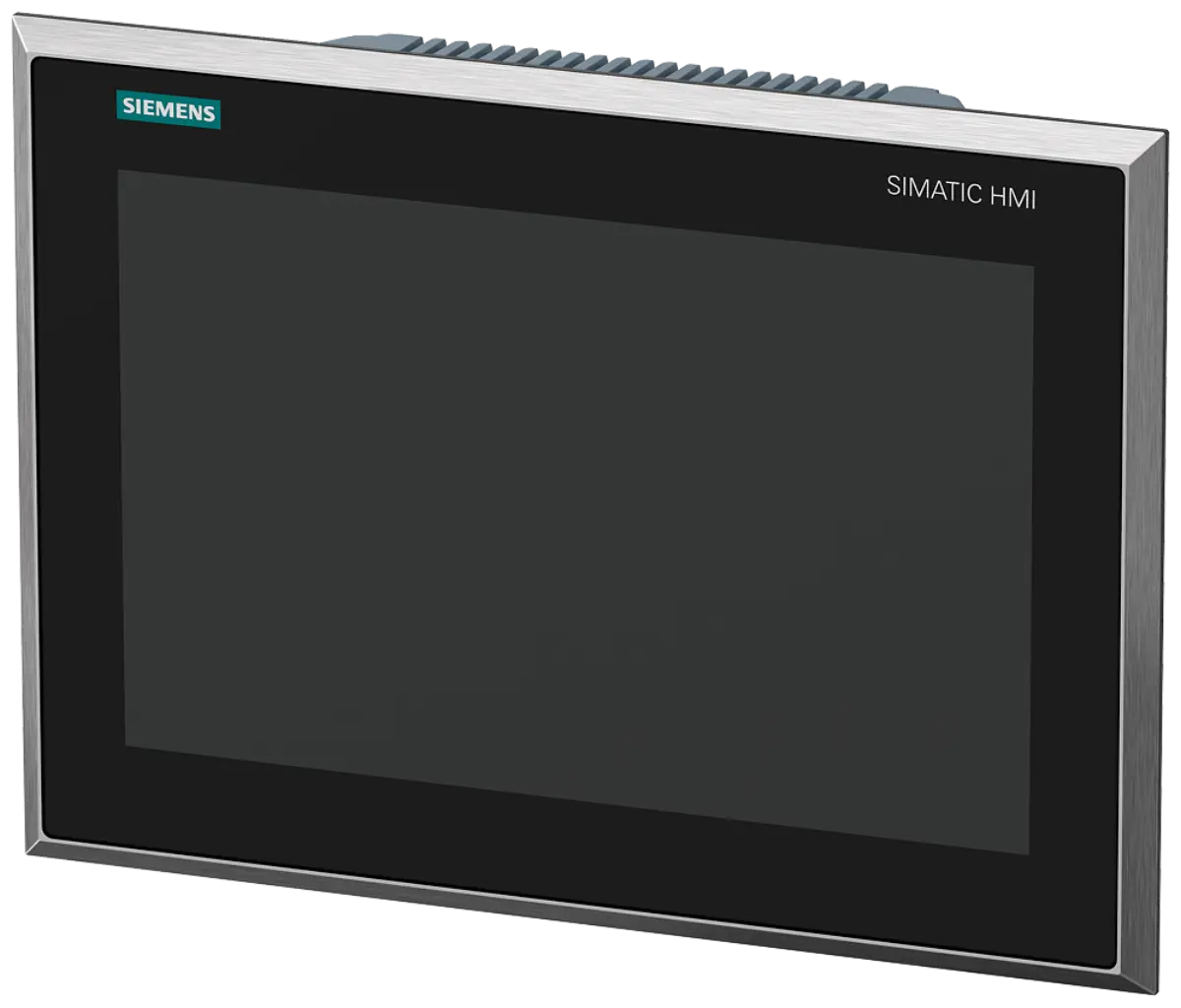

• Visual inspection should confirm the presence of the stainless steel front panel, which is characteristic of the INOX series for corrosion resistance.
• Examine the glass pane surface for clarity and integrity, ensuring it supports the capacitive touch functionality without physical obstructions or damage.
• Note the 12-inch widescreen aspect ratio, which provides enhanced horizontal space for displaying detailed process graphics and alarm lists effectively.
• Identify the port locations for PROFINET and PROFIBUS connections, verifying their accessibility and suitability for cable routing in tight installation spaces.

• Gather all relevant project documentation specifying the need for INOX-rated panels to justify the selection of this particular stainless steel model variant.
• Prepare details regarding your current network topology to demonstrate how the PROFINET and PROFIBUS interfaces will integrate with your PLC systems.
• Document any specific hygiene or cleaning protocols in place to validate the requirement for the IP69K protection degree on the front housing.
• Compile technical requirements related to memory usage and display size to ensure the 12 MB capacity and 12-inch screen meet your visualization needs.

• Source parameter review indicates the device is part of a phase-out announcement, necessitating careful consideration for long-term project sustainability.
• Configuration memory of 12 MB should be evaluated against the size of graphics and scripts planned for deployment in the final application.
• Operating system version Windows CE 6.0 requires awareness of its end-of-support status from Microsoft regarding security updates and future application context.
• Physical specifications including weight and dimensions must be cross-referenced with mechanical drawings to ensure proper fit within the designated installation area.
