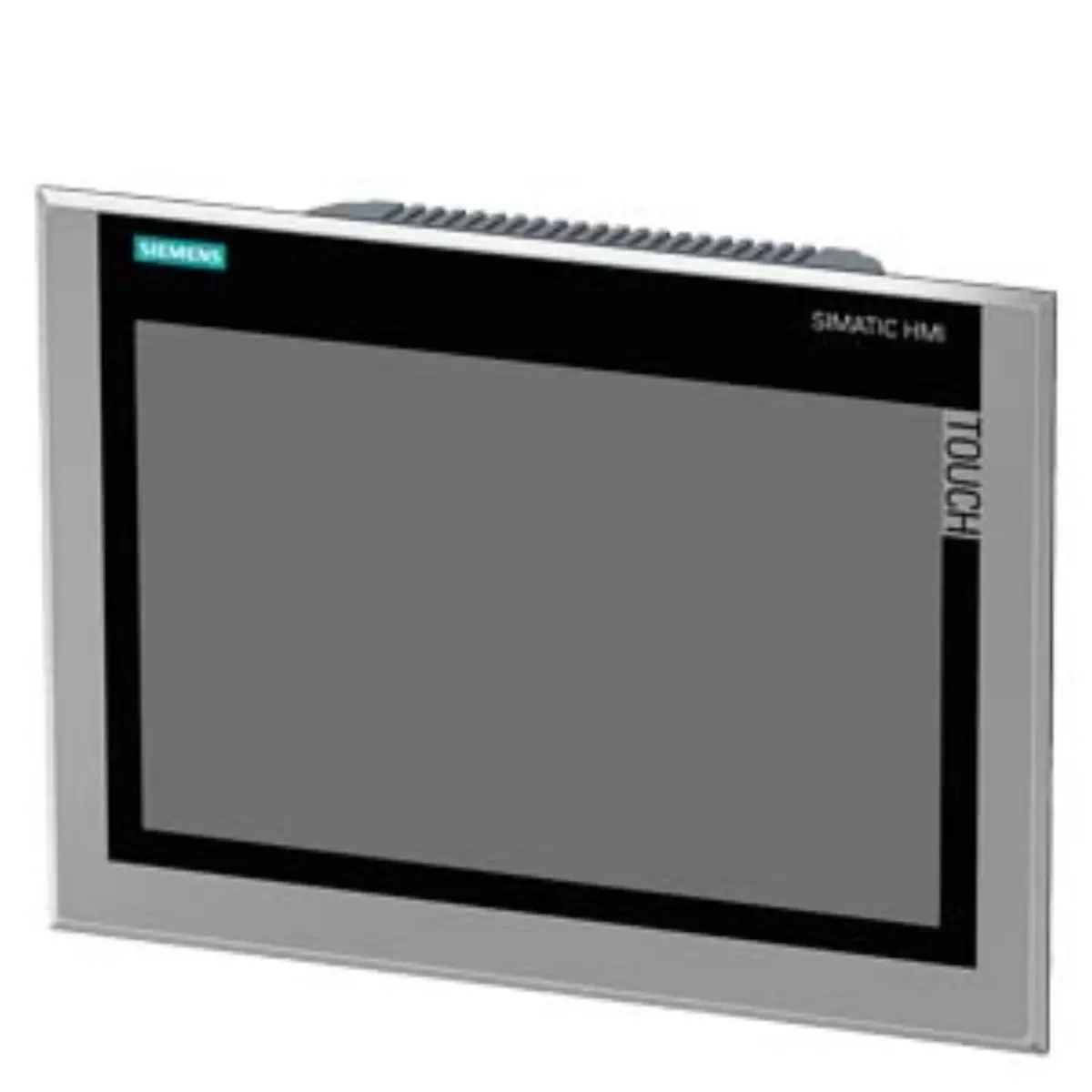

Siemens 6AV2144-8MC10-0AC0 TP1200 Comfort INOX Panel Details

Part number

6AV2144-8MC10-0AC0

Brand

Siemens

Category

HMI Panels

Product type

Comfort Panels INOX and INOX PCT

Lifecycle

Phase Out Announce

Dimensions

53.00 x 41.00 x 18.00 cm

Net weight

5.06 Kg

Source category

Comfort Panels INOX and INOX PCT

• The display unit utilizes a 12-inch widescreen TFT screen for clear visual representation of process data. Keep dimensions 53.00 x 41.00 x 18.00 cm and net weight 5.06 Kg unchanged while comparing project documents and product image evidence.
• Connectivity options include a dedicated PROFINET interface for modern network integration in automated environments.
• An MPI/PROFIBUS DP interface is also present, allowing connection to legacy communication protocols.
• The device contains 12 MB of configuration memory to store project data and runtime information.
• Operating software is based on Windows CE 6.0, which supports specific Microsoft security updates.
• Configuration tasks can be performed using WinCC Comfort V11 software on engineering stations.

• The part number 6AV2144-8MC10-0AC0 identifies the specific variant within the TP1200 Comfort series.
• The INOX designation indicates the use of stainless steel materials for the front panel construction.
• The Long suffix suggests extended physical dimensions compared to standard compact panel configurations.
• The product class field remains empty in the source data, requiring direct part number verification.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 53.00 cm in length, 41.00 cm in width, and 18.00 cm in depth.
• The net weight of the unit is listed as 5.06 kilograms for shipping and mounting calculations.
• The front of the device offers a degree of protection rated at IP66K against dust and water.
• The source category path places this item under Automation technology and Comfort Panels sections.
• Security updates for the underlying Windows CE 6.0 operating system have been discontinued by the vendor.

• Visual documentation should highlight the stainless steel finish characteristic of the INOX series models.
• The 12-inch widescreen display area must be clearly visible in any product imagery provided.
• Port locations for PROFINET and MPI/PROFIBUS interfaces should be identifiable in detailed view shots.
• The continuous decorative film texture on the front panel is a key visual identification feature.

• Review the submitted model number to ensure it matches the required INOX long format specifications.
• Verify that the PROFINET interface meets the network infrastructure requirements of the target project site.
• Confirm that WinCC Comfort V11 is the correct configuration tool for the existing engineering environment.
• Check project documents for any specific IP66K protection needs related to the installation environment.

• Source parameter review confirms the physical weight and dimension data align with standard TP1200 specs.
• Lifecycle status indicates a Phase Out Announce, suggesting careful consideration for new installations.
• Project document review should address the discontinuation of Microsoft support for the embedded OS.
• Technical summary points provide a complete basis for initial engineering assessment and inquiry drafting.
