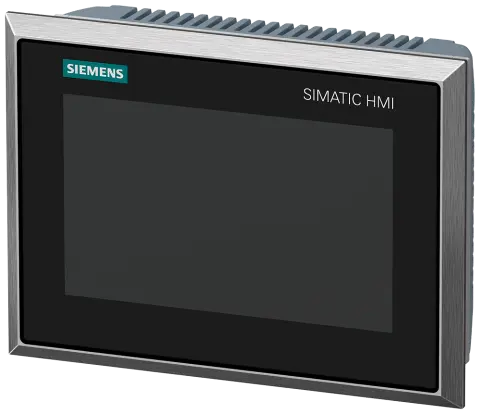

Siemens 6AV2144-8GC20-0AA0 TP700 Comfort INOX Panel

Part number

6AV2144-8GC20-0AA0

Brand

Siemens

Category

HMI Panels

Product type

Comfort Panels INOX and INOX PCT

Lifecycle

Phase Out Announce

Dimensions

28.2 x 19.2 x 11.3 cm

Net weight

2.783 Kg

Source category

Comfort Panels INOX and INOX PCT

• Features a 7-inch widescreen TFT display providing clear visual feedback for operational monitoring and control interactions within automated systems.
• Incorporates a capacitive touch screen interface that allows for precise input commands and responsive user interaction during complex machinery operations.
• Supports PROFINET interface connectivity enabling fast Ethernet-based communication for real-time data exchange between the HMI and PLC controllers.
• Includes MPI/PROFIBUS DP interface capabilities allowing integration with legacy systems and standard industrial fieldbus networks for flexible deployment options.
• Contains 12 MB of configuration memory sufficient for storing project data and runtime information for various industrial automation applications.
• Runs on Windows CE 6.0 operating system ensuring stable performance and application context with WinCC Comfort V15.1 software solutions.

• Identified as part of the SIMATIC HMI TP700 Comfort series specifically tailored for INOX applications in food and beverage sectors.
• The product class designation indicates a specialized variant focusing on corrosion resistance and ease of cleaning for sanitary environments.
• Lifecycle status is recorded as Phase Out Announce, signaling potential future transitions in product review details and support structures.
• Brand attribution confirms origin from Siemens, a recognized leader in industrial automation technology and control system manufacturing.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded at 28.2 x 19.2 x 11.3 cm, defining the spatial footprint required for panel mounting installations.
• Net weight is listed as 2.783 Kg, contributing to load calculations for structural supports and enclosure design considerations.
• Display size specification highlights a 7-inch format which balances screen real estate with compact housing requirements for operator stations.
• Protection degree front IP69K indicates resistance to high-pressure, high-temperature water jets listed for rigorous cleaning procedures.

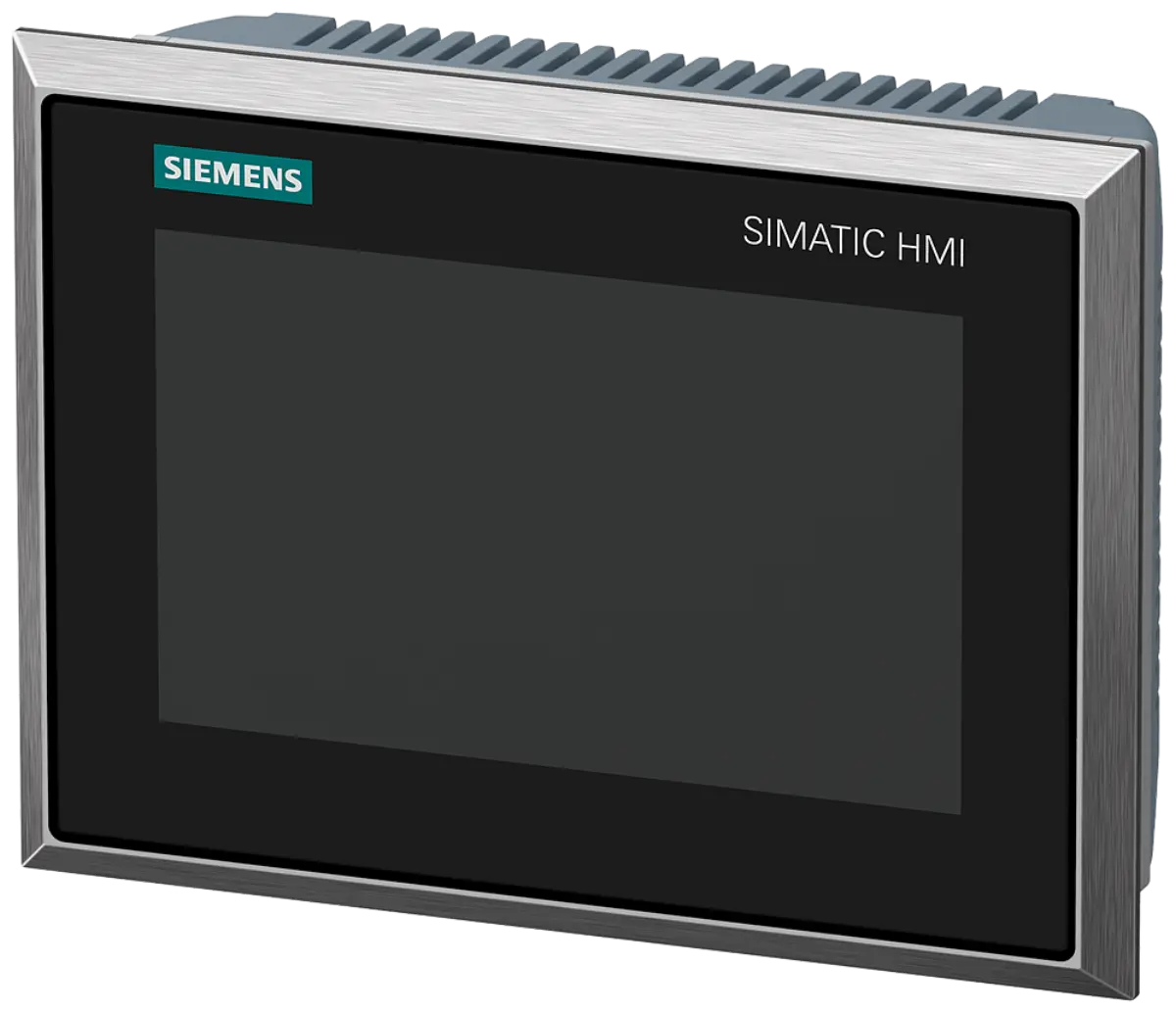

• Visual documentation typically showcases the stainless steel front panel emphasizing the material quality and industrial aesthetic design elements.
• Screen imagery displays the 7-inch widescreen TFT interface illustrating the capacitive touch functionality and graphical user layout.
• Connection ports visualization may highlight PROFINET and MPI/PROFIBUS DP interfaces indicating the communication capabilities for system integration.
• Dimensional diagrams often accompany product images to assist engineers in verifying physical fitment within existing control cabinet spaces.

• Review the submitted model number 6AV2144-8GC20-0AA0 to ensure alignment with specific project technical requirements and environmental constraints.
• Verify the phase-out status implications for long-term maintenance planning and potential migration strategies for ongoing operations.
• Confirm interface application context with existing PROFINET or PROFIBUS DP networks to ensure seamless integration into current automation architectures.
• Assess physical mounting space against the recorded dimensions of 28.2 x 19.2 x 11.3 cm for proper installation planning.

• Source parameter review confirms the technical specifications align with standard industrial HMI requirements for robustness and connectivity.
• Project document review should address the phase-out announcement to evaluate lifecycle management and future-proofing strategies.
• Technical summary validation ensures all key features like IP69K protection and capacitive touch are correctly interpreted for selection.
• Final assessment recommends verifying network protocol support and physical dimensions before proceeding with detailed engineering design phases.
