6AV2144-8GC10-0AA0 SIMATIC HMI TP700 Comfort INOX

Part number

6AV2144-8GC10-0AA0

Brand

Siemens

Category

HMI Panels

Product type

Comfort Panels INOX and INOX PCT

Lifecycle

Phase Out Announce

Dimensions

27.5 x 19.5 x 11.2 cm

Net weight

2.028 Kg

Source category

Comfort Panels INOX and INOX PCT

• Display technology centers on a 7-inch widescreen TFT screen providing clear visual feedback for operational data and system status indicators.
• Connectivity options include a dedicated PROFINET interface alongside MPI and PROFIBUS DP interfaces for versatile network integration capabilities.
• The physical enclosure features a stainless steel front plate, ensuring resistance to corrosion and harsh chemical exposure in processing areas.
• Protection standards meet the IP66K rating for the front surface, offering high defense against powerful water jets and dust ingress.
• Internal memory capacity is recorded at 12 MB, sufficient for storing configuration data and runtime information for standard applications.
• Operating system foundation relies on Windows CE 6.0, providing a stable platform for executing configured visualization and control logic tasks.

• Product classification identifies this unit as part of the SIMATIC HMI Comfort Panels series within the INOX product line.
• The specific model designation TP700 indicates a 7-inch touch panel variant optimized for compact installation spaces and direct operator interaction.
• Material specification highlights the INOX variant, distinguishing it from standard plastic enclosures by utilizing stainless steel for enhanced longevity.
• Lifecycle status is currently listed as Phase Out Announce, indicating a transition period for this specific hardware configuration in production schedules.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 27.5 cm in width, 19.5 cm in height, and 11.2 cm in depth for mounting planning.
• Net weight is specified at 2.028 kg, a factor to consider when evaluating structural support requirements for panel installations.
• Configuration software application context is noted with WinCC Comfort V11, allowing engineers to develop and download project files to the device.
• Security update support for the underlying operating system has been discontinued, requiring careful assessment of network security protocols for deployment.
• The continuous decorative film on the front surface contributes to both aesthetic consistency and ease of cleaning in sanitary environments.

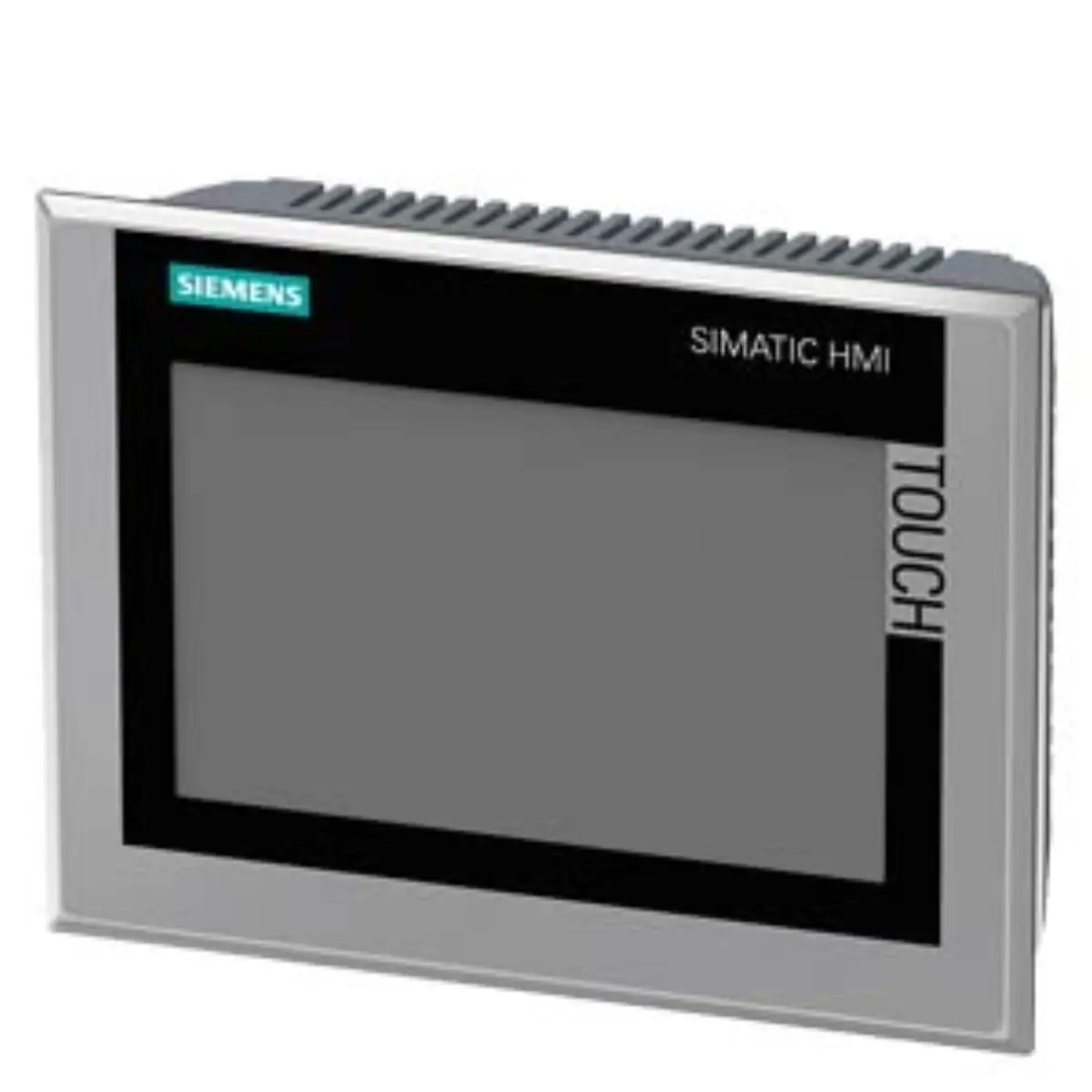

• Visual documentation should capture the stainless steel front plate texture and the integrated touch-sensitive display area clearly.
• Side profile images help verify the depth dimension and the mounting flange structure essential for secure panel installation procedures.
• Connector ports on the rear or side edges must be visible to confirm interface types including PROFINET and PROFIBUS connections.
• Labeling details on the chassis provide critical identification markers that match the part number for accurate inventory and inquiry processing.

• Review project documentation to confirm that the 7-inch display size meets the operator interface requirements for the intended application.
• Verify network infrastructure application context with PROFINET and PROFIBUS DP protocols to ensure seamless integration into existing automation architectures.
• Assess environmental conditions to determine if the IP66K rating and stainless steel construction adequately address corrosion and cleaning needs.
• Consult engineering teams regarding the implications of the Windows CE 6.0 end-of-support status for long-term security compliance.

• Confirm the exact part number matches the inquiry requirements to avoid confusion with similar models in the TP series lineup.
• Check if the phase-out status impacts long-term maintenance strategies or necessitates consideration of alternative future-proof hardware solutions.
• Ensure that the configuration memory size aligns with the complexity of the visualization projects planned for this specific panel unit.
• Validate that the physical mounting dimensions fit within the designated control cabinet or panel space allocated for this installation.
