6AV2128-3UB57-1BX0 SIMATIC HMI MTP1900 PRO Panel

Part number

6AV2128-3UB57-1BX0

Brand

Siemens

Category

HMI Panels

Product type

SIMATIC HMI MTP1900 PRO, for supporting foot (expandable, flange at bottom), neutral front, 18

Lifecycle

Active Product

Dimensions

62.5 x 40.00 x 14.5 cm

Net weight

8.46 Kg

Source category

SIMATIC HMI Unified Comfort Panel PRO

• Display technology utilizes a widescreen TFT panel providing high-resolution visuals for complex operational data presentation.
• Color depth capability reaches 16 million colors, ensuring accurate representation of graphical elements and status indicators.
• Communication interface is based on PROFINET protocol, facilitating fast and reliable data exchange within Ethernet networks.
• Physical dimensions are recorded as 62.5 cm in width, 40.00 cm in height, and 14.5 cm in depth.
• Net weight of the unit is listed at 8.46 Kg, indicating substantial build quality for industrial durability.
• Software configuration requires WinCC Unified Comfort version 18 or later for full functionality and parameter setup.

• Brand designation is clearly marked as Siemens, reflecting established engineering standards in industrial control systems.
• Product line classification falls under the SIMATIC HMI Unified Comfort Panel PRO series for advanced applications.
• Model identifier 6AV2128-3UB57-1BX0 specifies the exact configuration including screen size and interface type.
• Lifecycle status is currently Active Product, indicating ongoing support and review details for new project implementations.

Parameters are factual source fields retained for model review.

• Mounting style includes provisions for a supporting foot, allowing for flexible positioning on workbenches or stands.
• Expandability feature enables connection to additional modules or units, enhancing system scalability for larger operations.
• Flange placement at the bottom facilitates secure attachment to standard DIN rail or panel cutouts.
• Neutral front finish provides a versatile aesthetic that blends well with diverse industrial control room designs.
• Open-source software components are included, offering transparency and potential customization options for specific project requirements.

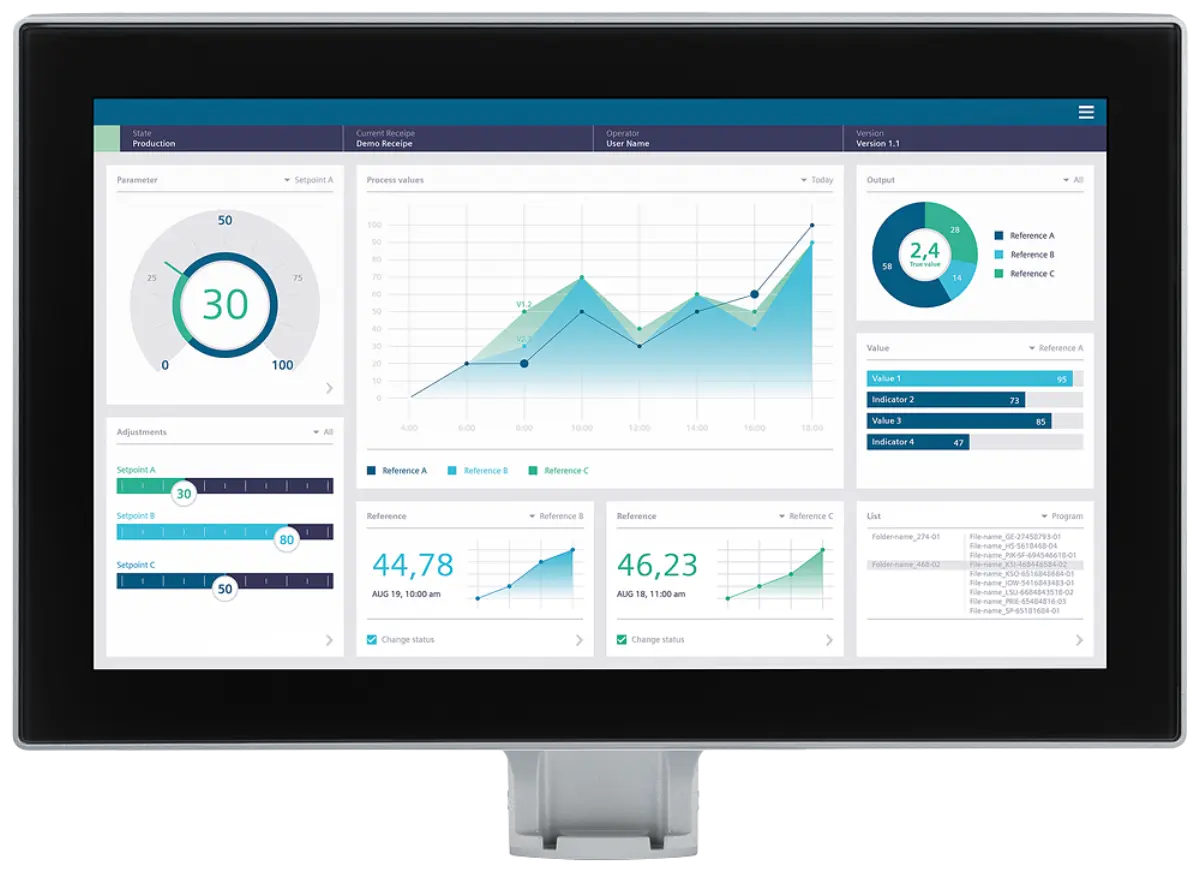

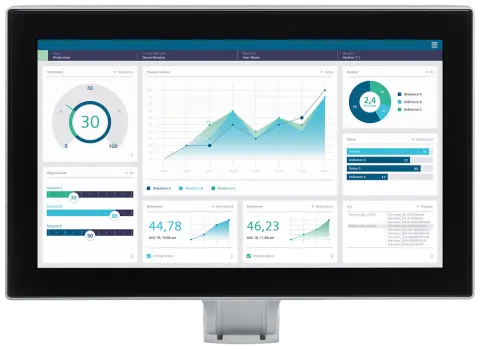

• Visual documentation should highlight the 18.5-inch screen area to emphasize display size and clarity.
