6AV2128-3QB57-0AX0 SIMATIC HMI MTP1500 PRO Panel Details

Part number

6AV2128-3QB57-0AX0

Brand

Siemens

Category

HMI Panels

Product type

SIMATIC HMI MTP1500 PRO, for support arm (not expandable, flange on top), neutral front, 15

Lifecycle

Active Product

Dimensions

468.00 x 335.00 x 144.00 mm

Net weight

6.901 Kg

Source category

SIMATIC HMI Unified Comfort Panel PRO

• Display technology utilizes a 15.6-inch widescreen TFT panel with high color depth resolution for clear visualization.
• Connectivity is established via a PROFINET interface, allowing for standard industrial Ethernet communication protocols.
• Physical dimensions are recorded as 468.00 mm width by 335.00 mm height with a depth of 144.00 mm.
• Net weight is listed at 6.901 Kg, indicating the mass of the unit without packaging materials.
• Software configuration requires WinCC Unified Comfort V18 or later versions for proper setup and operation.
• The unit contains open-source software components which are provided free of charge within the package.

• Part number 6AV2128-3QB57-0AX0 identifies the specific variant of the SIMATIC HMI MTP1500 PRO series.
• The designation MTP1500 PRO indicates compliance with Machine Tool Protocol standards for machine tool applications.
• Configuration notes specify this unit is intended for support arm mounting rather than direct wall installation.
• The model is explicitly listed as not expandable, featuring a flange located on the top side.

Parameters are factual source fields retained for model review.

• Source parameters confirm the presence of a neutral front design listed for custom labeling or branding.
• Lifecycle status is documented as Active Product, meaning the item remains in current production cycles.
• Category classification places this device within the SIMATIC HMI Unified Comfort Panel PRO segment.
• Interface type is verified as PROFINET, ensuring application context with modern industrial network infrastructure requirements.
• Display size is fixed at 15 inches diagonal, providing adequate screen real estate for complex HMI tasks.

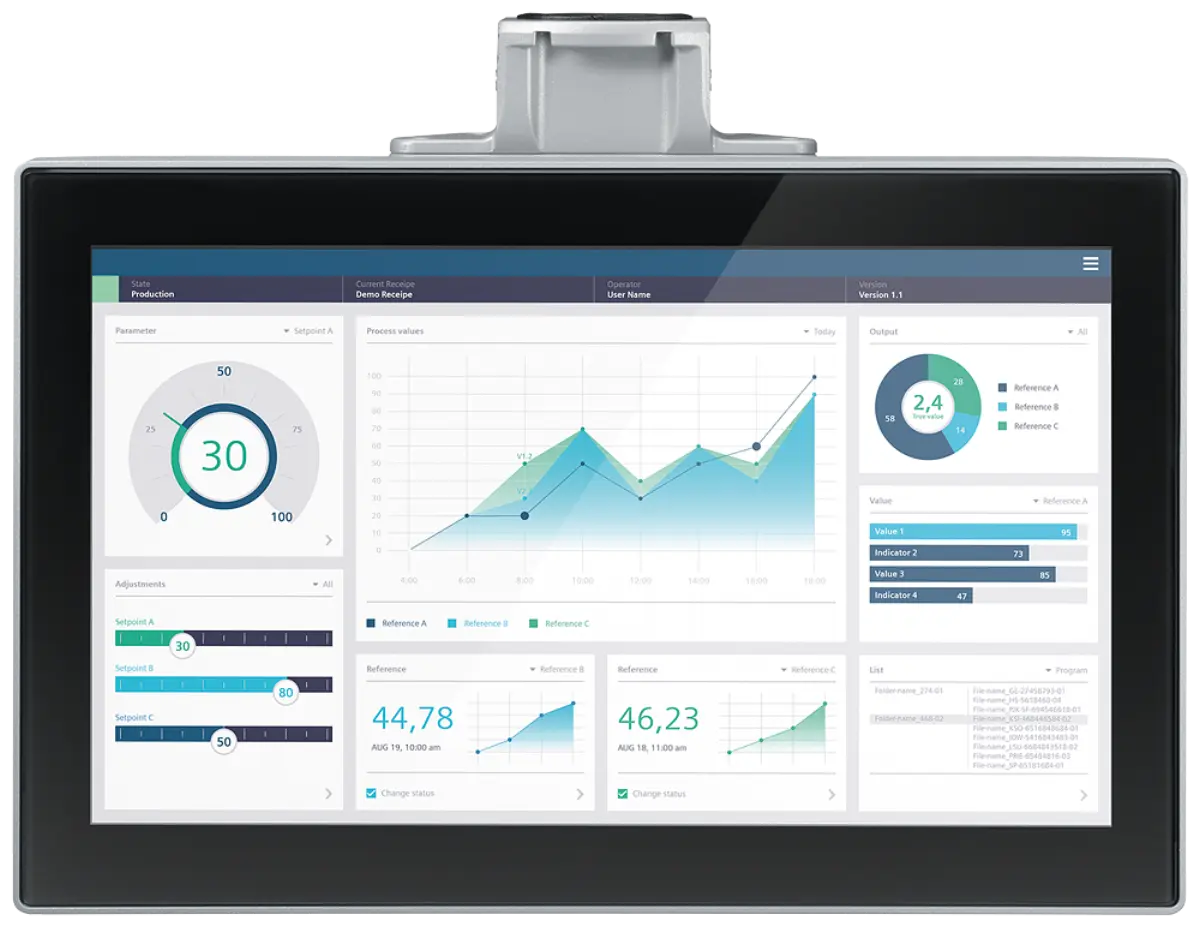

• Visual references typically show the front face of the panel with the neutral bezel design intact.
• Side profiles may illustrate the depth and the top flange structure used for support arm attachment.
• Rear views often highlight the PROFINET port location and mounting holes for secure mechanical installation.
• Dimensional diagrams accompany images to assist engineers in verifying spatial requirements for control cabinet layouts.

• Review project documents to ensure the 15.6-inch display size meets the operator station space constraints.
• Verify that the PROFINET interface aligns with the existing network infrastructure and switch configurations.
• Confirm that WinCC Unified Comfort V18 software licenses are recorded for the initial system configuration phase.
• Check mechanical drawings to validate the support arm mounting points against the unit's top flange design.

• All technical data is sourced directly from manufacturer specifications for the 6AV2128-3QB57-0AX0 model.
• Users should cross-reference physical dimensions with their specific control panel designs before initiating inquiry preparation.
• Software requirements must be evaluated to ensure the necessary WinCC versions are installed on engineering stations.
• Inquiries should focus on technical clarification rather than commercial terms, as per standard information gathering practices.
