6AV2128-3QB27-0AX0 SIMATIC HMI MTP1500 PRO Panel Details

Part number

6AV2128-3QB27-0AX0

Brand

Siemens

Category

HMI Panels

Product type

SIMATIC HMI MTP1500 PRO, for support arm (not expandable, flange on top), 15

Lifecycle

Active Product

Dimensions

468.00 x 335.00 x 144.00 mm

Net weight

6.894 Kg

Source category

SIMATIC HMI Unified Comfort Panel PRO

• Display technology utilizes a 15.6-inch widescreen TFT panel providing high-resolution visual output for operator interaction. Keep dimensions 468.00 x 335.00 x 144.00 mm and net weight 6.894 Kg unchanged while comparing project documents and product image evidence.
• Color depth is specified at 16 million colors, ensuring accurate representation of graphical elements and data.
• Connectivity relies on a PROFINET interface, facilitating fast and reliable communication within industrial Ethernet networks.
• Physical dimensions are recorded as 468.00 x 335.00 x 144.00 mm, defining the spatial requirements for installation.
• Net weight is listed at 6.894 Kg, which assists in planning mounting structures and support mechanisms.
• Software configuration requires WinCC Unified Comfort V18, allowing for flexible setup and parameter adjustment.

• The part number 6AV2128-3QB27-0AX0 uniquely identifies this specific variant within the Siemens SIMATIC product portfolio.
• This model is designated as the MTP1500 PRO, indicating its classification within the professional HMI range.
• The device is noted as not expandable, meaning it functions as a standalone unit without additional modules.
• Mounting configuration includes a flange on top, specifically designed for support arm attachment during installation.

Parameters are factual source fields retained for model review.

• Source parameter review indicates the lifecycle status is Active Product, confirming current manufacturing and support review details.
• Category classification places this unit within the broader scope of SIMATIC HMI Unified Comfort Panels.
• Sub-category listing specifies the SIMATIC HMI Unified Comfort Panel PRO line for precise identification purposes.
• Open-source software components are included, provided free of charge as part of the standard package.
• Interface type is confirmed as PROFINET, aligning with modern industrial communication standards and requirements.

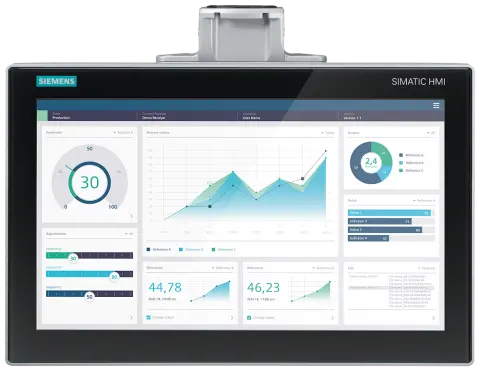

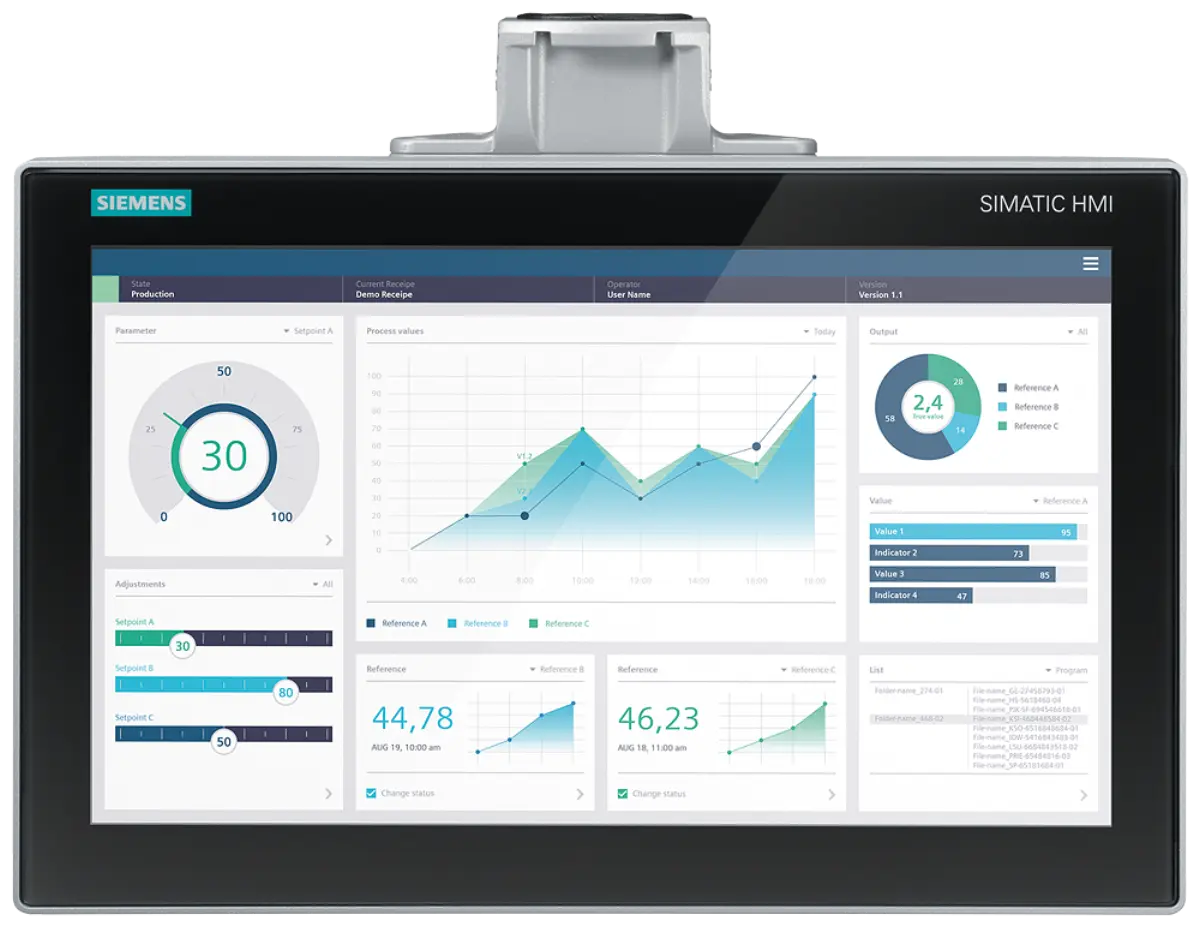

• Visual inspection confirms the presence of a 15.6-inch display area within the defined physical housing.
• The front panel design incorporates the necessary connectors and interface points for PROTONET connectivity.
• Mounting flanges are visible on the top edge, consistent with the support arm attachment specification.
• Overall build quality reflects the industrial-grade standards expected from the Siemens SIMATIC product family.

• Review the submitted model number 6AV2128-3QB27-0AX0 to ensure alignment with your specific project requirements.
• Verify that your control system supports PROFINET interfaces for seamless integration with this HMI unit.
• Confirm that WinCC Unified Comfort V18 or a application context version is recorded for software configuration.
• Assess physical space constraints against the recorded dimensions of 468.00 x 335.00 x 144.00 mm.

• All technical data presented is derived directly from the manufacturer's published specifications for this part.
• Users are advised to cross-reference these details with their own engineering documentation before proceeding.
• Inquiries should focus on technical clarification rather than commercial terms or inquiry preparation logistics.
• This page serves as a reference point for identifying the correct Siemens automation component model.
