Siemens 6AV2128-3MB57-1BX0 SIMATIC HMI MTP1200 PRO Panel Details

Part number

6AV2128-3MB57-1BX0

Brand

Siemens

Category

HMI Panels

Product type

SIMATIC HMI MTP1200 PRO, for supporting foot (expandable, flange at bottom), neutral front, 12

Lifecycle

Active Product

Dimensions

39.9 x 30.4 x 13.1 cm

Net weight

5.976 Kg

Source category

SIMATIC HMI Unified Comfort Panel PRO

• Display technology utilizes a 12.1-inch widescreen TFT panel with high color depth capabilities for clear visual data representation.
• Communication interface is established via PROFINET, enabling network connectivity for modern industrial automation architectures and data exchange.
• Physical dimensions are recorded as 39.9 x 30.4 x 13.1 cm, providing spatial planning data for control cabinet or panel layouts.
• Net weight is listed as 5.976 Kg, assisting engineers in calculating load requirements for mounting structures and supporting feet.

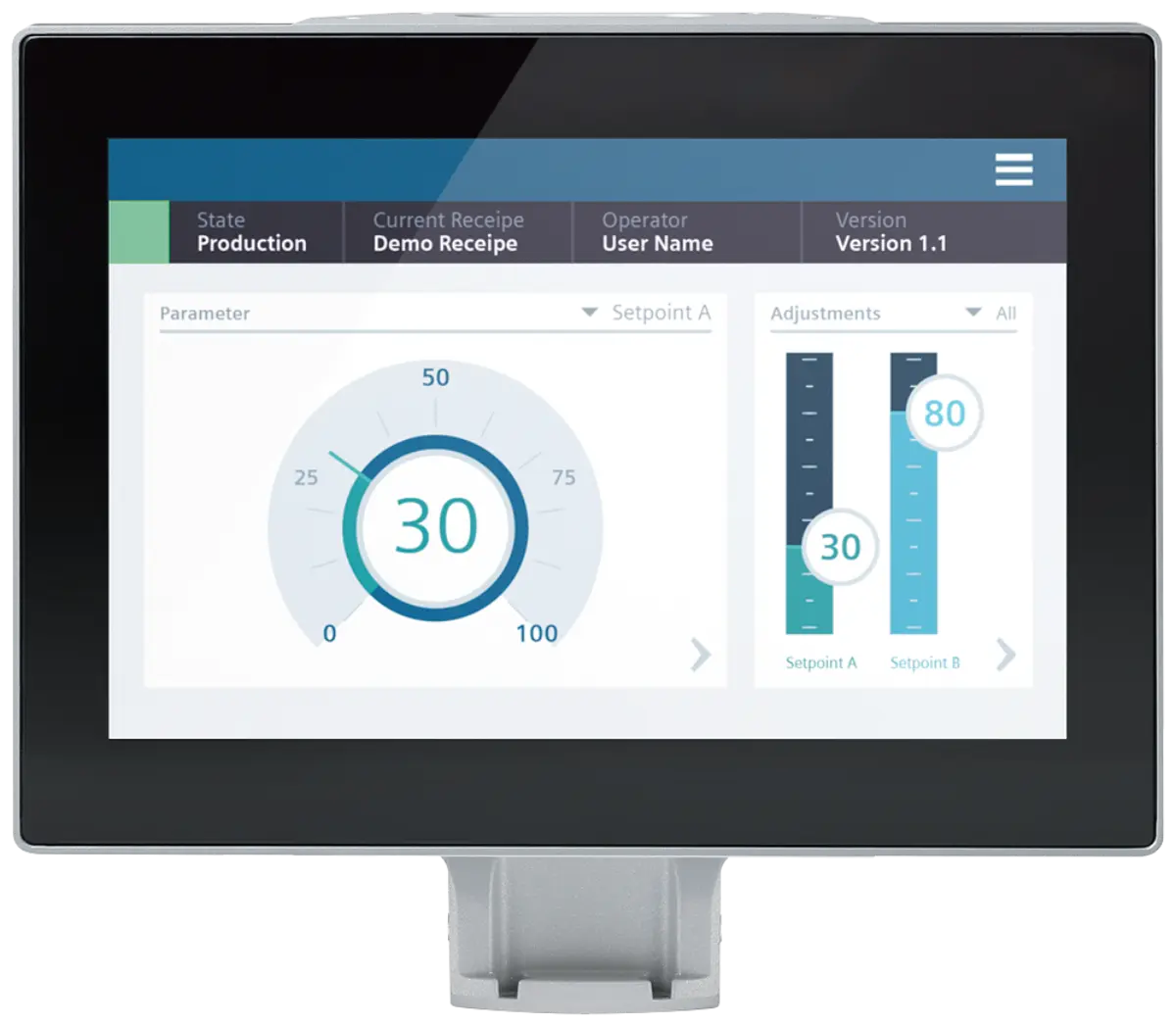

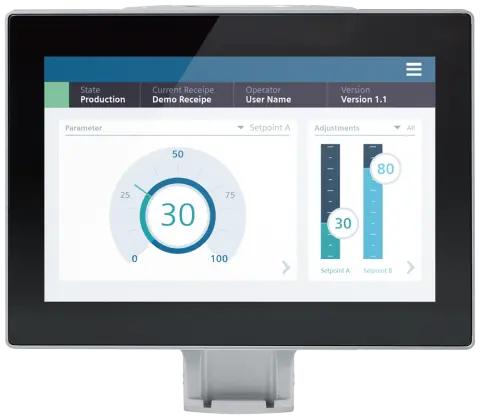

• Support structure includes an expandable supporting foot with a flange at the bottom for stable positioning on flat surfaces.
• Software configuration requires WinCC Unified Comfort V18 or later versions to fully utilize the panel's operational features and interfaces.

• Brand designation is confirmed as Siemens, aligning with the broader SIMATIC family of industrial automation hardware components.
• Product type is identified as SIMATIC HMI MTP1200 PRO, indicating specific functionality within the Unified Comfort Panel line.
• The model suffix 6AV2128-3MB57-1BX0 serves as the unique identifier for inquiry preparation documentation and technical reference searches.
• Lifecycle status is marked as Active Product, suggesting ongoing production support and technical documentation review details for new implementations.
