Siemens 6AV2128-3MB57-0BX0 SIMATIC HMI MTP1200 PRO Inquiry

Part number

6AV2128-3MB57-0BX0

Brand

Siemens

Category

HMI Panels

Product type

SIMATIC HMI MTP1200 PRO, for support arm (expandable, round pipe) and Extension Unit, neutral front, 12

Lifecycle

Active Product

Dimensions

39.9 x 30.4 x 13.1 cm

Net weight

6.045 Kg

Source category

SIMATIC HMI Unified Comfort Panel PRO

• Display technology utilizes a 12.1-inch widescreen TFT panel providing high-resolution visual feedback for operators in demanding industrial settings.
• Color depth is specified at 16 million colors, ensuring accurate representation of graphical elements and status indicators on the screen.
• Connectivity is established via a PROFINET interface, allowing for fast and deterministic communication within modern Ethernet-based automation networks.
• Software configuration requires WinCC Unified Comfort version 18 or later to properly initialize and manage the panel's operational parameters.
• The unit incorporates open-source software components that are provided free of charge, supporting flexible customization and integration efforts.
• Physical construction includes a neutral front design, facilitating easy cleaning and maintenance while maintaining a professional aesthetic in control rooms.

• The part number 6AV2128-3MB57-0BX0 uniquely identifies this specific variant of the SIMATIC HMI MTP1200 PRO series.
• Normalization of the part number removes hyphens for database indexing purposes, resulting in the string 6AV21283MB570BX0.
• Lifecycle status is recorded as Active Product, indicating ongoing manufacturing and support review details for new project implementations.
• Category classification places this item under HMI Panels, specifically within the broader SIMATIC HMI product family structure.

Parameters are factual source fields retained for model review.

• Overall dimensions are recorded as 39.9 cm in width, 30.4 cm in height, and 13.1 cm in depth for spatial planning.
• Net weight is listed at 6.045 Kg, which is a critical factor for calculating load requirements on support structures.
• Mounting options include support for expandable round pipes, allowing for flexible positioning on support arms or extension units.
• Screen size is confirmed as 12.1 inches, providing a substantial viewing area for complex graphical user interfaces and data visualization.
• Interface type is defined as PROFINET, ensuring application context with standard industrial Ethernet protocols used in modern automation architectures.

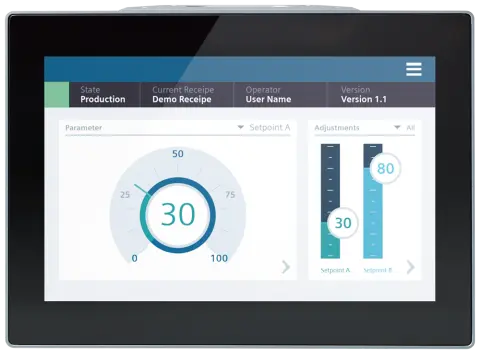

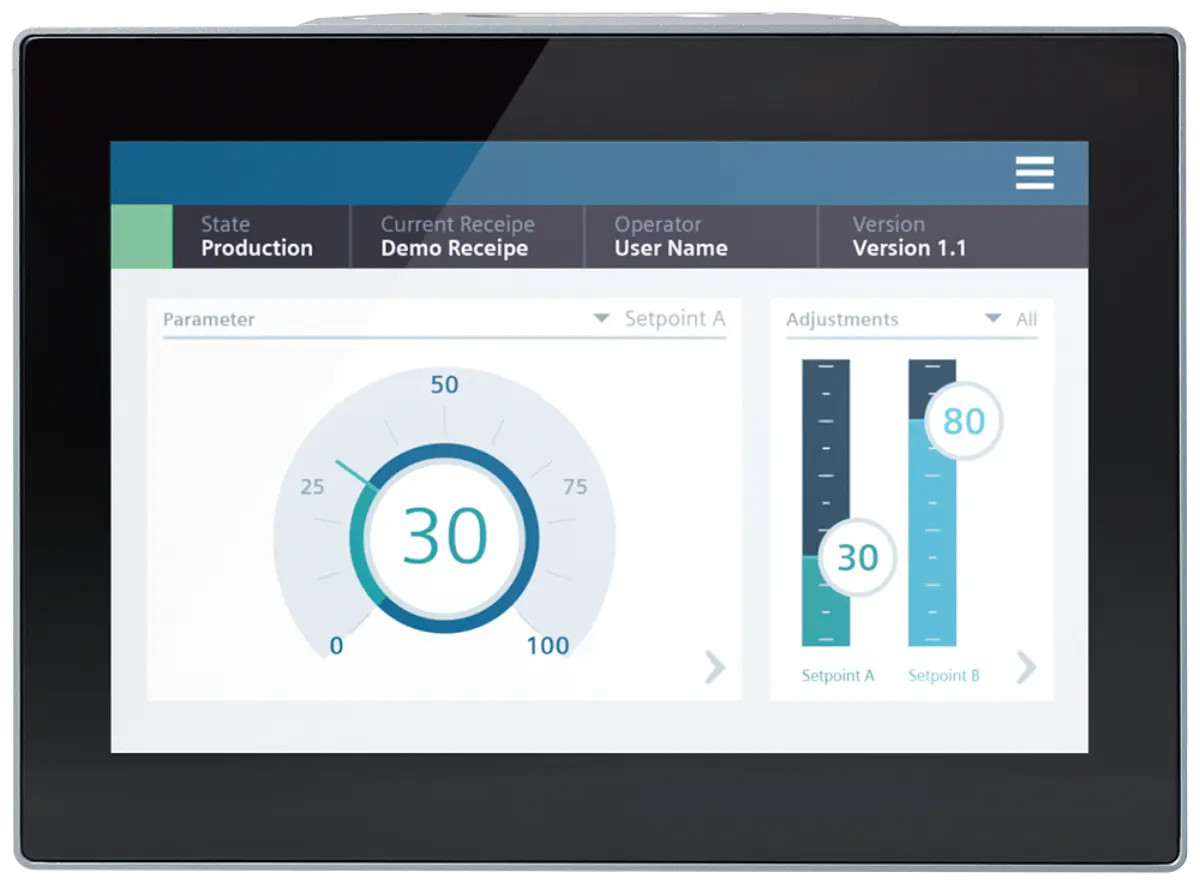

• Visual documentation should highlight the neutral front panel design, which lacks branding to allow for custom labeling if needed.
