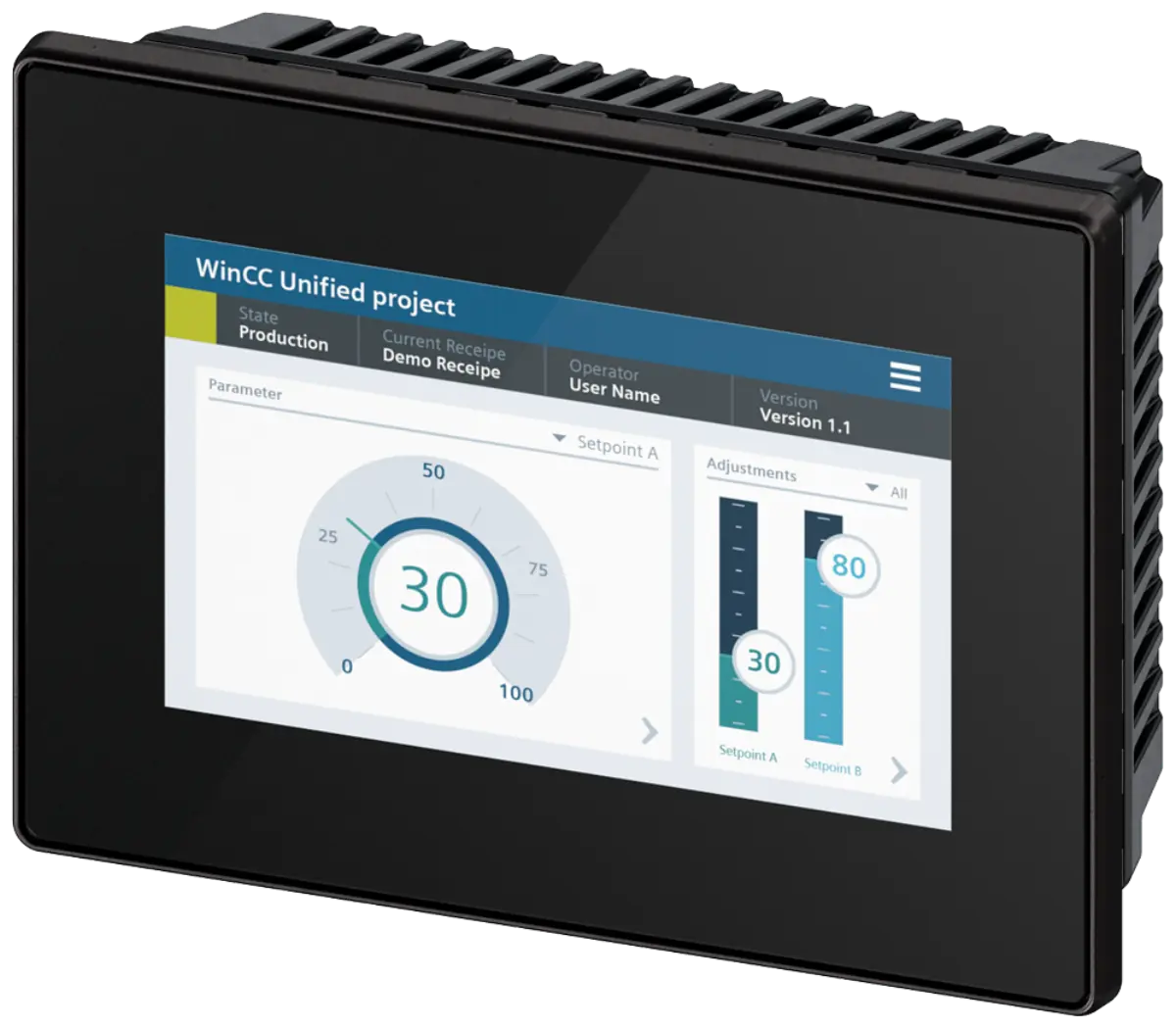

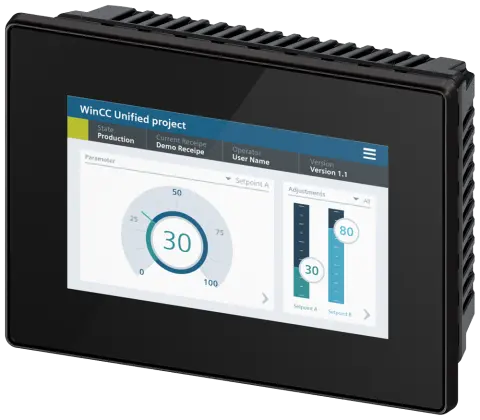

6AV2128-3GB36-0AX1 SIMATIC HMI MTP700 Panel Details

Part number

6AV2128-3GB36-0AX1

Brand

Siemens

Category

HMI Panels

Product type

HMI Panels

Lifecycle

Active Product

Dimensions

26.9 x 19.7 x 11.8 cm

Net weight

1.717 Kg

Source category

SIMATIC HMI Unified Comfort Panels Standard

• Display technology utilizes a 7-inch widescreen TFT panel providing high-resolution visual output for detailed process monitoring tasks.
• Color depth is recorded at 16 million colors, ensuring accurate representation of graphical elements and status indicators on the screen.
• Connectivity is established via a PROFINET interface, enabling communication with SIMATIC controllers and other networked devices in the automation environment.
• The unit supports configuration starting from WinCC Unified Comfort V16, allowing for flexible software integration and project development workflows.
• Physical dimensions are listed as 26.9 x 19.7 x 11.8 cm, providing a compact form factor listed for various panel mounting scenarios.
• Net weight is documented at 1.717 Kg, contributing to the overall mass considerations for installation structures and mechanical support systems.

• The brand identifier for this component is Siemens, a recognized manufacturer in the industrial automation and digitalization industry.
• Product classification places this item under the broader category of HMI Panels, specifically focusing on operator interface solutions.
• Lifecycle status is recorded as Active Product, indicating ongoing production or support status within the manufacturer's portfolio.
• Source categorization links this unit to SIMATIC HMI Unified Comfort Panels and the Standard sub-segment for reference purposes.
