Siemens 6AV2125-2JB23-0AX0 Mobile Panel Details

Part number

6AV2125-2JB23-0AX0

Brand

Siemens

Category

HMI Panels

Product type

Mobile Panels 2nd Generation

Lifecycle

Active Product

Dimensions

32.1 x 24.5 x 10.3 cm

Net weight

1.716 Kg

Source category

Mobile Panels 2nd Generation

• Display technology utilizes a 9.0-inch TFT screen with 800x480 pixel resolution and 16 million color depth. Keep dimensions 32.1 x 24.5 x 10.3 cm and net weight 1.716 Kg unchanged while comparing project documents and product image evidence.
• Input methods combine key operation with touch functionality, supported by ten dedicated function keys for quick access.
• Connectivity includes one PROFINET/Industrial Ethernet interface enabling robust network communication within automated industrial systems.
• Storage expansion is facilitated through one multimedia card slot allowing for data logging or application storage needs.
• Physical interfaces feature one USB port for peripheral connection and configuration purposes during maintenance or setup phases.
• Safety controls incorporate a key-operated switch, an acknowledgement button, and one configurable emergency stop/stop button.

• Part number 6AV2125-2JB23-0AX0 identifies this specific model within the Siemens SIMATIC HMI product portfolio.
• The product class is categorized under Mobile Panels, specifically representing the second generation of this hardware line.
• Lifecycle status is recorded as Active Product, indicating current manufacturing and support review details for new projects.
• Brand attribution confirms this unit originates from Siemens, a recognized manufacturer in industrial automation technologies.

Parameters are factual source fields retained for model review.

• Physical dimensions are listed as 32.1 cm in width, 24.5 cm in height, and 10.3 cm in depth.
• Net weight is documented at 1.716 kilograms, reflecting the mass of the unit excluding packaging materials.
• Software application context requires WinCC Comfort V13 SP1 or later versions for full configuration and button mapping.
• Interface count includes one PROFINET port, one USB port, and one multimedia card slot for expansion.

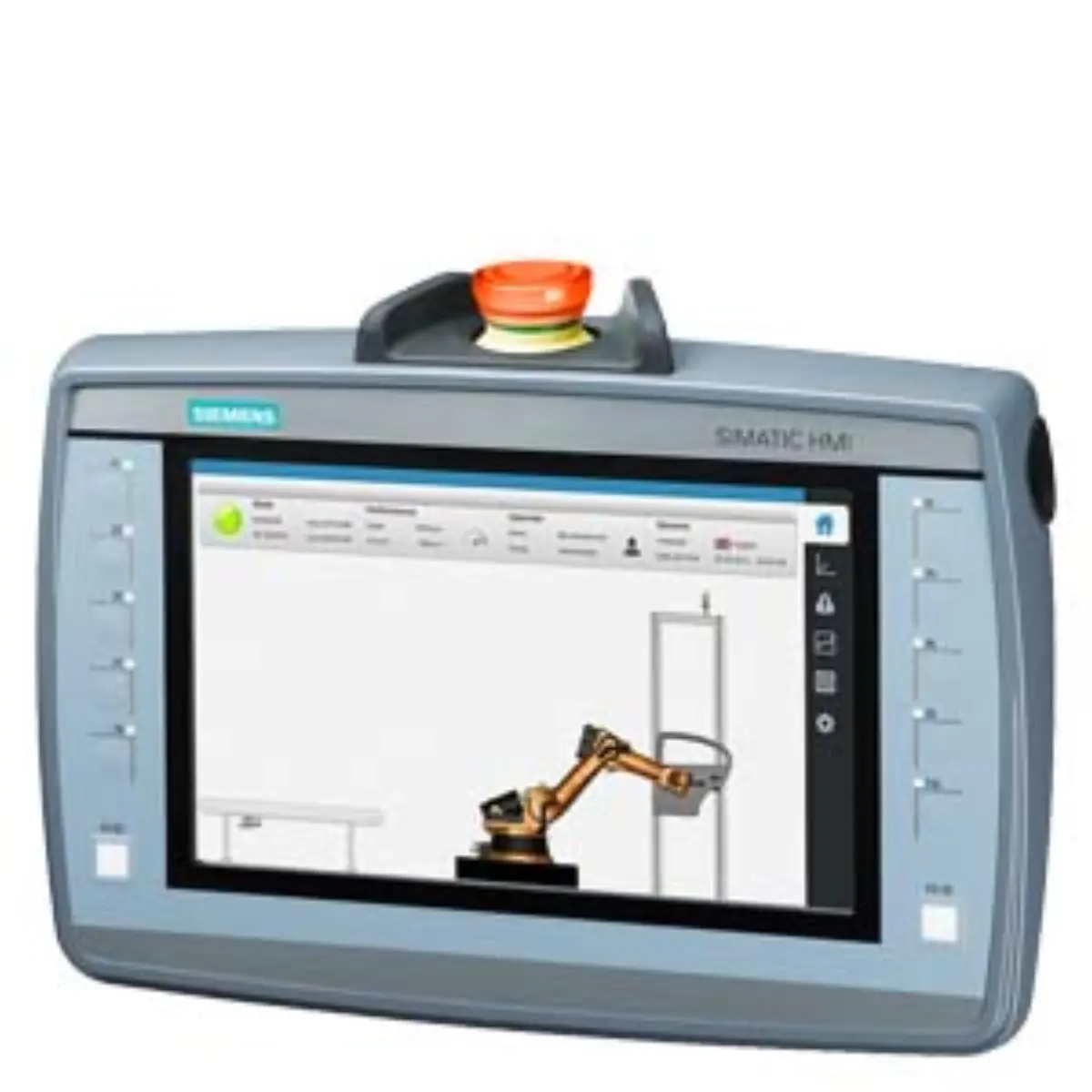

• Visual documentation should highlight the front panel layout including the touchscreen area and physical key arrangement.
