6AV2124-2DC01-0AX0 SIMATIC HMI KTP400 Comfort Panel

Part number

6AV2124-2DC01-0AX0

Brand

Siemens

Category

HMI Panels

Product type

HMI Panels

Lifecycle

Phase Out Announce

Dimensions

20.1 x 13.1 x 6.8 cm

Net weight

0.67 Kg

• The display module utilizes a 4-inch widescreen TFT screen technology. This screen renders images in 16 million distinct color variations for clear visualization.
• Configuration tasks for this panel are performed using WinCC Comfort V11 software. The system requires approximately 4 MB of configuration memory for project storage.
• Operating system details indicate the use of Windows CE 6.0 for internal processes. This environment supports the standard HMI functions required for machine monitoring.
• Physical dimensions are recorded as 20.1 cm by 13.1 cm by 6.8 cm. These measurements define the spatial footprint required for panel mounting installations.
• The net weight of the unit is specified at 0.67 kilograms. This mass factor is relevant for logistics planning and structural support calculations during installation.
• Communication interfaces include both PROFINET and PROFIBUS DP connections. These ports facilitate data exchange with PLCs and other automated control systems.

• The part number 6AV2124-2DC01-0AX0 uniquely identifies this specific KTP400 Comfort variant. Users should verify this code against their project documentation.
• Lifecycle status is currently noted as Phase Out Announce. This designation indicates that the manufacturer has initiated discontinuation procedures for this model.
• Brand attribution links this hardware to Siemens industrial automation products. The SIMATIC HMI line represents a established series of operator interface devices.
• Product classification places this item firmly within the HMI Panels segment. This categorization helps in organizing inventory and technical reference materials.

Parameters are factual source fields retained for model review.

• Screen size is fixed at 4 inches for the visual output area. This dimension influences the amount of on-screen information visible to operators simultaneously.
• Color depth capability reaches 16 million colors for graphical elements. High color fidelity aids in distinguishing different states and alarms within the interface.
• Memory allocation for configuration data stands at 4 MB capacity. This limit constrains the complexity of graphics and scripts that can be embedded.
• Interface types support both PROFINET and MPI/PROFIBUS DP standards. Dual protocol support allows flexibility in connecting to various controller architectures.
• Operating system version is Windows CE 6.0 for runtime execution. This OS version provides stability and application context with older WinCC Comfort projects.

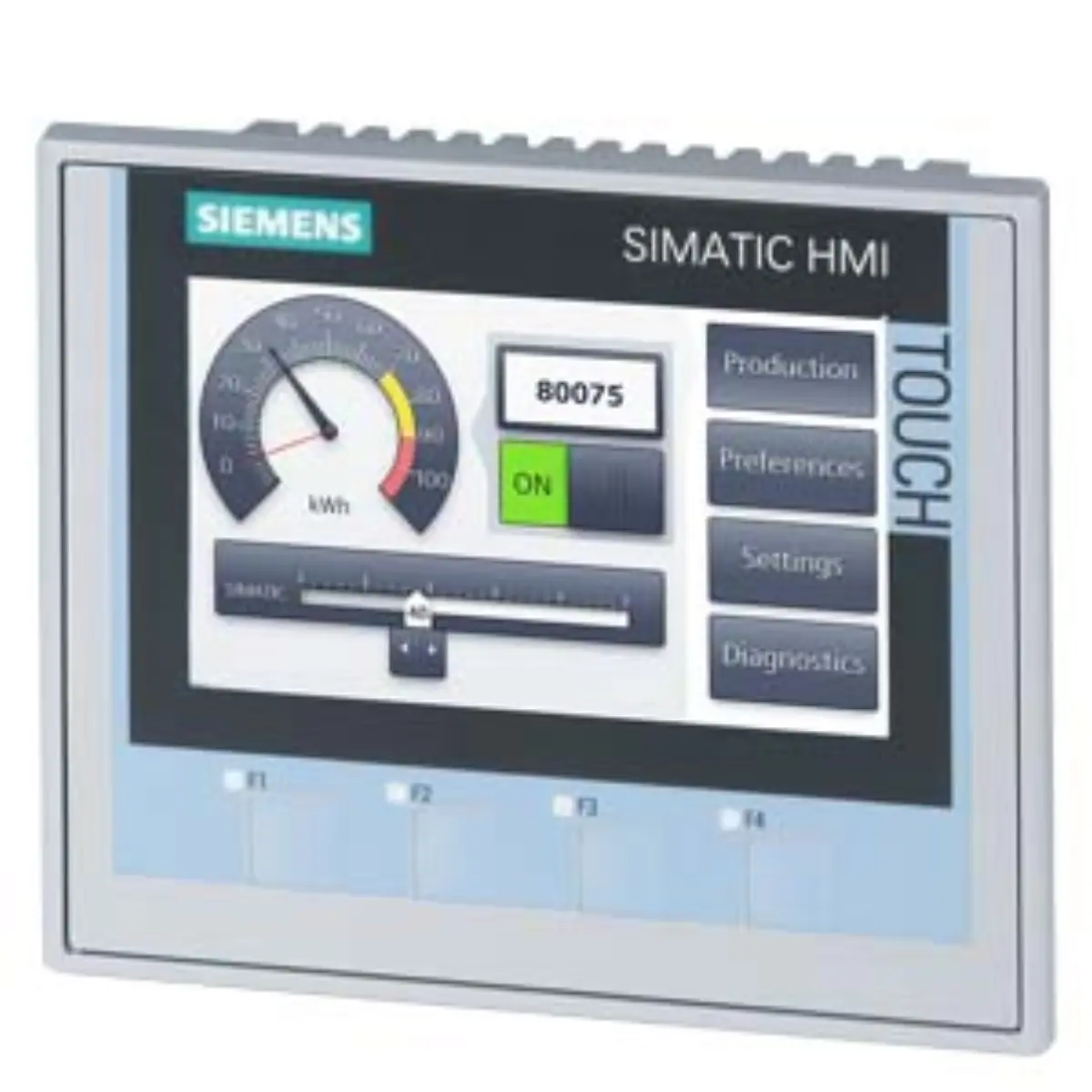

• Visual references should show the front panel with the 4-inch display. Clear imagery helps identify the physical form factor and button layout.
