Siemens 6AV2124-0XC24-1AB0 TP2200 Comfort Panel Details

Part number

6AV2124-0XC24-1AB0

Brand

Siemens

Category

HMI Panels

Product type

Comfort Panels PRO

Lifecycle

Phase Out Announce

Dimensions

63.00 x 40.00 x 21.00 cm

Net weight

9.86 Kg

Source category

Comfort Panels PRO

• Display technology utilizes a 22-inch widescreen TFT panel capable of rendering 16 million colors for clear visual feedback. Keep dimensions 63.00 x 40.00 x 21.00 cm and net weight 9.86 Kg unchanged while comparing project documents and product image evidence.
• Connectivity options include a PROFINET interface alongside MPI and PROFIBUS DP interfaces for versatile network integration.
• Configuration memory is recorded at 24 MB, allowing storage of project data and graphics within the unit.
• The operating system embedded within this hardware is listed as Windows Embedded Compact 2013 for stability.
• Software application context includes configuration via WinCC Comfort V14 SP1 when utilizing the specified HSP add-on package.
• Physical dimensions are noted as 63.00 x 40.00 x 21.00 cm with a net weight of 9.86 Kg.

• The product class is categorized under SIMATIC HMI TP2200 Comfort Pro within the broader automation portfolio.
• Lifecycle status is currently recorded as Phase Out Announce, indicating specific planning considerations for future projects.
• The front design is specified as neutral, offering a standardized appearance for various control cabinet installations.
• Support mechanisms include an expandable foot support with a flange located at the bottom for mounting.

Parameters are factual source fields retained for model review.

• Touch operation functionality is enabled through the integrated screen, facilitating direct user interaction without external peripherals.
• The PROFINET interface supports modern Ethernet-based communication protocols for high-speed data exchange in industrial networks.
• MPI and PROFIBUS DP interfaces allow connection to legacy systems or specific PLCs requiring these standard protocols.
• The 24 MB configuration memory size is sufficient for storing moderate-sized graphics and recipe data sets.
• WinCC Comfort V14 SP1 serves as the primary engineering tool for developing the HMI application logic.

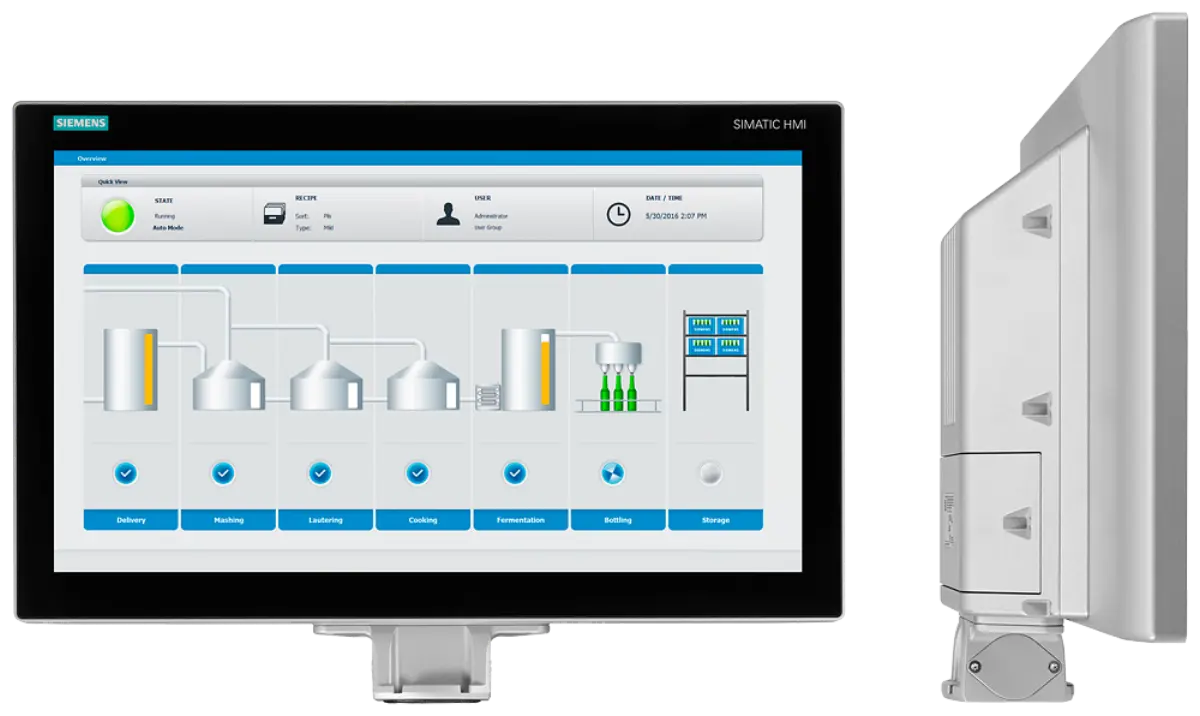

• Visual documentation should highlight the neutral front panel design characteristic of the TP2200 Comfort Pro series.
• Dimensions of 63.00 x 40.00 x 21.00 cm suggest a substantial footprint requiring adequate cabinet space allocation.
• The 22-inch display area dominates the front view, emphasizing the widescreen aspect ratio for detailed graphics.
• Mounting flanges at the bottom are visible in structural images, indicating the expandable foot support mechanism.

• Review the submitted model number 6AV2124-0XC24-1AB0 to ensure alignment with current project technical requirements.
• Verify that the PROFINET and PROFIBUS DP interfaces match the existing network infrastructure of the facility.
• Confirm that WinCC Comfort V14 SP1 with the necessary HSP is recorded for engineering the project.
• Assess the physical space constraints given the 9.86 Kg weight and 63 cm width of the unit.

• Source parameter review indicates the device is part of the established SIMATIC HMI product family.
• Project document review should account for the Phase Out Announce lifecycle status in long-term planning.
• Technical specifications confirm the inclusion of both PROFINET and PROFIBUS DP for flexible connectivity options.
• Engineering tools require WinCC Comfort V14 SP1 to fully utilize the 24 MB configuration memory capacity.
