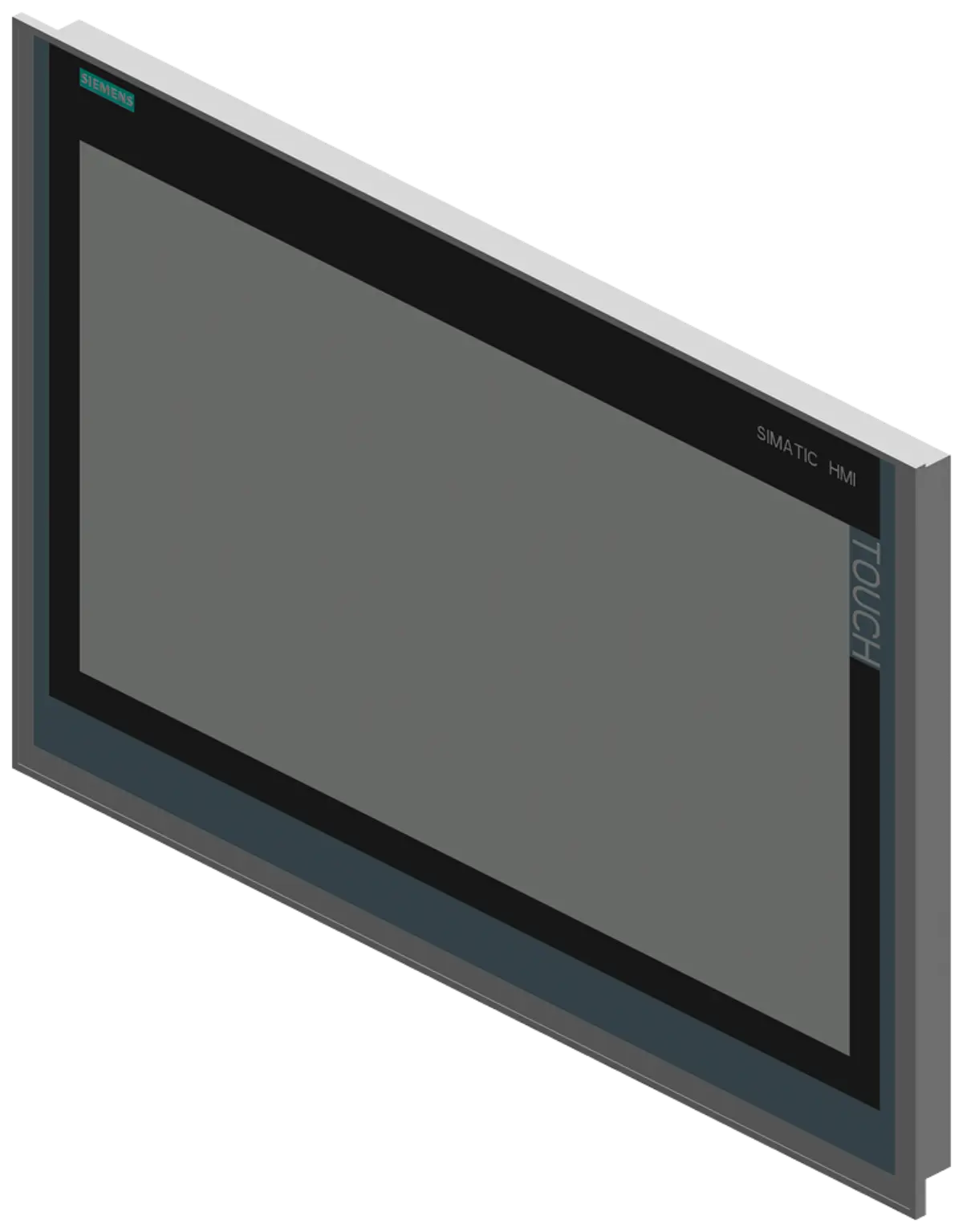

Siemens 6AV2124-0XC02-0AX1 TP2200 Comfort Panel Details

Part number

6AV2124-0XC02-0AX1

Brand

Siemens

Category

HMI Panels

Product type

Comfort Panels standard devices

Lifecycle

Phase Out Announce

Dimensions

66.00 x 52.00 x 22.00 cm

Net weight

8.14 Kg

Source category

Comfort Panels standard devices

• Display technology includes a 22-inch widescreen TFT screen capable of rendering 16 million colors for vivid visual representation.
• Connectivity is supported via a PROFINET interface, enabling high-speed communication within industrial Ethernet networks for real-time data exchange.
• Additional communication protocols are facilitated through an integrated MPI and PROFIBUS DP interface for legacy system connections.
• Configuration memory capacity is recorded at 24 MB, allowing for substantial storage of project data and runtime information.
• The operating system is based on Windows Embedded Compact 2013, providing a stable platform for HMI applications.
• Software application context allows configuration using WinCC Comfort V14 SP1 with the necessary Hardware Support Package installed.

• The product belongs to the Comfort Panels standard devices category, indicating its classification within the SIMATIC HMI family.
• Lifecycle status is currently listed as Phase Out Announce, which may influence long-term inquiry preparation planning strategies.
• Brand attribution is confirmed as Siemens, a recognized manufacturer of industrial automation and drive technologies globally.
• The normalized part number 6AV21240XC020AX1 serves as the primary identifier for database indexing and reference checks.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 66.00 cm in width, 52.00 cm in height, and 22.00 cm in depth.
• Net weight is specified at 8.14 Kg, which is relevant for mounting considerations and structural support calculations.
• Touch operation functionality is a key feature, allowing direct user interaction without the need for external input devices.
• The 24 MB configuration memory size supports extensive graphic elements and variable assignments within the HMI project structure.

• Visual inspection should confirm the presence of the 22-inch widescreen display area for proper dimension verification.
• Check the front panel for touch-sensitive zones to ensure the interactive surface is intact and responsive.
• Verify the side or rear ports for PROFINET and MPI/PROFIBUS DP connectors to match technical specifications.
• Examine labeling for the exact part number 6AV2124-0XC02-0AX1 to confirm model identity against documentation.

• Review the submitted model details to ensure the TP2200 Comfort Panel meets your specific visualization requirements.
• Consider the Phase Out Announce status when evaluating long-term maintenance and support needs for your facility.
• Prepare project documentation that outlines the required PROFINET and PROFIBUS DP integration points for network planning.
• Confirm software version application context, specifically WinCC Comfort V14 SP1, before initiating the configuration process.

• Source parameter review confirms the physical weight and dimensions align with standard industrial panel installations.
• Technical summary highlights the importance of the 24 MB memory for complex graphic-heavy HMI projects.
• Model identification notes emphasize the need to account for the announced phase-out status in planning.
• Inquiry preparation steps ensure all technical and logistical aspects are considered before submitting detailed requests.
