6AV2124-0QC24-0BX0 SIMATIC HMI TP1500 Comfort Panel

Part number

6AV2124-0QC24-0BX0

Brand

Siemens

Category

HMI Panels

Product type

Comfort Panels PRO

Lifecycle

Phase Out Announce

Dimensions

46.7 x 30.6 x 19.7 cm

Net weight

7.376 Kg

Source category

Comfort Panels PRO

• Display technology utilizes a 15-inch widescreen TFT panel providing high-resolution visual feedback for complex operational data. Keep dimensions 46.7 x 30.6 x 19.7 cm and net weight 7.376 Kg unchanged while comparing project documents and product image evidence.
• Color depth reaches sixteen million colors, ensuring clear distinction between graphical elements and status indicators on screen.
• Connectivity includes a PROFINET interface for modern Ethernet-based communication protocols within distributed automation networks.
• Additional interfaces support MPI and PROFIBUS DP connections, allowing integration with legacy and standard fieldbus systems.
• Configuration memory capacity stands at twenty-four megabytes, storing necessary project data and runtime information locally.
• Operating system foundation relies on Windows Embedded Standard 2013, providing a stable platform for application execution.

• Part number 6AV2124-0QC24-0BX0 identifies the specific variant of the TP1500 Comfort Panel series.
• Lifecycle status indicates a Phase Out Announcement, signaling changes in production or support timelines for this model.
• Software configurability requires WinCC Comfort V14 SP1 or later versions with the specified HSP add-on.
• Physical form factor allows mounting on round pipes, offering flexibility in installation configurations across different setups.

Parameters are factual source fields retained for model review.

• Overall dimensions measure forty-six point seven centimeters in width, thirty point six centimeters in height, and nineteen point seven centimeters in depth.
• Net weight records at seven point three seven six kilograms, influencing structural support requirements for mounting installations.
• Interface options include both PROFINET and MPI/PROFIBUS DP, catering to diverse network topology needs in plants.
• Memory allocation provides twenty-four megabytes for configuration storage, sufficient for moderate complexity visualization projects.
• Display resolution and color capabilities ensure high visibility and detailed graphical representation for operator interaction tasks.

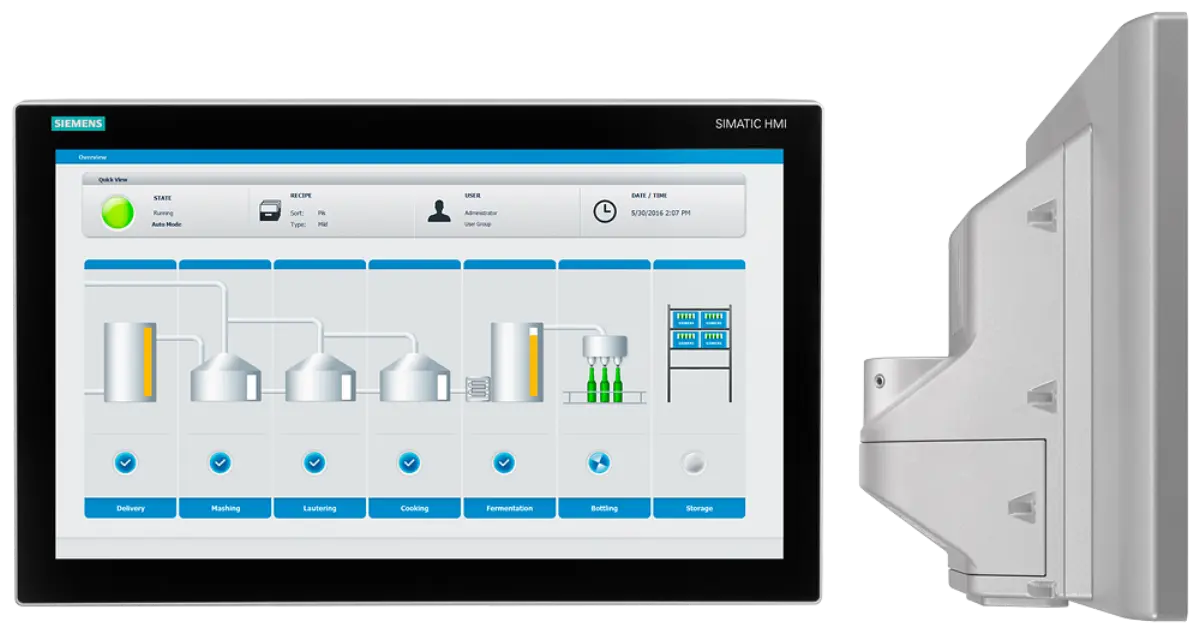

• Visual documentation should capture the front panel showing the 15-inch touchscreen area and bezel design.
• Side views may illustrate the mounting bracket or support arm attachment points for round pipe installation.
• Rear images typically display connection ports for PROFINET, MPI, and power supply inputs clearly labeled.
• Dimensional diagrams help verify spatial requirements against the recorded measurements of forty-six point seven by thirty point six centimeters.

• Review the submitted model number 6AV2124-0QC24-0BX0 to confirm alignment with specific project technical requirements.
• Verify software version application context, ensuring WinCC Comfort V14 SP1 with HSP is used for configuration.
• Assess physical space constraints against the recorded dimensions and weight for proper mounting and support planning.
• Confirm network infrastructure supports PROFINET and MPI/PROFIBUS DP interfaces as listed in the technical specifications.

• Source parameter review confirms the part number matches the Siemens TP1500 Comfort Panel designation accurately.
• Lifecycle status notification regarding Phase Out Announcement should be noted during project planning phases.
• Technical specifications align with standard Comfort Panel capabilities, including robust display and multi-interface connectivity.
• Inquiry process focuses on gathering precise project needs rather than immediate commercial transaction details.
