Siemens 6AV2124-0QC24-0AX0 TP1500 Comfort Panel Technical Details

Part number

6AV2124-0QC24-0AX0

Brand

Siemens

Category

HMI Panels

Product type

Comfort Panels PRO

Lifecycle

Phase Out Announce

Dimensions

47.00 x 30.6 x 19.7 cm

Net weight

7.305 Kg

Source category

Comfort Panels PRO

• Display technology utilizes a 15-inch widescreen TFT panel capable of rendering 16 million colors for clear visual feedback. Keep dimensions 47.00 x 30.6 x 19.7 cm and net weight 7.305 Kg unchanged while comparing project documents and product image evidence.
• Input method relies on touch operation, allowing intuitive interaction with the human-machine interface without additional peripherals.
• Communication protocols include PROFINET for modern Ethernet-based networks and MPI/PROFIBUS DP for established industrial bus systems.
• Internal memory capacity is recorded at 24 MB for configuration storage, supporting detailed project data retention.
• Operating system environment is based on Windows Embedded Standard 2013, ensuring stable performance for runtime applications.
• Physical dimensions are listed as 47.00 x 30.6 x 19.7 cm, with a net weight of 7.305 Kg for mounting calculations.

• The product class is identified as a Comfort Panel within the broader SIMATIC HMI family structure.
• Model designation TP1500 indicates the specific screen size and form factor associated with this hardware revision.
• Lifecycle status is currently noted as Phase Out Announce, requiring careful consideration for new deployment projects.
• Configuration support begins with WinCC Comfort V14 SP1, which is required for full feature utilization.

Parameters are factual source fields retained for model review.

• Mounting options include support arm attachment, with the unit designed for flange installation on the top surface.
• Expandability is restricted for this specific chassis design, meaning additional modules cannot be directly attached to the frame.
• Color depth specification confirms 16 million color capability, ensuring accurate representation of graphical user interface elements.
• Interface count includes one PROFINET port and one MPI/PROFIBUS DP port for versatile connectivity scenarios.

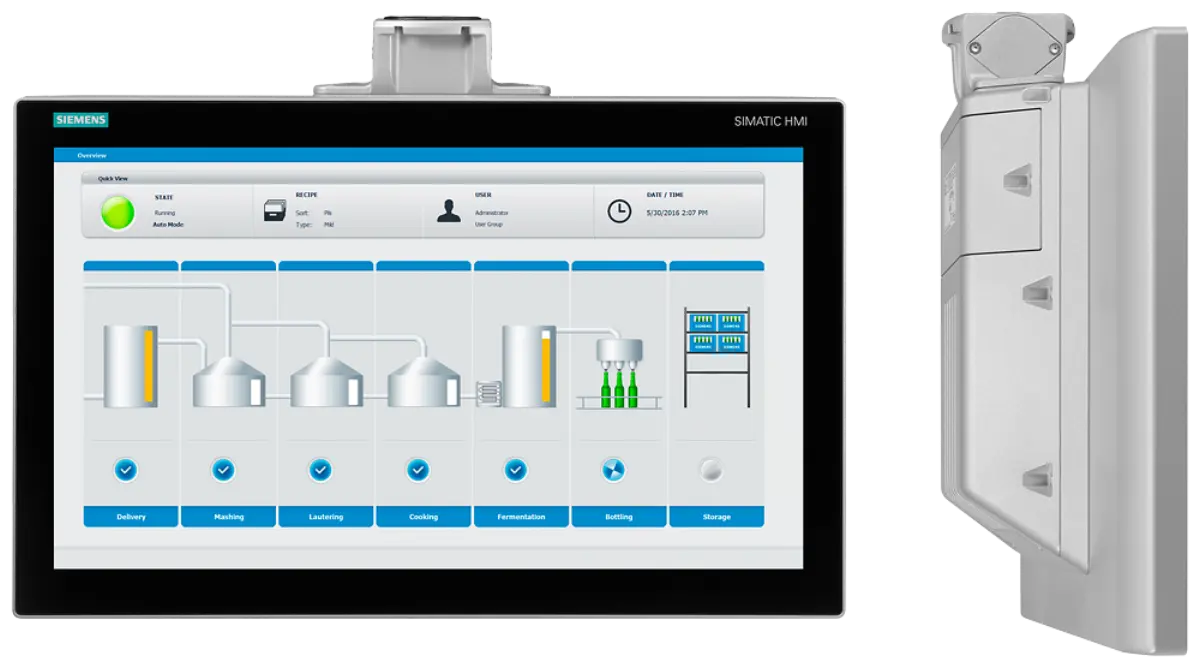

• Visual documentation should highlight the front bezel and the active area of the 15-inch touch-sensitive display.
• Side profiles may illustrate the depth of 19.7 cm, useful for understanding spatial requirements in control cabinets.
• Rear views typically show the connection ports for PROFINET and MPI/PROFIBUS DP interfaces clearly.
• Dimensional diagrams assist in verifying clearance needs around the 47.00 cm width and 30.6 cm height.

• Verify that the target project environment supports Windows Embedded Standard 2013 for software application context checks.
• Confirm that the control system architecture includes PROFINET or PROFIBUS DP networks for proper communication setup.
• Assess physical space constraints to ensure the 47x30x19 cm footprint fits within the designated enclosure area.
• Review licensing requirements for WinCC Comfort V14 SP1 to ensure configuration tools are recorded for programming.

• The Phase Out Announce status suggests evaluating long-term supply chain stability for future maintenance needs.
• Technical specifications indicate a focus on standard industrial communication protocols rather than specialized fieldbus systems.
• Physical weight of 7.305 Kg requires sturdy mounting solutions to support the unit securely during operation.
• Configuration memory of 24 MB is sufficient for standard HMI projects but may limit very large graphics sets.
