Siemens 6AV2124-0MC24-0BX0 TP1200 Comfort Panel Specification Review

Part number

6AV2124-0MC24-0BX0

Brand

Siemens

Category

HMI Panels

Product type

Comfort Panels PRO

Lifecycle

Phase Out Announce

Dimensions

46.9 x 30.6 x 19.7 cm

Net weight

5.97 Kg

Source category

Comfort Panels PRO

• Display technology utilizes a 12-inch widescreen TFT panel providing high-resolution visual output for operator interfaces. Keep dimensions 46.9 x 30.6 x 19.7 cm and net weight 5.97 Kg unchanged while comparing project documents and product image evidence.
• Color depth reaches 16 million colors ensuring detailed graphics and clear readability in various lighting conditions.
• Connectivity options include a PROFINET interface for modern Ethernet-based network integration and data exchange.
• Additional communication ports feature an MPI/PROFIBUS DP interface supporting legacy and specific industrial bus protocols.
• Internal storage capacity provides 24 MB of configuration memory for storing project data and settings locally.
• Operating system foundation relies on Windows Embedded Compact 2013 for stable and efficient runtime performance.

• Brand designation identifies this unit as a Siemens product within the broader SIMATIC HMI family line. Use the source path Automation technology / Comfort Panels / Comfort Panels PRO to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Model type specifies the TP1200 Comfort Pro variant indicating its position in the product hierarchy.
• Lifecycle status is recorded as Phase Out Announce requiring careful consideration for new project implementations.
• Part number 6AV2124-0MC24-0BX0 serves as the unique identifier for sourcing and documentation purposes.

Parameters are factual source fields retained for model review.

• Physical dimensions are listed as 46.9 x 30.6 x 19.7 cm defining the spatial footprint required.
• Net weight is recorded at 5.97 Kg which impacts mounting hardware selection and structural support needs.
• Software configurability begins with WinCC Comfort V14 SP1 allowing for detailed parameter customization and setup.
• HSP inclusion suggests specific software packages may be required for full functional configuration and deployment.

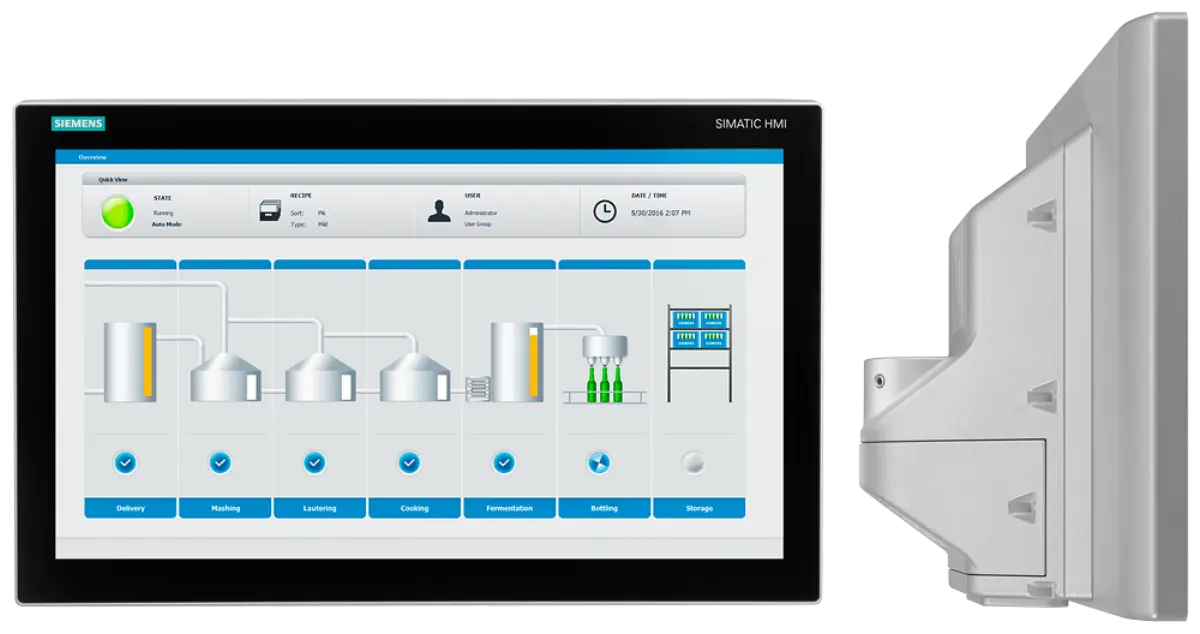

• Visual documentation should highlight the 12-inch screen area and surrounding bezel design elements clearly.
• Mounting points for the support arm attachment mechanism need to be visible in reference images.
• Port locations for PROFINET and MPI/PROFIBUS connections should be identifiable for installation planning purposes.
• Overall form factor representation must accurately reflect the stated dimensions and weight characteristics provided.

• Verify current project requirements against the Phase Out Announce status to ensure long-term viability.
• Confirm that existing infrastructure supports PROFINET and MPI/PROFIBUS DP communication protocols effectively.
• Check software licensing needs for WinCC Comfort V14 SP1 and associated HSP components.
• Assess physical space constraints to accommodate the specified dimensions and mounting support arm requirements.

• Ensure all technical parameters match the source documentation before finalizing any technical specification sheets.
• Cross-reference the lifecycle status with maintenance plans to address potential future supply chain considerations.
• Validate that the 24 MB memory allocation meets the complexity of the intended application projects.
• Confirm that the net weight and dimensions align with the mechanical design of the mounting structure.
