6AV2124-0MC01-0AX0 SIMATIC HMI TP1200 Comfort Panel

Part number

6AV2124-0MC01-0AX0

Brand

Siemens

Category

HMI Panels

Product type

Comfort Panels standard devices

Lifecycle

Phase Out Announce

Dimensions

50.9 x 36.2 x 12.6 cm

Net weight

3.46 Kg

Source category

Comfort Panels standard devices

• Equipped with a 12-inch widescreen TFT display, the panel supports touch operation with 16 million color depth for clear visual feedback.
• The device includes a PROFINET interface alongside MPI and PROFIBUS DP connections, enabling flexible communication protocols for network integration.
• Configuration memory is listed at 12 MB, providing sufficient space for project data storage and runtime operations within the control system.
• Operating on Windows CE 6.0, the panel ensures stable performance while allowing configuration through WinCC Comfort V11 software tools.
• Physical dimensions are recorded as 50.9 x 36.2 x 12.6 cm, with a net weight of 3.46 Kg for mounting considerations.
• The product class falls under Comfort Panels standard devices, indicating its role in mid-range automation scenarios requiring reliable operator input.

• The specific model identifier 6AV2124-0MC01-0AX0 corresponds to the TP1200 Comfort variant within the Siemens SIMATIC HMI product family.
• Normalization of the part number removes hyphens, resulting in the sequence 6AV21240MC010AX0 for database matching and reference purposes.
• Source categorization places this item under Automation technology, specifically within the hierarchy of Comfort Panels and their standard device subsets.
• Lifecycle documentation indicates a Phase Out Announce status, which is relevant for long-term project planning and component sourcing reviews.

Parameters are factual source fields retained for model review.

• Display specifications include a 12-inch widescreen TFT panel, offering high resolution and extensive color capability for detailed graphical representations.
• Interface options encompass PROFINET, MPI, and PROFIBUS DP, allowing connection to various PLCs and communication networks in industrial settings.
• Memory capacity is defined as 12 MB, supporting the storage of configuration data and runtime information for connected automation tasks.
• Software application context is noted with WinCC Comfort V11, facilitating the engineering and configuration process for system developers and integrators.
• Physical attributes list dimensions of 50.9 x 36.2 x 12.6 cm and a weight of 3.46 Kg for installation planning.

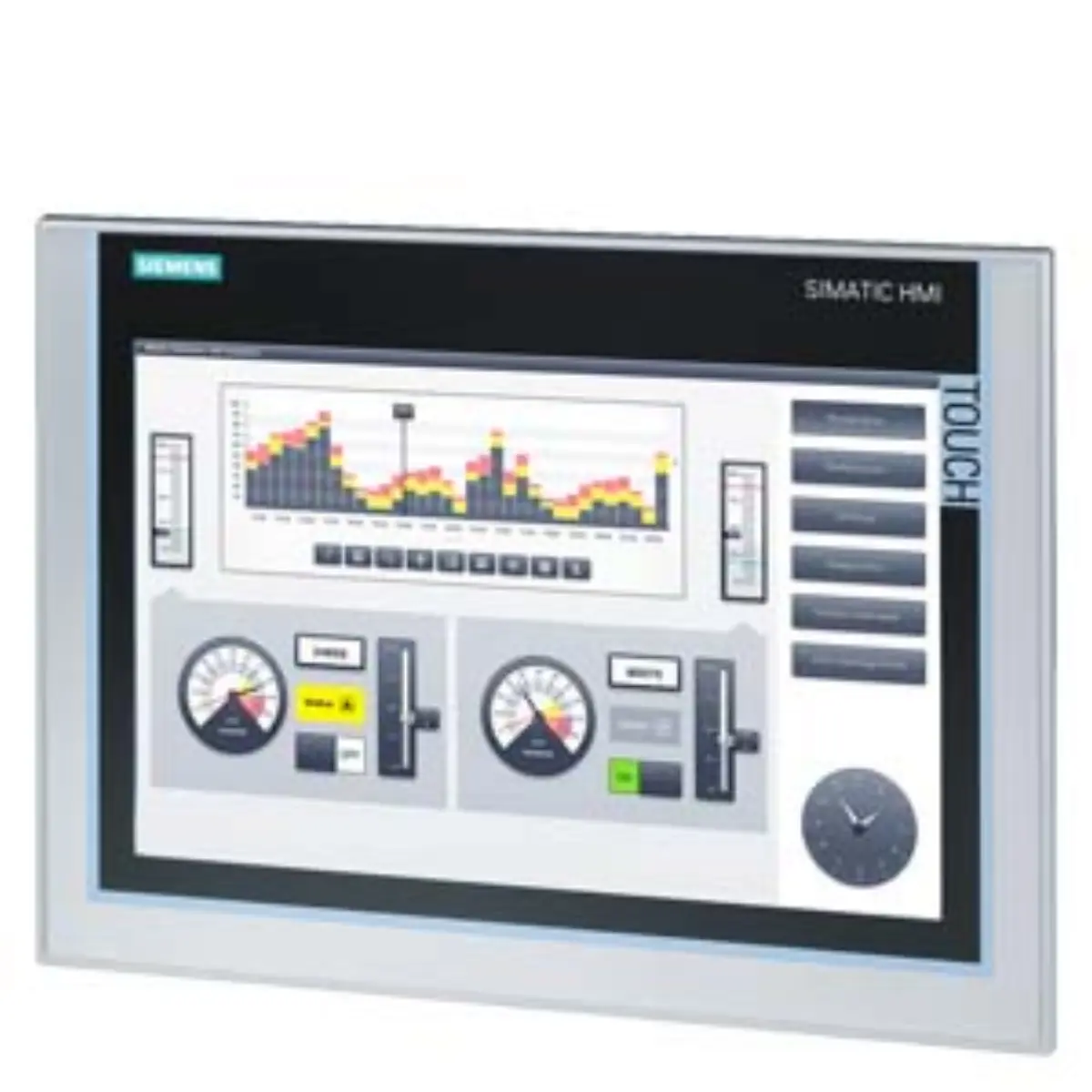

• Visual documentation should highlight the front panel layout, including the touchscreen area and surrounding bezel design typical of the TP1200 series.
