Siemens 6AV2124-0JC01-0AX0 TP900 Comfort Panel Details

Part number

6AV2124-0JC01-0AX0

Brand

Siemens

Category

HMI Panels

Product type

Comfort Panels standard devices

Lifecycle

Phase Out Announce

Dimensions

50.9 x 36.00 x 12.3 cm

Net weight

2.482 Kg

Source category

Comfort Panels standard devices

• Display technology utilizes a 9-inch widescreen TFT panel with support for 16 million distinct color shades for high visibility.
• Connectivity includes a PROFINET interface alongside MPI and PROFIBUS DP interfaces for versatile network integration in automation environments.
• Internal storage capacity is recorded at 12 MB of configuration memory, sufficient for storing project data and runtime information.
• Operating system foundation is based on Windows CE 6.0, providing a stable platform for HMI application execution and management.
• Configuration software application context is established with WinCC Comfort V11, allowing engineers to design and modify panel settings effectively.
• Physical dimensions are listed as 50.9 x 36.00 x 12.3 cm, with a net weight of 2.482 Kg for mounting considerations.

• Brand designation is clearly marked as Siemens, indicating the manufacturer origin for the industrial automation component.
• Product classification falls under Comfort Panels standard devices, distinguishing it from other series within the HMI portfolio.
• Lifecycle status is currently noted as Phase Out Announce, requiring careful review for long-term project planning stages.
• Part number structure 6AV2124-0JC01-0AX0 serves as the unique identifier for sourcing and technical documentation reference purposes.

Parameters are factual source fields retained for model review.

• Touch operation capability is integrated into the panel design, facilitating direct user interaction with the displayed interface elements.
• Network interface options include PROFINET, MPI, and PROFIBUS DP, supporting various communication protocols common in industrial settings.
• Memory specification records 12 MB of configuration memory, which is allocated for storing necessary project and runtime data.
• Software environment relies on Windows CE 6.0, ensuring application context with established configuration tools like WinCC Comfort V11.
• Weight and size parameters are fixed at 2.482 Kg and 50.9 x 36.00 x 12.3 cm respectively for installation.

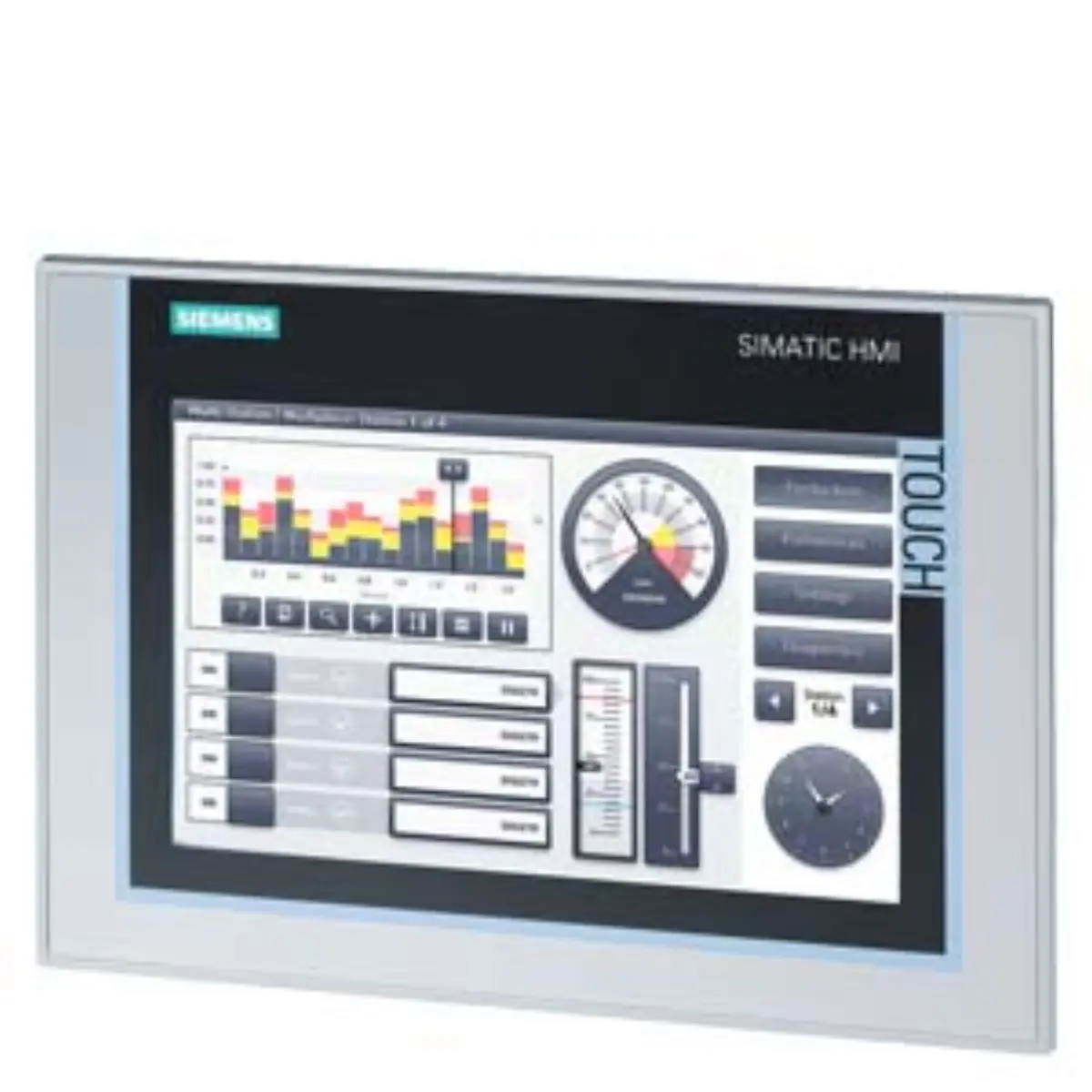

• Visual documentation should reflect the front aspect of the TP900 Comfort panel, highlighting the 9-inch display area.
• Images may show the PROFINET and PROFIBUS interface ports located on the side or rear of the unit chassis.
• Labeling details including the Siemens brand logo and the specific part number 6AV2124-0JC01-0AX0 should be clearly visible.
• Physical dimensions can be inferred from standard mounting hole patterns and overall chassis proportions shown in reference photos.

• Review the submitted model against current project requirements, noting the Phase Out Announce lifecycle status for future-proofing.
• Verify that the PROFINET and PROFIBUS DP interfaces align with existing network infrastructure and communication protocol standards.
• Confirm that WinCC Comfort V11 is the designated configuration tool within your engineering team's software environment setup.
• Assess physical space constraints using the recorded dimensions of 50.9 x 36.00 x 12.3 cm for panel mounting.

• Source parameter review indicates the device uses Windows CE 6.0, which should be checked against security policies.
• Project document review should account for the Phase Out Announce status when planning long-term maintenance strategies.
• Technical summary confirms 12 MB configuration memory, which must be evaluated for the complexity of intended HMI projects.
• Dimensional data of 50.9 x 36.00 x 12.3 cm is critical for verifying fit within control cabinet layouts.
