Siemens 6AV2123-2MB03-0AX0 KTP1200 Basic Panel Specification Review

Part number

6AV2123-2MB03-0AX0

Brand

Siemens

Category

HMI Panels

Product type

Standard devices 2nd Generation

Lifecycle

Active Product

Dimensions

39.9 x 29.6 x 9.3 cm

Net weight

2.05 Kg

Source category

Standard devices 2nd Generation

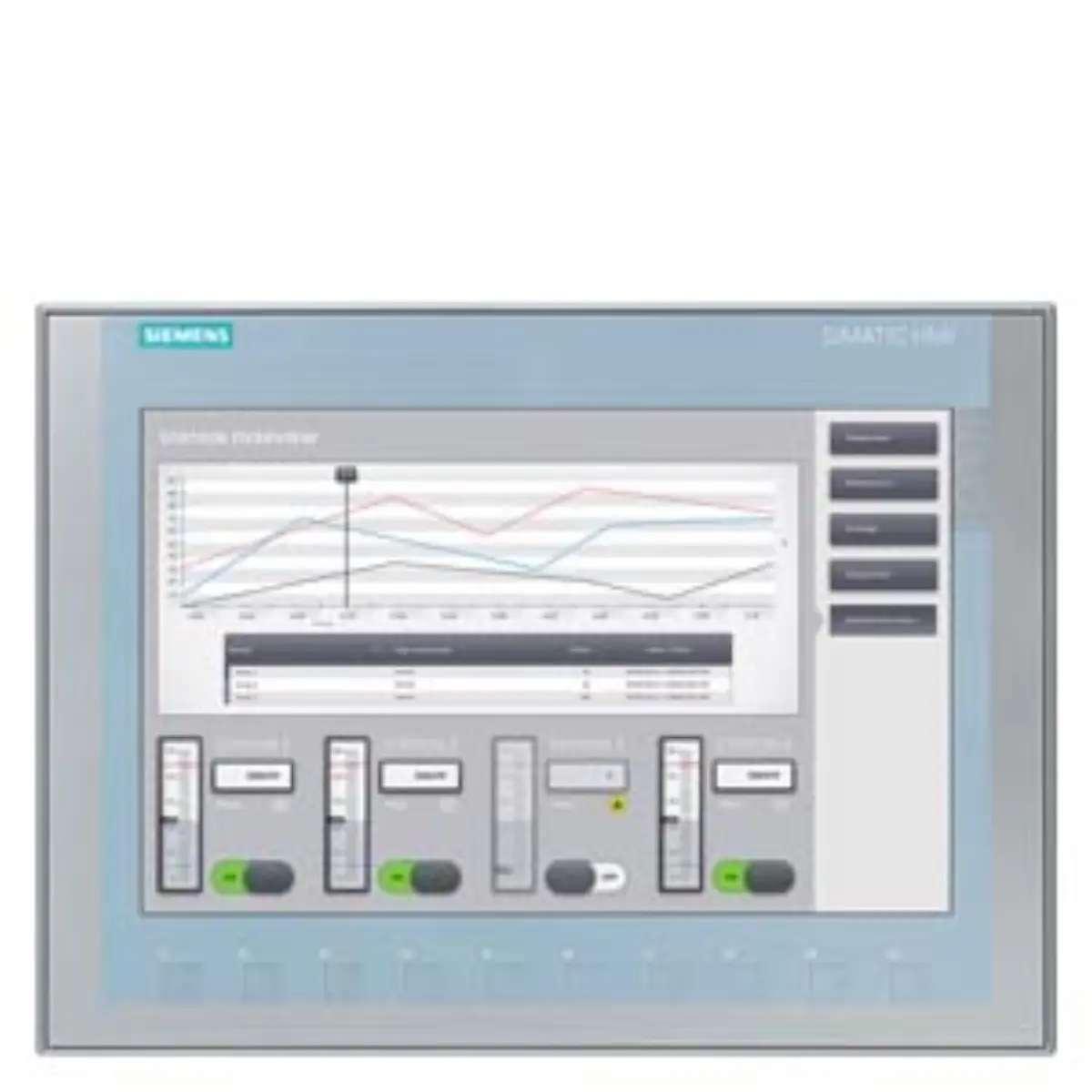

• Display technology utilizes a 12-inch TFT panel ensuring high-resolution visual output for operator interfaces and monitoring tasks.
• Color depth is specified at 65536 colors, allowing for detailed graphical representation and enhanced readability in various lighting conditions.
• Communication interface is based on PROFINET protocol, enabling robust Ethernet-based connectivity for modern automation network architectures.
• Physical dimensions are recorded as 39.9 x 29.6 x 9.3 cm, providing specific spatial requirements for panel mounting installations.
• Net weight is listed at 2.05 Kg, indicating the mass for logistical planning and structural support considerations during integration.
• Software configuration requires WinCC Basic V13 or STEP 7 Basic V13, defining the necessary engineering tools for setup.

• The part number 6AV2123-2MB03-0AX0 uniquely identifies this specific Basic Panel model within the Siemens SIMATIC HMI portfolio.
• Normalized part number 6AV21232MB030AX0 removes hyphens for database indexing and systematic reference in technical documentation systems.
• Product lifecycle status is currently Active, indicating ongoing production and support review details for new project implementations.
• Device classification falls under Basic Panels, distinguishing it from advanced or comfort line human-machine interface solutions.

Parameters are factual source fields retained for model review.

• Source parameter review confirms the inclusion of open-source software components provided free of charge on the enclosed CD.
• Interface type is confirmed as PROFINET, supporting real-time communication standards essential for distributed automation control systems.
• Operational mode combines key and touch functionality, offering versatile input methods for different user preference and environment needs.
• Configuration scope is limited to WinCC Basic V13 and STEP 7 Basic V13, requiring specific software version compliance.

• Visual inspection should verify the 12-inch screen area matches the specified TFT display dimensions for accurate identification.
• Check the front panel layout to ensure key and touch operation zones are clearly defined and accessible.
• Confirm the presence of the PROFINET interface port on the side or rear for network connection verification.
• Review physical markings for the part number 6AV2123-2MB03-0AX0 to ensure correct model matching during site assessment.

• Gather project documentation specifying the need for a 12-inch Basic Panel with PROFINET connectivity for integration planning.
• Verify that existing engineering stations run WinCC Basic V13 or STEP 7 Basic V13 for software application context checks.
• Prepare spatial measurements to confirm the 39.9 x 29.6 x 9.3 cm footprint fits the designated panel enclosure.
• Document the requirement for 65536 color depth to ensure visual performance meets operational monitoring standards and clarity needs.

• All technical data presented is derived directly from the manufacturer's published specification sheet for this model series.
• Users are advised to cross-reference these parameters with their specific project requirements before initiating any formal inquiry process.
• The enclosed CD containing open-source software should be retained for future reference and potential licensing compliance audits.
• Dimensional and weight data are provided for logistical planning purposes and should be verified against actual installation constraints.
