6AV2123-2JB03-0AX0 SIMATIC HMI KTP900 Basic Panel

Part number

6AV2123-2JB03-0AX0

Brand

Siemens

Category

HMI Panels

Product type

Standard devices 2nd Generation

Lifecycle

Active Product

Dimensions

33.00 x 23.3 x 7.5 cm

Net weight

1.383 Kg

Source category

Standard devices 2nd Generation

• Display technology utilizes a 9-inch TFT panel with high color depth for detailed graphical representation. Keep dimensions 33.00 x 23.3 x 7.5 cm and net weight 1.383 Kg unchanged while comparing project documents and product image evidence.
• Input methods combine key operation and touch functionality to accommodate diverse operator preferences and environmental needs.
• Communication relies on a PROFINET interface, enabling seamless integration into modern industrial Ethernet networks.
• Configuration is supported through WinCC Basic V13 and STEP 7 Basic V13 software environments.
• Physical dimensions measure 33.00 x 23.3 x 7.5 cm, allowing for compact mounting in control cabinets.
• Net weight is recorded at 1.383 Kg, indicating a lightweight yet durable construction for industrial settings.

• Brand designation is clearly marked as Siemens, identifying the manufacturer of this automation component. Use the source path Automation technology / Basic HMI / Basic Panels / Standard devices 2nd Generation to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Product type is classified under Standard devices 2nd Generation, reflecting its specific generation and feature set.
• Lifecycle status is listed as Active Product, indicating current production and support review details.
• The normalized part number 6AV21232JB030AX0 serves as the primary identifier for database matching.

Parameters are factual source fields retained for model review.

• Screen size is specified as 9 inches, providing adequate space for process visualization and control.
• Color capability reaches 65536 colors, supporting complex graphics and alarm signaling requirements.
• Interface protocol is PROFINET, facilitating real-time data exchange with PLCs and other network devices.
• Software dependency includes WinCC Basic V13 or STEP 7 Basic V13 for project configuration.
• Open-source software components are included, provided free of charge on the enclosed CD media.

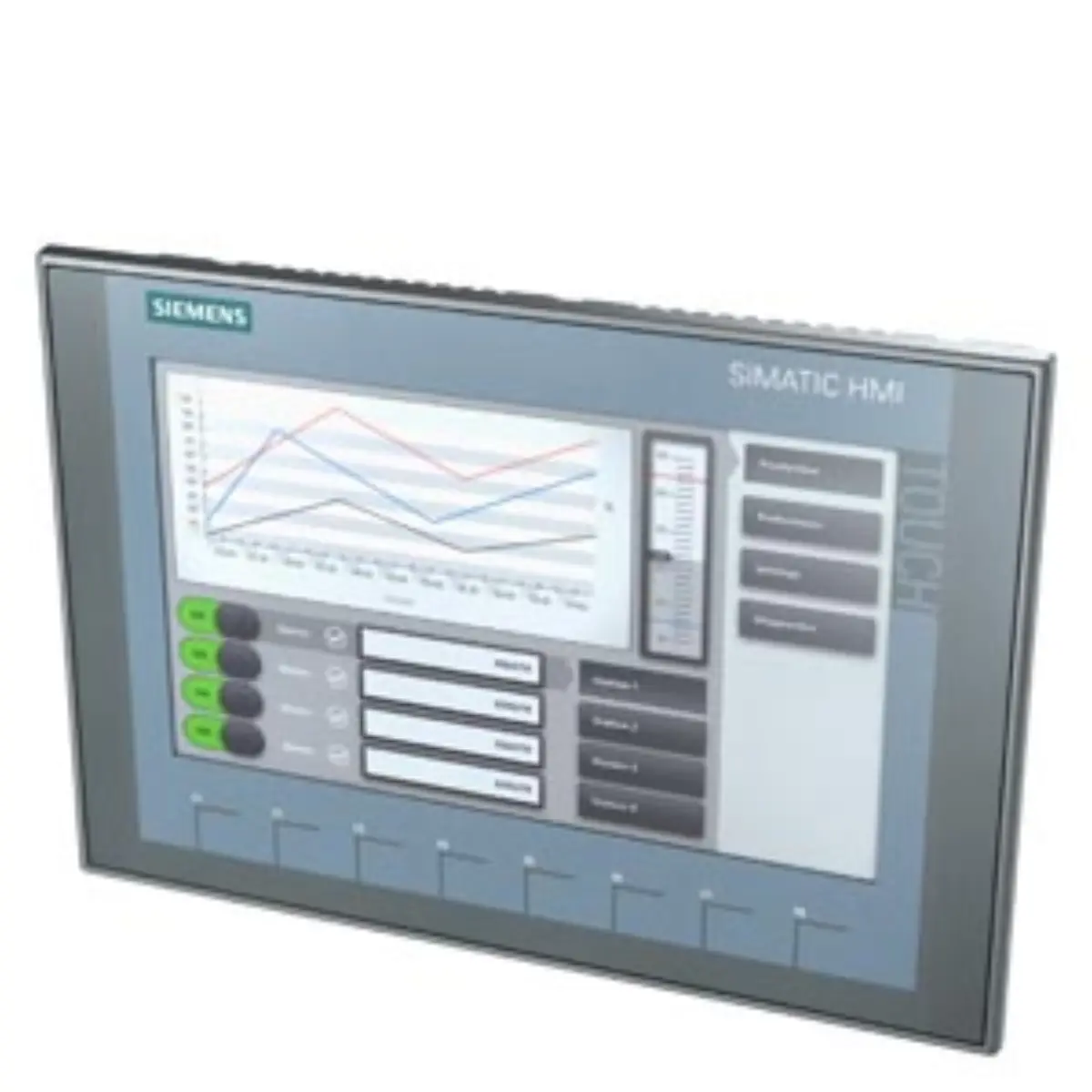

• Visual documentation should highlight the front panel layout, including the display area and input keys.
• Side views may illustrate the depth of 7.5 cm, relevant for DIN rail or wall mounting considerations.
• Labeling details on the rear or side can assist in verifying the exact part number during inspection.
• Overall form factor reflects the standard dimensions necessary for consistent installation across similar HMI panels.

• Review the submitted model against project requirements to ensure the 9-inch display meets visualization needs.
• Verify that the PROFINET interface aligns with the existing network infrastructure and communication protocols.
• Confirm software versions WinCC Basic V13 or STEP 7 Basic V13 are accessible for configuration.
• Check physical space constraints to ensure the 33.00 x 23.3 x 7.5 cm footprint fits the installation site.

• Ensure the inquiry specifies the exact part number 6AV2123-2JB03-0AX0 for accurate identification.
• Mention the requirement for the enclosed CD containing open-source software if applicable to the project.
• Clarify any specific mounting or environmental conditions that might affect the selection of this panel.
• Reference the Active Product lifecycle status when discussing long-term support and maintenance planning.
