Siemens 6AV2123-2GB03-0AX0 KTP700 Basic Panel Specifications

Part number

6AV2123-2GB03-0AX0

Brand

Siemens

Category

HMI Panels

Product type

Standard devices 2nd Generation

Lifecycle

Active Product

Dimensions

27.6 x 20.5 x 7.8 cm

Net weight

0.977 Kg

Source category

Standard devices 2nd Generation

• Display technology includes a 7-inch TFT screen providing high-resolution visualization for industrial processes. Keep dimensions 27.6 x 20.5 x 7.8 cm and net weight 0.977 Kg unchanged while comparing project documents and product image evidence.
• Color depth is recorded at 65,536 colors, ensuring detailed graphical representation on the interface.
• Communication relies on a PROFINET interface, facilitating network connectivity within automation architectures.
• Operation methods combine key buttons with touch screen functionality for flexible user input control.
• Software configuration requires WinCC Basic V13 or STEP 7 Basic V13 for setup tasks.
• The device lifecycle status is listed as Active Product, indicating current manufacturing support.

• Brand designation is clearly marked as Siemens for identification purposes in project documentation. Use the source path Automation technology / Basic HMI / Basic Panels / Standard devices 2nd Generation to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Product class falls under Standard devices 2nd Generation within the Basic HMI category structure.
• Source category path lists Automation technology leading to Basic Panels and Standard devices.
• Part number 6AV2123-2GB03-0AX0 serves as the unique identifier for this specific model variant.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 27.6 cm in width, 20.5 cm in height, and 7.8 cm in depth. Check product-owned images, label text, connector area, and submitted model references against the exact 6AV2123-2GB03-0AX0 record before publication.
• Net weight is specified at 0.977 Kg, contributing to load calculations for mounting structures.
• Open-source software components are included, with details provided on the enclosed CD media.
• Interface type is confirmed as PROFINET, supporting real-time data exchange in Ethernet networks.
• Display size is fixed at 7 inches, defining the visual area recorded for operator interaction.

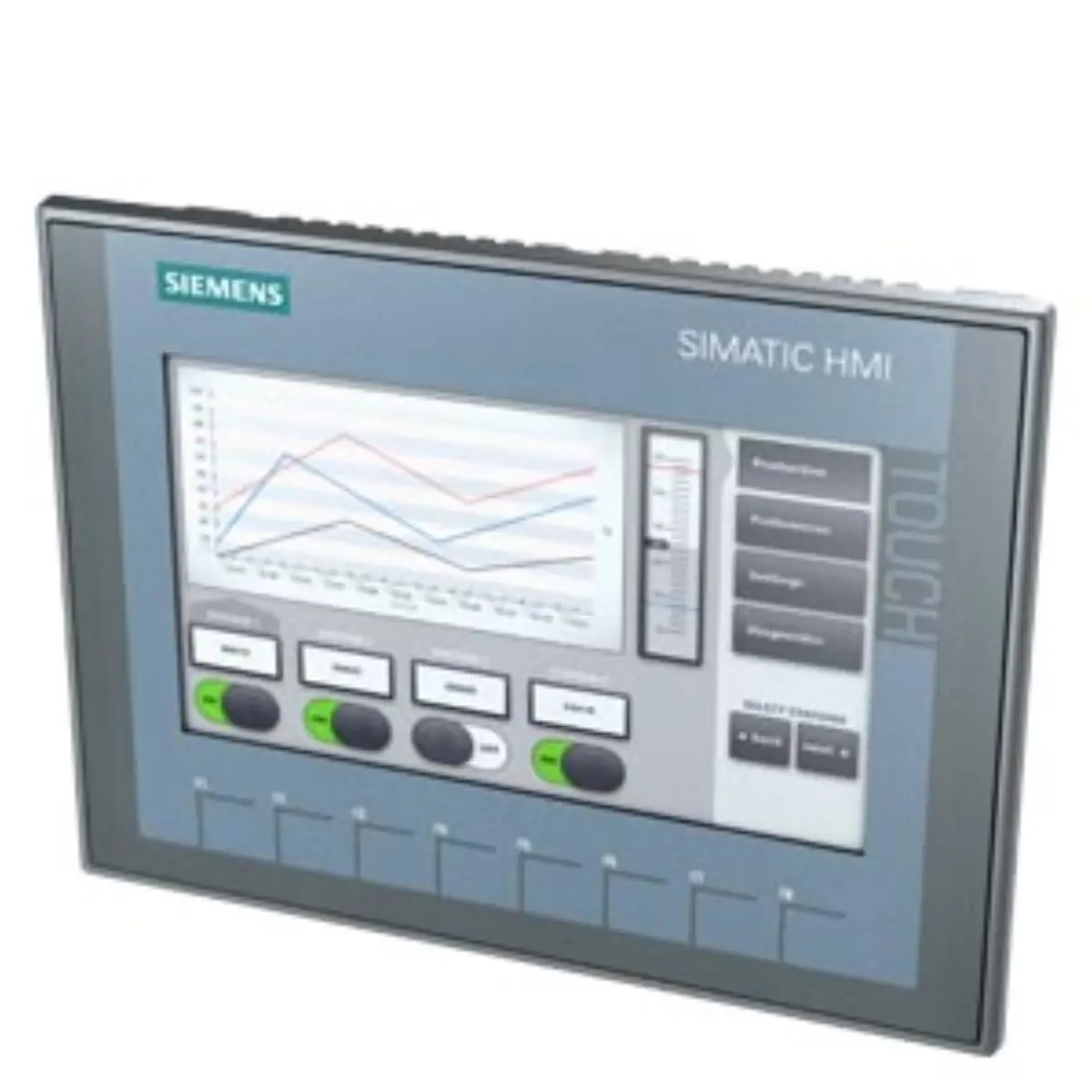

• Front view images typically show the 7-inch TFT display surrounded by the panel bezel.
• Side profile views illustrate the 7.8 cm depth, relevant for enclosure cutout planning.
• Rear connection diagrams may depict the PROFINET port location and mounting hardware points.
• Label close-ups verify the part number 6AV2123-2GB03-0AX0 printed on the device housing.

• Verify project requirements against the 7-inch TFT display size and color depth specifications.
• Confirm network infrastructure supports PROFINET interface communication for seamless integration into existing systems.
• Check software licenses for WinCC Basic V13 or STEP 7 Basic V13 for configuration needs.
• Review physical mounting constraints considering the 27.6 x 20.5 x 7.8 cm dimensions.

• Ensure all technical parameters match the specific operational needs of the target application.
• Cross-reference the PROFINET interface requirements with the facility's existing network topology details.
• Validate that the included open-source software components meet project licensing and usage guidelines.
• Confirm the active product lifecycle status aligns with long-term maintenance and support expectations.
