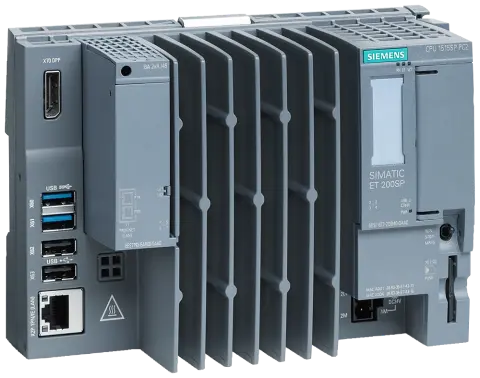

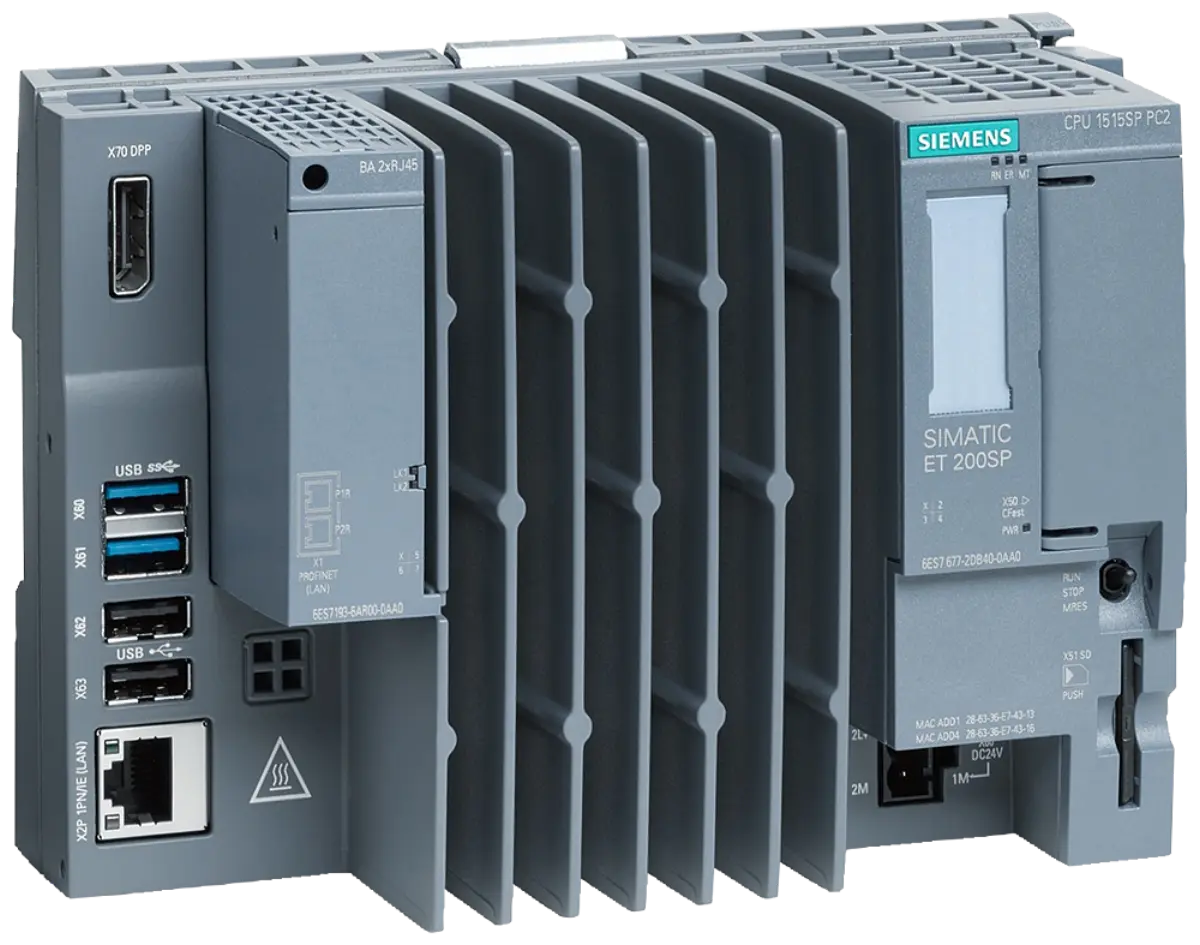

Siemens 6AG2677-2DB42-2GB0 Controller Specifications

Part number

6AG2677-2DB42-2GB0

Brand

Siemens

Category

Cables, Connectors & Accessories

Product type

Cables, Connectors & Accessories

Lifecycle

Active Product

Dimensions

18.9 x 14.2 x 9.2 cm

Net weight

0.83 Kg

• The unit operates within a temperature range of -40 to +60 degrees Celsius for standard conditions. Keep dimensions 18.9 x 14.2 x 9.2 cm and net weight 0.83 Kg unchanged while comparing project documents and product image evidence.
• Short-term overload tolerance allows operation up to 70 degrees Celsius for ten-minute intervals.
• Memory configuration includes 8 GB of RAM for efficient data processing and temporary storage tasks.
• Storage capacity provides 128 GB via CFast media running Windows 10 IoT Enterprise 64-bit.
• Communication interfaces feature one Ethernet port supporting speeds up to 1000 Mbps for network connectivity.
• Physical connectivity includes two USB 3.0 ports and two USB 2.0 ports for peripheral attachment.

• The part number 6AG2677-2DB42-2GB0 identifies this specific variant of the SIMATIC ET 200SP series. Use the source path cables-connectors-accessories to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• This model is based on the 6ES7677-2DB42-0GB0 foundation with added protective conformal coating layers.
• It incorporates the S7-1500 Software Controller CPU 1505SP preinstalled for immediate functional deployment readiness.
• The product class indicates restricted review notes requiring direct contact with designated Siemens representatives.

Parameters are factual source fields retained for model review.

• Dimensions are listed as 18.9 cm by 14.2 cm by 9.2 cm for spatial assessment. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG2677-2DB42-2GB0 record before publication.
• Net weight is recorded at 0.83 kg to assist in load-bearing calculations for mounting structures.
• Interface slots include one CFast slot and one SD/MMC slot for flexible media options.
• A dedicated connection point exists for the ET 200SP BusAdapter PROFINET for network integration.
• Display output is supported via one DisplayPort interface for local visual monitoring and diagnostics.

• Visual inspection should confirm the presence of conformal coating on internal circuit board components.
• Check labeling accuracy to ensure the printed part number matches the 6AG2677-2DB42-2GB0 identifier.
• Verify physical condition of all USB and Ethernet ports for any signs of prior usage damage.
• Ensure the CFast and SD/MMC slots are clean and free from debris or obstruction.

• Gather project documentation specifying the required operating temperature range for your specific application environment.
• Confirm that the 128 GB storage capacity meets your data logging and software execution needs.
• Review network infrastructure requirements to ensure application context with the 10/100/1000 Mbps Ethernet interface.
• Prepare technical questions regarding the review restriction policy mentioned in the product classification details.

• Source parameter review is recommended before finalizing any technical integration plans for this unit.
• Project document review should verify that the preinstalled software meets current licensing requirements.
• Physical inspection guidelines suggest checking for any cosmetic damage that might indicate handling issues.
• Technical specification verification ensures all interface counts match the expected configuration for your setup.
