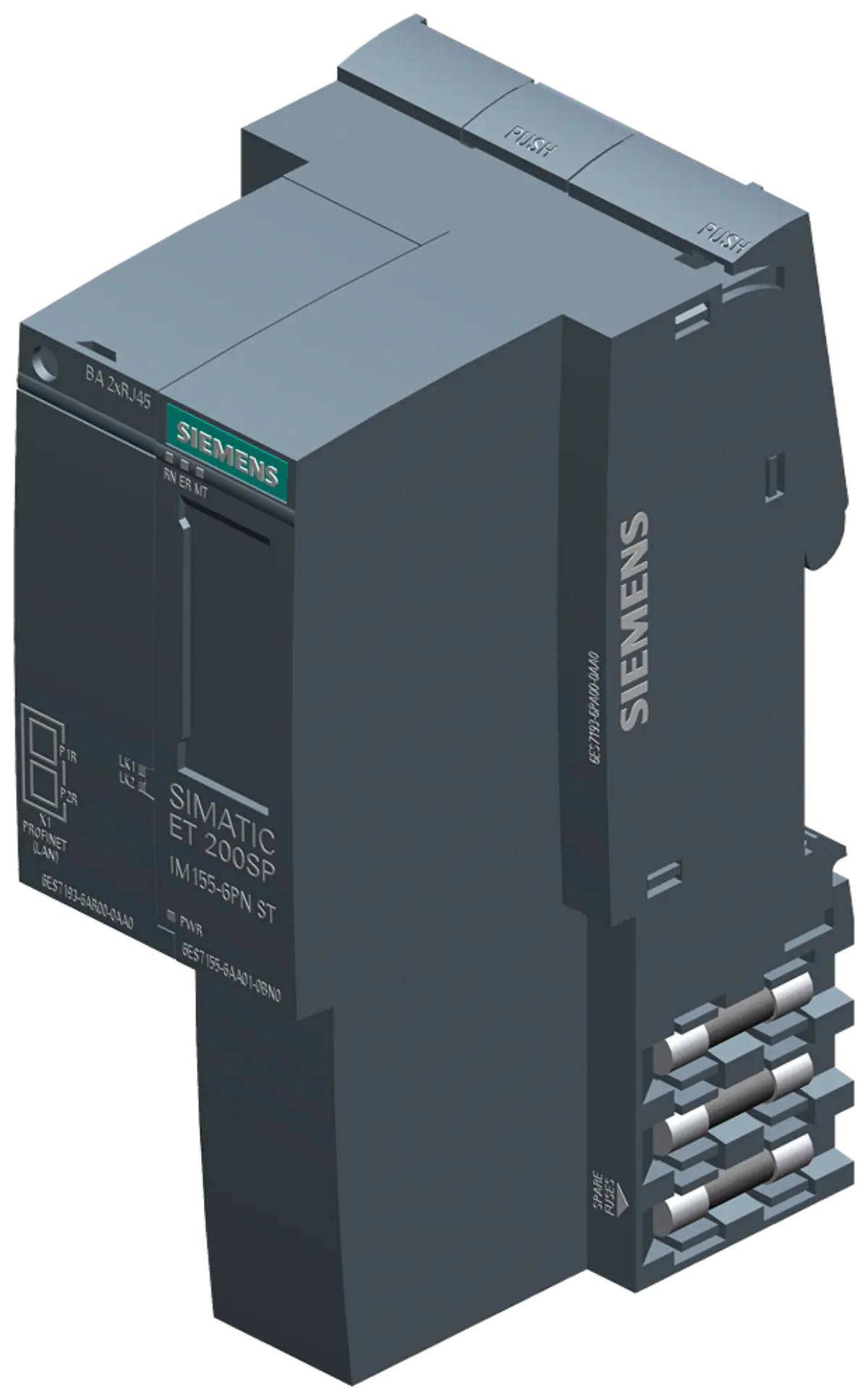

Inquiry for Siemens 6AG1155-6AA01-7BN0 Interface Module

Part number

6AG1155-6AA01-7BN0

Brand

Siemens

Category

Cables, Connectors & Accessories

Product type

Cables, Connectors & Accessories

Lifecycle

Prod. Cancellation

Dimensions

12.5 x 10.00 x 6.00 cm

Net weight

0.244 Kg

• Conformal coating provides enhanced protection against corrosive agents and moisture for extended equipment longevity. Keep dimensions 12.5 x 10.00 x 6.00 cm and net weight 0.244 Kg unchanged while comparing project documents and product image evidence.
• Operating temperature range spans from -40°C to +70°C, accommodating extreme industrial climate variations effectively.
• The module supports up to 32 I/O modules and 16 ET 200AL modules per slot configuration.
• Single hot swap functionality allows for component spare part record without interrupting the overall system power supply.
• Bundle includes interface module 6AG1155-6AU01-7BN0, server module 6AG1193-6PA00-7AA0, and BusAdapter BA 2xRJ45.
• Physical dimensions measure 12.5 x 10.00 x 6.00 cm with a net weight of 0.244 Kg.

• Base model derives from 6ES7155-6AA01-0BN0 with added SIPLUS environmental hardening specifications applied. Use the source path cables-connectors-accessories to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Part number 6AG1155-6AA01-7BN0 specifically denotes the bundled configuration rather than individual component units.
• Lifecycle status is recorded as Prod. Cancellation, indicating end-of-life phase for new production runs.
• Category classification places this item under Cables, Connectors & Accessories within industrial automation frameworks.

Parameters are factual source fields retained for model review.

• Verify the required PROFINET interface type matches the BusAdapter BA 2xRJ45 included in the bundle. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1155-6AA01-7BN0 record before publication.
• Confirm that the ambient temperature conditions align with the specified -40…+70 °C operational range.
• Check slot capacity requirements to ensure the 1-slot limitation meets your specific I/O module count.
• Review the conformal coating necessity against your facility's chemical exposure and humidity levels carefully.
• Assess the hot swap requirement to determine if single hot swap capability suffices for your needs.

• Inspect the physical labeling on the device housing to confirm the full part number sequence.
• Examine the connector ports on the BusAdapter to verify RJ45 interface presence and quantity.
• Check the mounting rail attachment points to ensure application context with standard ET 200SP racks.
• Review the overall form factor dimensions against your control cabinet space allocation constraints precisely.

• Prepare your facility's environmental data sheet to justify the need for extended temperature ranges.
• Document the current I/O module inventory to validate the 32 I/O and 16 AL limits.
• Gather existing system architecture diagrams showing PROFINET network topology for interface module integration planning.
• Compile project timelines to address potential lead times associated with Prod. Cancellation lifecycle status.

• Ensure all bundle components are listed individually when cross-referencing with existing system bills of materials.
• Note that the Prod. Cancellation status may impact future sourcing strategies for identical replacements.
• Validate that the server module 6AG1193-6PA00-7AA0 is correctly integrated within the specified bundle structure.
• Confirm that the conformal coating specification meets your specific industry compliance and safety standards.
