Siemens 6AG2647-0AH11-1AX1 SIPLUS HMI KP300 Basic mono PN RAIL Inquiry

Part number

6AG2647-0AH11-1AX1

Brand

Siemens

Category

HMI Panels

Product type

SIPLUS HMI KP300 Basic mono PN RAIL, OT1: -25

Lifecycle

Active Product

Dimensions

20.00 x 13.9 x 4.6 cm

Net weight

0.375 Kg

Source category

SIPLUS extreme RAIL Basic Panels (1st Generation)

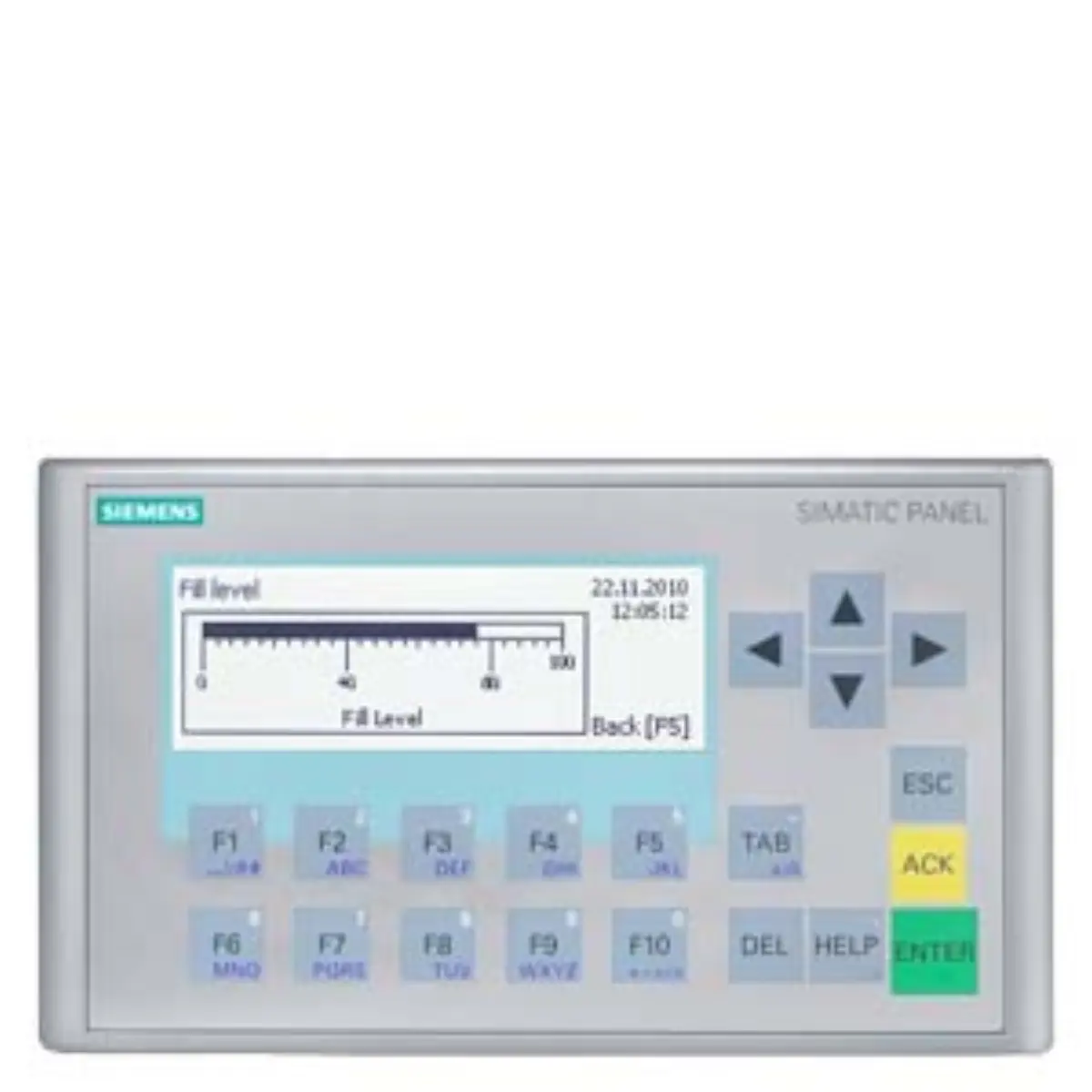

• Display technology utilizes a 3-inch FSTN LCD screen with black and white color rendering for clear visibility in various lighting conditions.
• Communication interface is established via PROFINET, allowing integration into modern industrial networks for efficient data exchange and control signal transmission.
• Operating temperature range is defined as OT1: -25...+55 °C with ST1/2 rating of 70 °C for 10 minutes under specific conditions.
• Physical dimensions are listed as 20.00 x 13.9 x 4.6 cm, providing a compact form factor listed for standard rail mounting installations.
• Net weight is recorded at 0.375 Kg, indicating a lightweight construction that facilitates easy handling and installation during project deployment phases.
• Software configuration requires WinCC Basic V11 or STEP 7 Basic V11, ensuring application context with established engineering tools for parameter setup.

• The part number 6AG2647-0AH11-1AX1 identifies this specific variant within the SIPLUS HMI KP300 Basic mono PN RAIL family.
• Source category path places this device under SIPLUS operator control and monitoring devices, specifically the first generation of extreme RAIL panels.
• Lifecycle status is documented as Active Product, confirming current production and support review details for new project implementations.
• Product class B indicates review restrictions, requiring direct contact with designated Siemens review contacts for any post-inquiry service inquiries.
