6AG2590-0BD00-4AA0 SIPLUS S7-1500 Active Backplane Bus Rail

Part number

6AG2590-0BD00-4AA0

Brand

Siemens

Category

I/O Modules

Product type

SIPLUS S7-1500 act

Lifecycle

Active Product

Dimensions

16.4 x 11.1 x 2.7 cm

Net weight

0.443 Kg

Source category

SIPLUS extreme RAIL active backplane bus

• This active backplane bus rail accommodates four slots for inserting S7-1500 I/O modules efficiently. Keep dimensions 16.4 x 11.1 x 2.7 cm and net weight 0.443 Kg unchanged while comparing project documents and product image evidence.
• The design supports hot swapping functionality when used with the IM 155-5 PN HF interface module.
• Conformal coating is applied to protect internal components against moisture, dust, and corrosive atmospheric elements.
• Operating temperature range extends from -40 °C to +70 °C for extreme environmental resilience.
• The base architecture derives from the 6ES7590-0BD00-0AA0 standard mounting rail configuration for application context.
• Slot covers and the S7-1500 mounting rail itself require separate request to complete the assembly.

• Recorded under the brand name Siemens within the broader automation technology product portfolio structure. Use the source path Automation technology / ET 200MP / SIPLUS extreme RAIL active backplane bus to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Categorized specifically as an IO module accessory within the ET 200MP distributed I/O system.
• Identified as a SIPLUS extreme RAIL active backplane bus component for specialized industrial applications.
• Lifecycle status is listed as Active Product, indicating current manufacturing and support review details.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 16.4 cm in length, 11.1 cm in width, and 2.7 cm in height.
• Net weight is specified at 0.443 Kg, allowing for straightforward logistical planning and handling.
• Source category path includes Automation technology, ET 200MP, and SIPLUS extreme RAIL classifications.
• Product class indicates review restrictions, requiring direct contact with designated Siemens review contacts for processing.
• The part number 6AG2590-0BD00-4AA0 serves as the primary unique identifier for this specific rail unit.

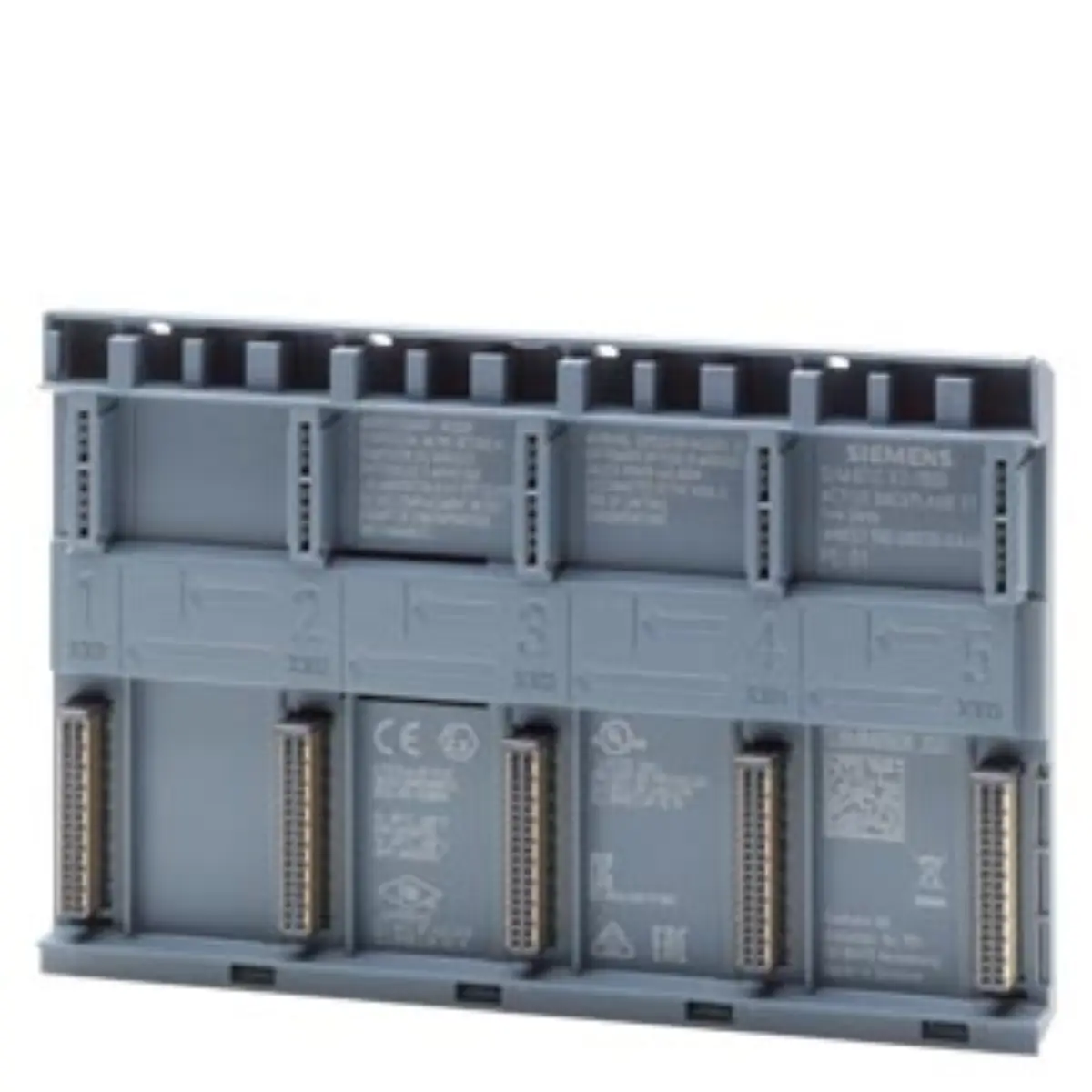

• Visual documentation should display the four-slot rail structure with visible active bus contacts.
• Images must show the conformal coating finish on the metal surface for environmental protection.
• Dimensions can be verified through scale references showing the 16.4 x 11.1 x 2.7 cm size.
• Labeling on the unit should clearly present the full part number for accurate identification.

• Verify that the IM 155-5 PN HF interface module firmware is version 4.4.1 or higher.
• Confirm that separate request of slot covers and the S7-1500 mounting rail is planned.
• Assess whether the -40 to +70 °C operating range meets specific site environmental requirements.
• Prepare project documents detailing the need for hot-swapping capabilities within the ET 200MP setup.

• Ensure all technical parameters align with the specific requirements of the target automation project.
• Check that the review restriction policy is understood before initiating any inquiry preparation discussions.
• Validate that the active backplane bus function is necessary for the intended hot-swap application.
• Cross-reference the base model 6ES7590-0BD00-0AA0 to confirm structural application context with existing rack setups.
