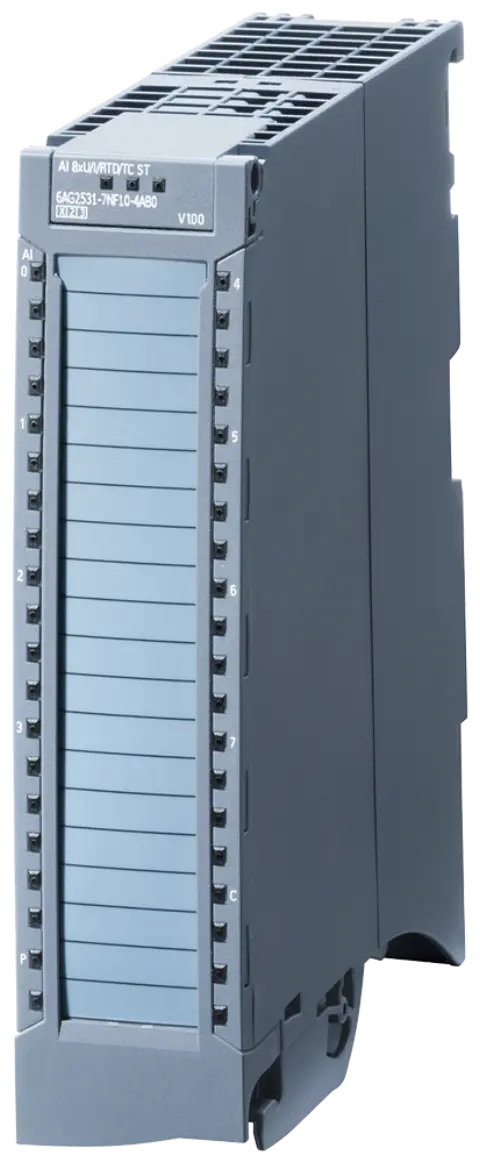

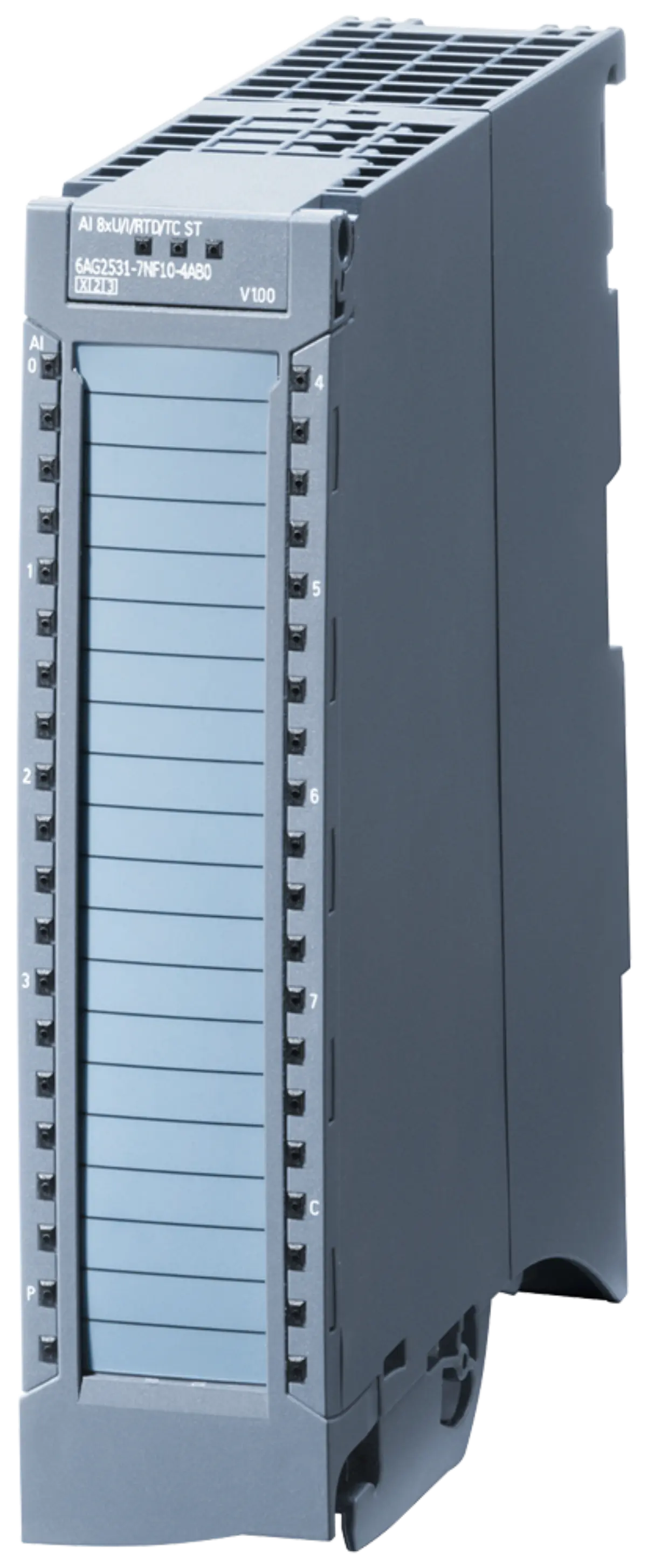

Siemens 6AG2531-7NF10-4AB0 Analog Input Module Details

Part number

6AG2531-7NF10-4AB0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

19.00 x 16.5 x 4.00 cm

Net weight

0.438 Kg

Source category

SIPLUS extreme RAIL analog input modules

• Analog input module with 16-bit resolution for precise signal processing in demanding applications. Keep dimensions 19.00 x 16.5 x 4.00 cm and net weight 0.438 Kg unchanged while comparing project documents and product image evidence.
• Operates within a temperature range of -40°C to +70°C with OT4 classification.
• Supports ST1/2 standards allowing +85°C for ten minutes during transient overloads.
• Features eight channels grouped together with hardware interrupt capability for rapid response.
• Includes infeed elements, shielding brackets, and shield terminals for noise reduction.
• Diagnostics functions monitor channel status and signal integrity throughout operation cycles.

• Base model reference is 6ES7531-7NF10-0AB0 with specialized SIPLUS modifications. Use the source path SIPLUS extreme RAIL analog modules / SIPLUS extreme RAIL analog input modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Suffix 4AB0 indicates the extreme environment variant with protective coatings applied.
• Product class B designation requires direct contact with Siemens review contacts for handling.
• Lifecycle status is recorded as Active Product for ongoing project planning.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 19.00 x 16.5 x 4.00 centimeters. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG2531-7NF10-4AB0 record before publication.
• Net weight is listed at 0.438 kilograms for logistics and mounting calculations.
• Accuracy specification is maintained at 0.3% across the operational temperature range.
• Common mode voltage rating is specified at 10 volts for safety margins.
• Hardware interrupt timing is documented at 0.0625 milliseconds per channel group.

• Visual inspection should confirm the presence of conformal coating on circuit boards. Review Siemens 6AG2531-7NF10-4AB0 as I/O Modules with source category SIPLUS extreme RAIL analog input modules, recorded lifecycle Active Product, and submitted model identity.
• Check labeling for the full part number including the 4AB0 suffix clearly.
• Verify physical connectors match the rail-based mounting system specifications provided.
• Ensure shielding terminals and brackets are intact and undamaged for installation.

• Document the specific environmental conditions where this module will be installed. Keep dimensions 19.00 x 16.5 x 4.00 cm and net weight 0.438 Kg unchanged while comparing project documents and product image evidence.
• List the required channel configurations and signal types for each input point.
• Specify any additional diagnostic requirements or integration needs with existing systems.
• Provide project timeline details to align with review contacts contact procedures effectively.

• Confirm all technical parameters match the specific demands of the control system.
• Review the product class restrictions before initiating any formal communication channels.
• Ensure environmental ratings meet the operational requirements of the deployment site.
• Validate that the base model application context aligns with current infrastructure standards.
