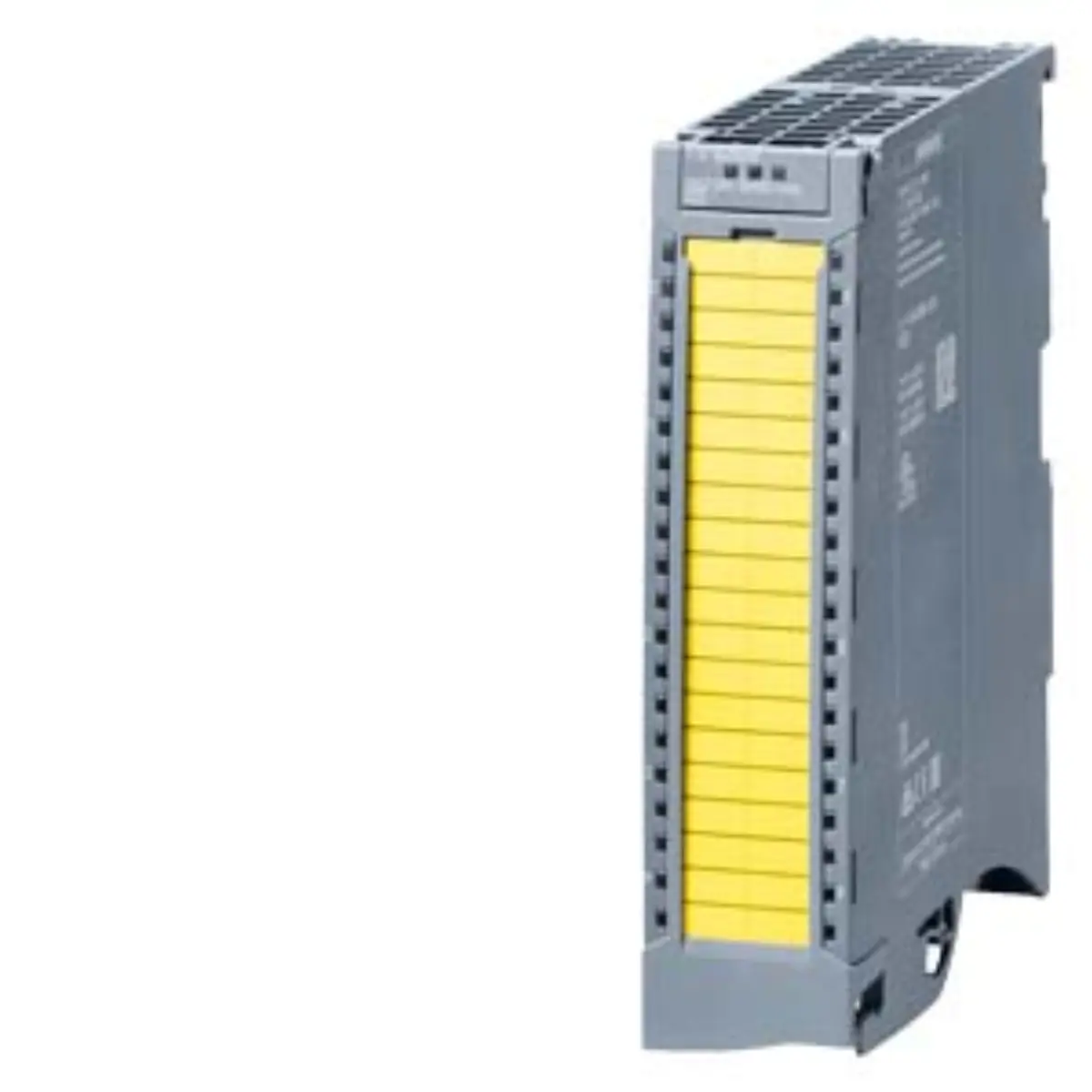

Siemens 6AG2526-1BH00-1AB0 F-Digital Input Module

Part number

6AG2526-1BH00-1AB0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

6.5 x 9.2 x 3.8 cm

Net weight

0.35 Kg

Source category

SIPLUS extreme RAIL F-digital input modules

• Input configuration consists of 16 channels operating at 24VDC for reliable signal detection in automated machinery environments. Keep dimensions 6.5 x 9.2 x 3.8 cm and net weight 0.35 Kg unchanged while comparing project documents and product image evidence.
• Overall physical width measures 35 mm, allowing standard DIN rail mounting within compact control cabinet architectures.
• Conformal coating protects internal circuitry against moisture, dust, and corrosive agents found in challenging industrial settings.
• Operating temperature range spans from -30°C to +60°C, accommodating extreme ambient conditions without performance degradation.
• Overtemperature rating OT1 allows temporary exposure up to +70°C for ten minutes during specific thermal events.
• Safety classification meets PL E and SIL 3 requirements, supporting functional safety protocols in regulated industries.

• Brand designation is recorded as Siemens, indicating the manufacturer of this specific industrial automation component. Use the source path SIPLUS extreme RAIL F-digital/analog modules / SIPLUS extreme RAIL F-digital input modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Product class B indicates review restrictions; contact the designated Siemens review contacts for further handling instructions.
• Lifecycle status is listed as Active Product, confirming current production and support review details for inquiry preparation.
• Base model reference is 6ES7526-1BH00-0AB0, with this variant adding extreme environment protection features.

Parameters are factual source fields retained for model review.

• Dimensions are recorded as 6.5 cm height, 9.2 cm width, and 3.8 cm depth for spatial planning.
• Net weight is specified at 0.35 Kg, aiding in logistics planning and structural load calculations.
• Source category path identifies this item under SIPLUS extreme RAIL F-digital/analog modules section.
• Sub-category classification places it within SIPLUS extreme RAIL F-digital input modules for precise filtering.
• Voltage specification confirms 24VDC input requirement, aligning with standard low-voltage DC control systems.

• Front view should display the terminal block layout and channel indicator lights clearly for identification.
• Side profile must show the 35 mm rail mounting clip mechanism for installation verification purposes.
• Label area needs to be legible, showing the full part number and Siemens branding accurately.
• Coating texture may be visible on internal components if cutaway views are provided for inspection.

• Verify the required quantity of modules needed for your specific control panel design and expansion plans.
• Confirm the ambient temperature conditions of the installation site to ensure compliance with operating ranges.
• Check if additional accessories like front connectors or mounting rails are required for assembly.
• Prepare project documentation detailing safety integrity levels required for your functional safety assessment process.

• Ensure all technical parameters match your system requirements before submitting the formal inquiry request.
• Review the safety classification details to confirm alignment with your facility's functional safety standards.
• Cross-reference the base model number to understand the underlying hardware platform and feature set.
• Document any specific environmental challenges to justify the selection of the extreme-rated variant.
