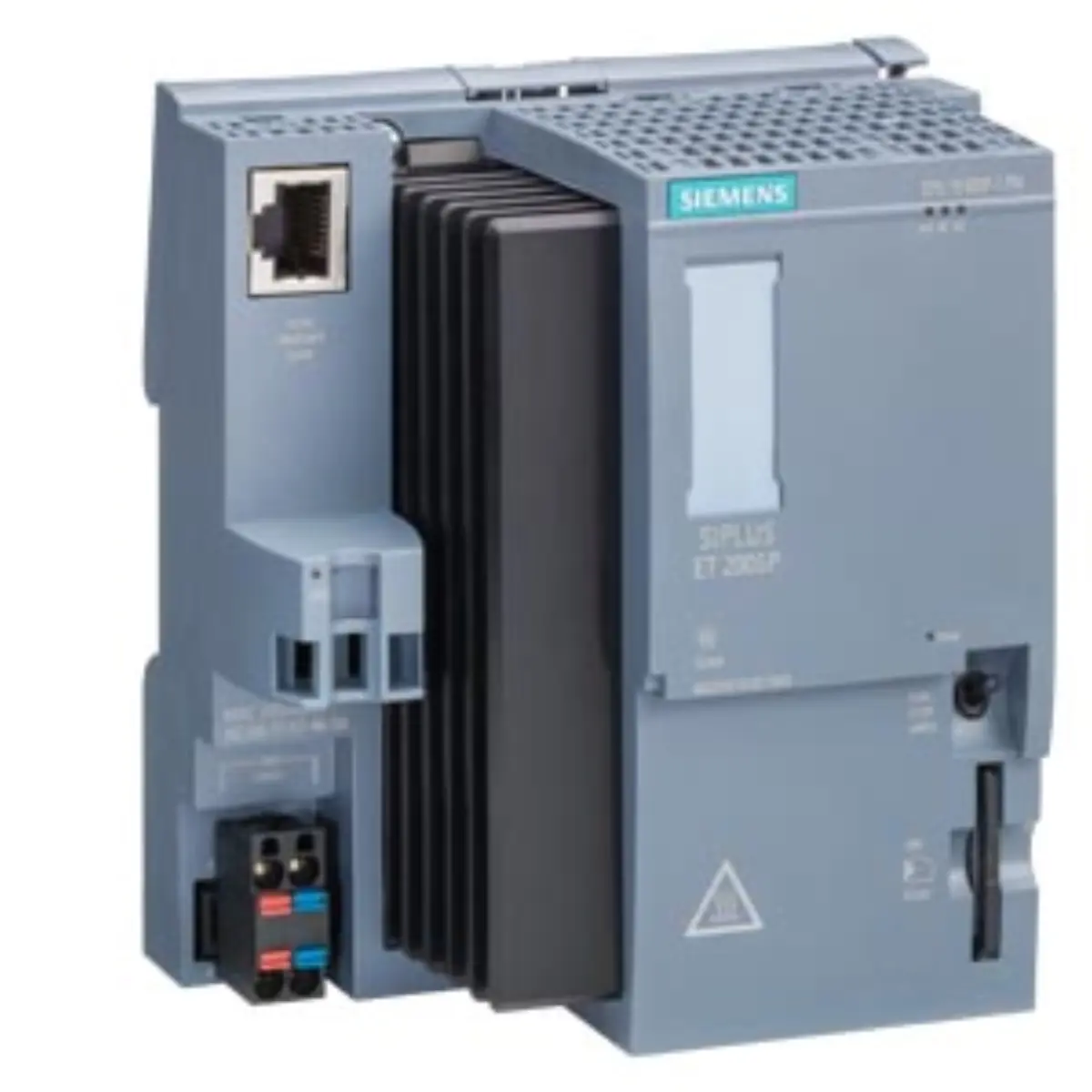

Inquiry for Siemens 6AG2510-1DJ01-4AB0 Central Processing Unit

Part number

6AG2510-1DJ01-4AB0

Brand

Siemens

Category

Cables, Connectors & Accessories

Product type

Cables, Connectors & Accessories

Lifecycle

Prod. Cancellation

Dimensions

12.2 x 10.00 x 6.3 cm

Net weight

0.546 Kg

• Memory configuration includes 100 KB for program storage and 750 KB for data retention within the central processing unit architecture.
• The first interface utilizes PROFINET IRT technology featuring a built-in three-port switch for high-performance network communication.
• Bit performance is recorded at 72 nanoseconds, ensuring rapid processing cycles for time-critical automation tasks and control logic execution.
• Operating temperature limits extend to OT4 standards, with support for ST1/2 conditions allowing temperatures up to 85 degrees Celsius for ten minutes.
• Physical dimensions are listed as 12.2 by 10.00 by 6.3 centimeters, with a net weight of 0.546 kilograms for handling reference.
• A SIMATIC Memory Card is required for operation, as the unit does not include pluggable BusAdapter components in its standard configuration.

• The product class is designated as B, indicating review restrictions that require direct contact with Siemens review contacts for handling procedures.
• Lifecycle status is recorded as Prod. Cancellation, meaning this specific part number may no longer be in active production phases.
• The base model reference is 6ES7510-1DJ01-0AB0, modified specifically for SIPLUS extreme environmental conditions and extended operational parameters.
• Conformal coating application is a key identifier, distinguishing this unit from standard ET 200SP CPUs without specialized protective layers.

Parameters are factual source fields retained for model review.

• Verify the need for extended temperature ranges before initiating the inquiry process to ensure alignment with project environmental requirements.
• Confirm memory card specifications are application context with the 100 KB program and 750 KB data allocation limits defined for this CPU.
• Assess PROFINET IRT switch port requirements to determine if the three-port configuration meets the network topology needs of the installation.
• Review the OT4 and ST1/2 thermal ratings to validate suitability for environments exceeding standard industrial temperature operating thresholds.

• Ensure images clearly display the rail-mounting mechanism and the physical form factor consistent with the 12.2 cm width dimension.
• Labeling on the unit should be visible to confirm the full part number 6AG2510-1DJ01-4AB0 matches the inquiry details provided.
• Photographs should illustrate the conformal coating finish if visible, supporting the technical description of environmental protection measures applied to the hardware.
• Include views of the PROFINET interface ports to verify the three-port switch configuration mentioned in the technical specifications section.

• Gather all relevant project documents specifying the -40 to +70 degree Celsius operational range requirement for the central processing unit.
• Prepare technical drawings showing the required PROFINET IRT network structure to validate the three-port switch capability for your setup.
• Document the memory card type needed to support the 100 KB program and 750 KB data allocation for the CPU module.
• Note the review restriction class B status when preparing documentation, as this may influence handling and logistics planning for the unit.

• Cross-reference the lifecycle status with current project timelines to account for potential production cancellation implications during implementation phases.
• Validate the physical dimensions against rack space constraints to ensure the 12.2 x 10.00 x 6.3 cm footprint fits the design.
• Check the weight specification of 0.546 kg for mounting bracket load calculations and structural support requirements in the installation plan.
• Confirm the absence of pluggable BusAdapter components in the inquiry to avoid misunderstandings regarding interface connectivity and expansion options.
