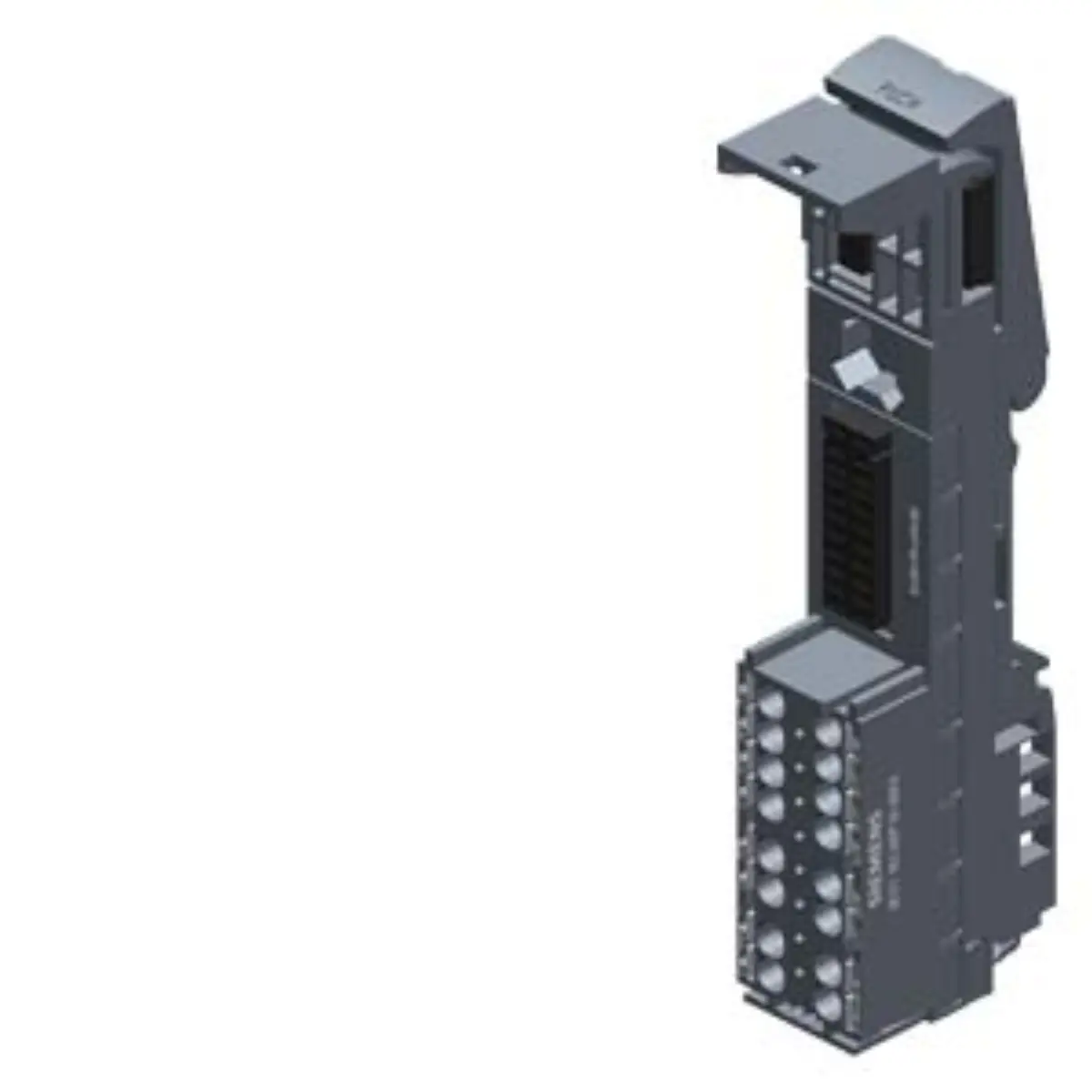

Siemens 6AG2193-6BP20-4BF0 Industrial Automation Component

Part number

6AG2193-6BP20-4BF0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

12.2 x 4.5 x 2.8 cm

Net weight

0.057 Kg

Source category

SIPLUS extreme RAIL BaseUnits

• Base configuration derives from the 6ES7193-6BP20-0BF0 model structure for functional consistency. Keep dimensions 12.2 x 4.5 x 2.8 cm and net weight 0.057 Kg unchanged while comparing project documents and product image evidence.
• Conformal coating application ensures protection against moisture and corrosive industrial atmospheres.
• Operating temperature range spans from -40 degrees Celsius up to +70 degrees Celsius.
• Overtemperature class OT4 specification allows operation at +85 degrees Celsius for ten minutes.
• BU type F0 designation indicates specific base unit characteristics for system integration.
• Push-in terminal technology facilitates rapid and secure electrical connections during installation.

• Part number 6AG2193-6BP20-4BF0 identifies this specific SIPLUS extreme rail variant. Use the source path Automation technology / ET 200SP / SIPLUS extreme RAIL BaseUnits to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Normalized identifier 6AG21936BP204BF0 removes hyphens for database indexing and search optimization.
• Brand attribution confirms Siemens manufacturing origin for quality and specification verification.
• Lifecycle status recorded as Active Product indicating current production and support review details.

Parameters are factual source fields retained for model review.

• Physical dimensions measure 12.2 centimeters in width, 4.5 centimeters in height, and 2.8 centimeters in depth. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG2193-6BP20-4BF0 record before publication.
• Net weight is recorded at 0.057 kilograms, reflecting lightweight construction for mounting efficiency.
• Width-to-height ratio of 20 mm by 117 mm defines the form factor.
• Four auxiliary terminals are included, bridged to the left for simplified wiring schemes.
• Terminal configuration includes eight main points plus four auxiliary connections for flexibility.

• Visual inspection should confirm the presence of push-in terminal blocks on the front. Review Siemens 6AG2193-6BP20-4BF0 as I/O Modules with source category SIPLUS extreme RAIL BaseUnits, recorded lifecycle Active Product, and submitted model identity.
• Check for labeling indicating the full part number and Siemens brand markings clearly.
• Verify the conformal coating appearance on exposed circuit areas if visible through housing.
• Ensure physical dimensions match the specified 12.2 x 4.5 x 2.8 cm measurements.

• Gather project documentation specifying required operating temperatures and environmental exposure conditions. Keep dimensions 12.2 x 4.5 x 2.8 cm and net weight 0.057 Kg unchanged while comparing project documents and product image evidence.
• Confirm existing ET 200SP rack configurations to ensure mechanical fit and alignment.
• Review electrical schematics to verify terminal usage and auxiliary connection requirements.
• Prepare technical questions regarding OT4 overtemperature class application for your specific use case.

• Product class B indicates review restrictions requiring direct contact with Siemens review contacts.
• Engineering teams should verify all technical parameters against specific project requirement documents.
• Source parameter review is recommended before finalizing any technical integration plans.
• Submit detailed inquiries with all relevant operational context for accurate technical assessment.
