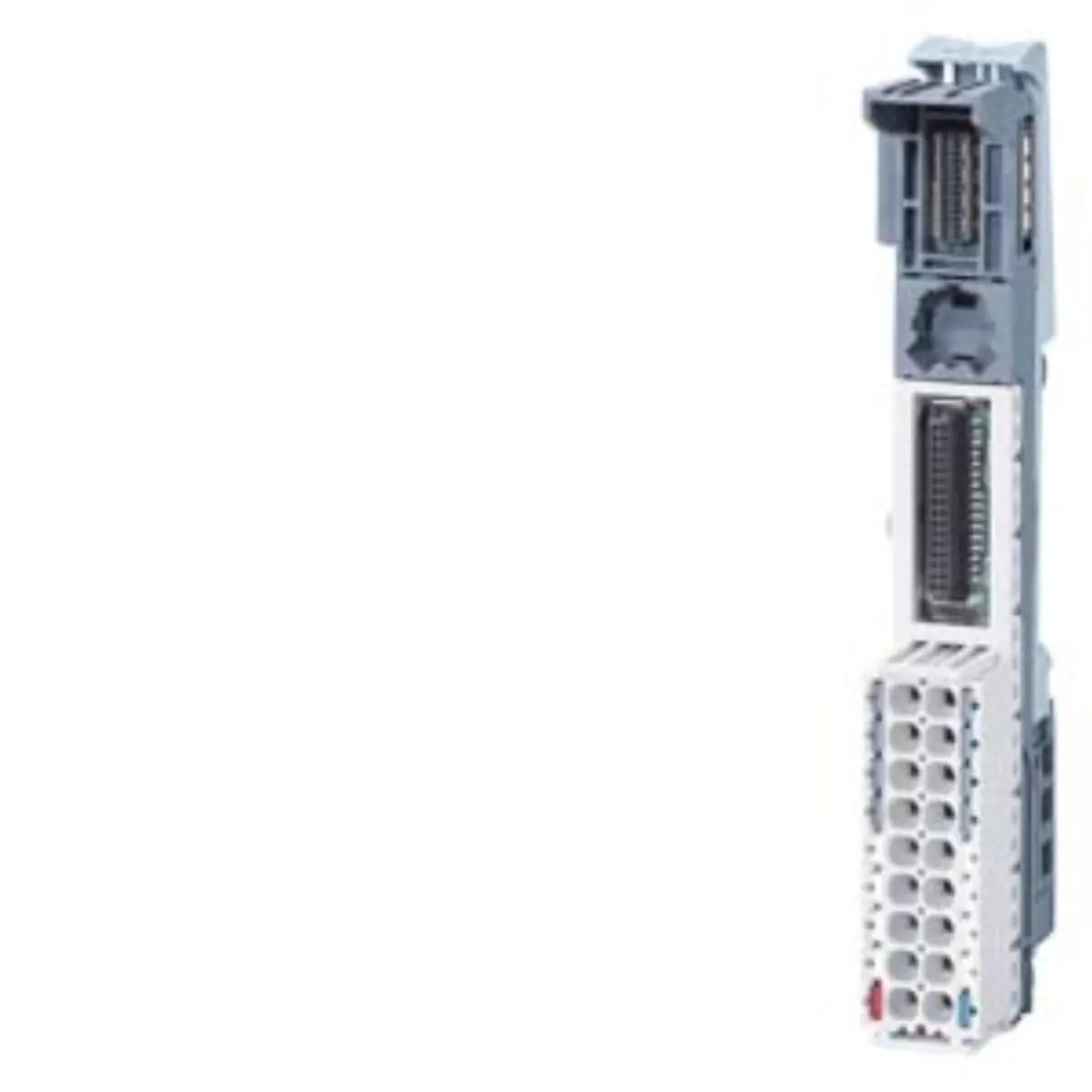

Siemens 6AG2193-6BP00-4DA0 SIPLUS Extreme I/O Module

Part number

6AG2193-6BP00-4DA0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

14.7 x 4.2 x 2.8 cm

Net weight

0.048 Kg

Source category

SIPLUS extreme RAIL TM PosInput 1 Counter and position detection module

• The module operates within an extended temperature range of -40 to +70 degrees Celsius. This rating ensures functionality in extreme ambient conditions without performance degradation.
• It supports overload tolerance level OT4 with ST1/2 capabilities. The system can withstand temperatures up to +85 degrees Celsius for durations of ten minutes.
• Physical dimensions are recorded at 14.7 by 4.2 by 2.8 centimeters. The compact form factor allows for efficient mounting within standard industrial control cabinet configurations.
• Net weight is listed as 0.048 kilograms, indicating a lightweight construction. This mass facilitates easier handling and installation compared to heavier legacy industrial components.
• The base design derives from the 6ES7193-6BP00-0DA0 model structure. Modifications include enhanced protection features and specific terminal configurations for demanding applications.
• Terminal type is specified as push-in BU type A0 configuration. This connection method simplifies wiring processes while maintaining secure electrical contact points for signal transmission.

• Identify the product by the full alphanumeric code 6AG2193-6BP00-4DA0. This unique identifier distinguishes it from other variants in the broader Siemens portfolio.
• Recognize the SIPLUS extreme branding as a key differentiator. This label signifies adherence to rigorous standards for environmental resistance and durability.
• Note the classification as a rail-based module within the ET 200SP series. This placement indicates its integration method and system hierarchy.
• Verify the presence of conformal coating as a critical feature. This protective layer is essential for modules deployed in corrosive or humid industrial settings.
