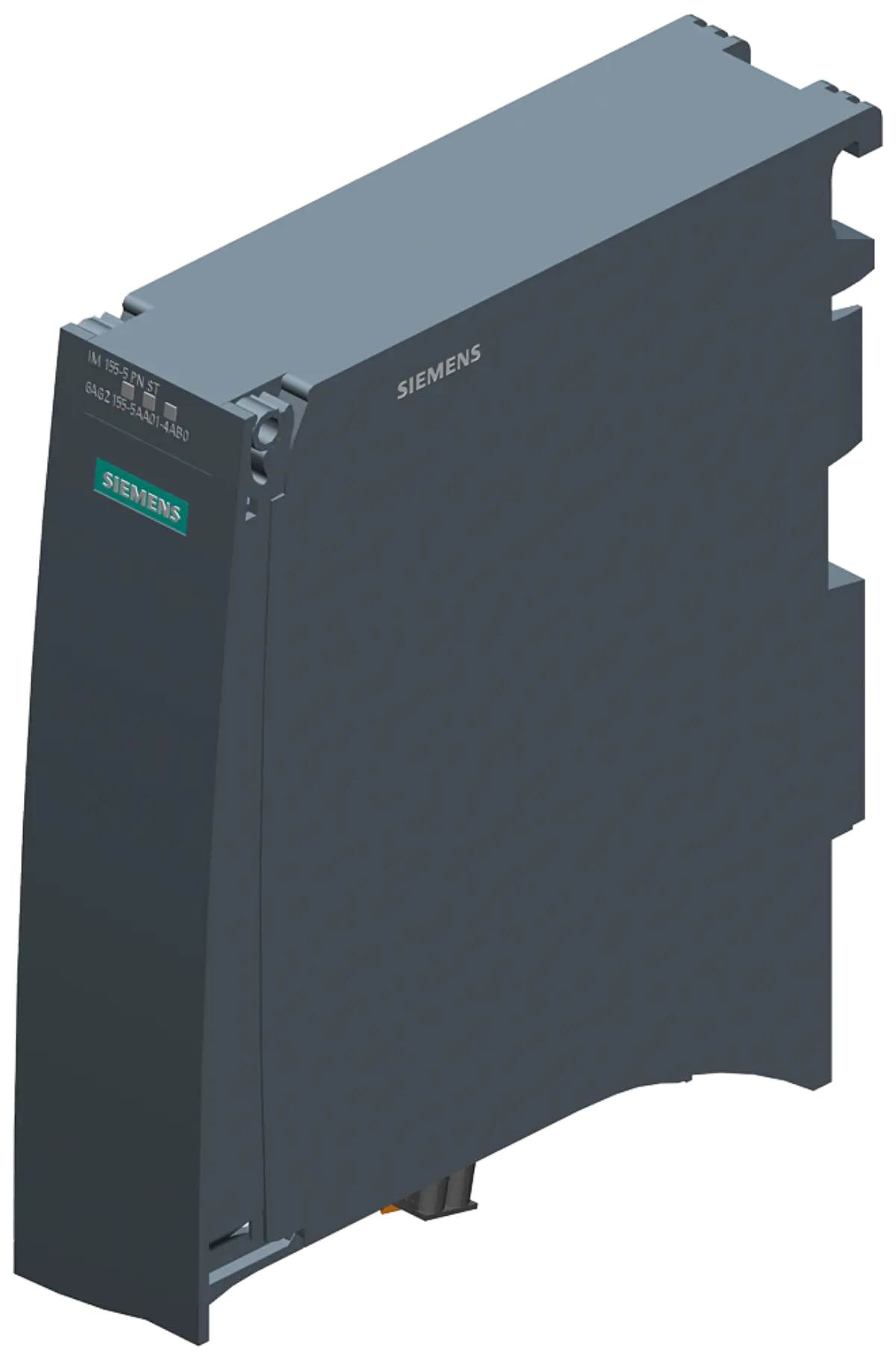

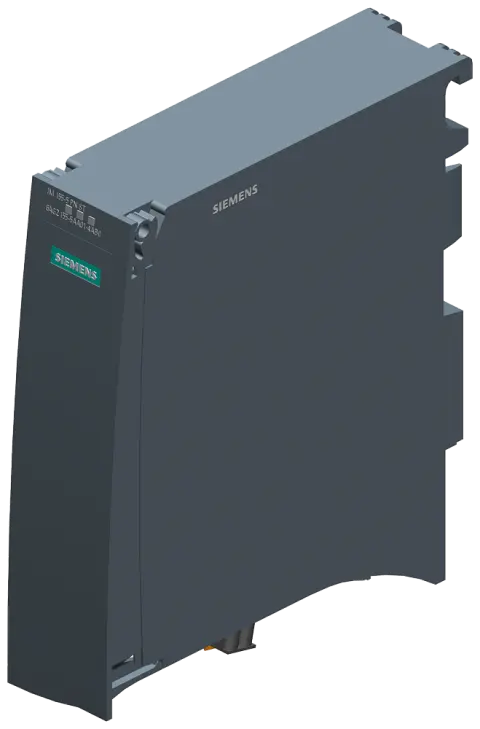

Siemens 6AG2155-5AA01-4AB0 SIPLUS ET 200MP IM 155-5 PN ST TX RAIL

Part number

6AG2155-5AA01-4AB0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

15.4 x 14.9 x 4.3 cm

Net weight

0.312 Kg

Source category

SIPLUS ET 200MP IM 155-5 PN ST TX RAIL

• The module functions as a central interface for ET 200MP electronic modules within distributed automation architectures. It enables robust communication via PROFINET IO protocols.
• Physical dimensions are recorded at 15.4 x 14.9 x 4.3 cm with a net weight of 0.312 Kg. These metrics assist in rack space planning and handling logistics.
• An integrated two-port switch facilitates network connectivity, supporting RJ45 shared device connections. This design simplifies cabling infrastructure for connected peripheral devices.
• The interface supports Multiple Registration Protocol (MRP) for ring topology redundancy. Isochronous mode firmware updates ensure precise synchronization for high-performance motion control applications.
• Configuration data storage includes support for I&M0 through I&M3 functions. These identifiers aid in asset management and device identification within complex network structures.
• The system allows connection of up to twelve I/O modules without a power supply. With an additional power supply unit, capacity extends to thirty modules.

• The part number 6AG2155-5AA01-4AB0 identifies the SIPLUS extreme version of the IM 155-5 PN ST TX RAIL.
• This designation distinguishes the coated unit from the standard industrial grade counterpart found in typical catalog listings.
• The suffix indicates specific environmental hardening features required for deployment in challenging industrial settings.
• Review the submitted model against project documentation to confirm alignment with extreme condition requirements.

Parameters are factual source fields retained for model review.

• Operating temperature range spans from -40°C to +70°C, exceeding standard industrial limits significantly.
• Overtemperature class OT4 with ST1/2 allows temporary exposure up to +85°C for ten-minute intervals.
• Conformal coating provides protection against moisture, dust, and corrosive agents common in harsh environments.
• Network latency specifications include isochronous mode performance with timing constraints greater than or equal to 0.25 ms.
• Power supply configuration impacts maximum module count, allowing thirty units when auxiliary power is present.

• Visual inspection should verify the presence of conformal coating on internal circuit board components.
• Labeling must clearly display the full part number 6AG2155-5AA01-4AB0 for accurate identification purposes.
• Connector ports should appear intact, specifically the RJ45 interfaces for PROFINET network attachment.
• Physical dimensions align with standard DIN rail mounting requirements for ET 200MP series hardware.

• Gather project specifications detailing environmental conditions such as temperature extremes and potential chemical exposure levels.
• Confirm network topology requirements including PROFINET switch integration and redundancy needs like MRP support.
• Calculate total I/O module count to determine if additional power supply units are necessary.
• Prepare technical drawings showing rack layout to ensure physical fitment of the 15.4 cm width module.

• Verify that the requested quantity matches the project scope before finalizing submission details.
• Ensure all technical parameters align with the specific environmental challenges of the installation site.
• Cross-reference the part number with documented Siemens documentation to confirm current lifecycle status.
• Include any special handling instructions or packaging requirements if the destination involves extreme transit conditions.
