6AG2138-6DB00-1BB1 SIPLUS ET 200SP Module Details

Part number

6AG2138-6DB00-1BB1

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

7.7 x 6.5 x 2.3 cm

Net weight

0.058 Kg

Source category

SIPLUS extreme RAIL TM Pulse 2x24V T1 Rail pulse output module

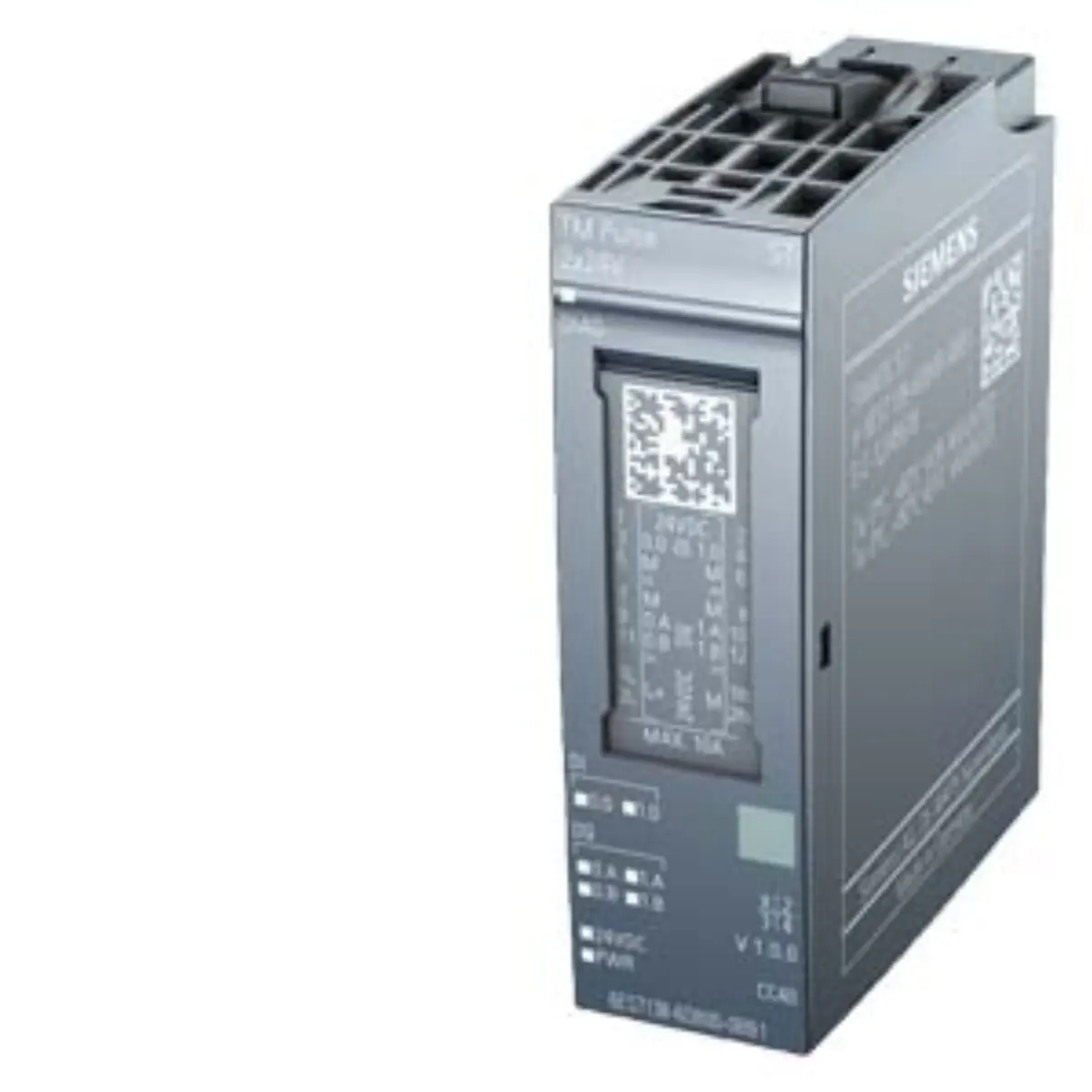

• Base model reference is 6ES7138-6DB00-0BB1, adapted for extended environmental resilience. Keep dimensions 7.7 x 6.5 x 2.3 cm and net weight 0.058 Kg unchanged while comparing project documents and product image evidence.
• Conformal coating provides additional protection against moisture, dust, and corrosive agents.
• Operating temperature range spans from -40°C up to +60°C for broad applicability.
• Overtemperature class OT2 allows operation at ST1/2 with +70°C for ten minutes.
• Two independent channels deliver PWM and pulse outputs for precise control applications.
• Maximum current output per channel is rated at 2A for proportional valves.

• Part number 6AG2138-6DB00-1BB1 identifies the specific SIPLUS extreme variant. Use the source path SIPLUS extreme RAIL technology modules / SIPLUS extreme RAIL TM Pulse 2x24V T1 Rail pulse output module to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Normalized part number 6AG21386DB001BB1 is used for internal database indexing.
• Product classification indicates active lifecycle status with restricted review notes.
• Category placement confirms inclusion within the broader I/O modules segment.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 7.7 cm width by 6.5 cm depth. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG2138-6DB00-1BB1 record before publication.
• Height measurement is listed at 2.3 cm for compact rack integration.
• Net weight is documented at 0.058 Kg for logistics and handling planning.
• Output type specifies pulse and PWM signals for motor and valve control.
• Channel count is fixed at two independent outputs for simultaneous operation.

• Visual inspection should confirm the presence of conformal coating on surfaces. Review Siemens 6AG2138-6DB00-1BB1 as I/O Modules with source category SIPLUS extreme RAIL TM Pulse 2x24V T1 Rail pulse output module, recorded lifecycle Active Product, and submitted model identity.
• Labeling must clearly display the full part number for verification purposes.
• Connector orientation should align with standard rail mounting procedures.
• Physical condition checks ensure no visible damage to terminal blocks.

• Review project documentation to verify environmental temperature requirements match specifications. Keep dimensions 7.7 x 6.5 x 2.3 cm and net weight 0.058 Kg unchanged while comparing project documents and product image evidence.
• Confirm control signal types require PWM or standard pulse output formats.
• Check current load calculations to ensure 2A per channel is sufficient.
• Prepare technical questions regarding overtemperature class OT2 operational limits.

• Source parameter review should validate all electrical ratings against design needs.
• Lifecycle status indicates active production but with specific review restrictions.
• Environmental ratings suggest suitability for harsh industrial locations and zones.
• Technical summary points provide a baseline for detailed engineering assessments.
