Inquiry for Siemens 6AG2136-6RA00-1BF0 Safety I/O Module

Part number

6AG2136-6RA00-1BF0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

7.9 x 6.8 x 3.00 cm

Net weight

0.068 Kg

Source category

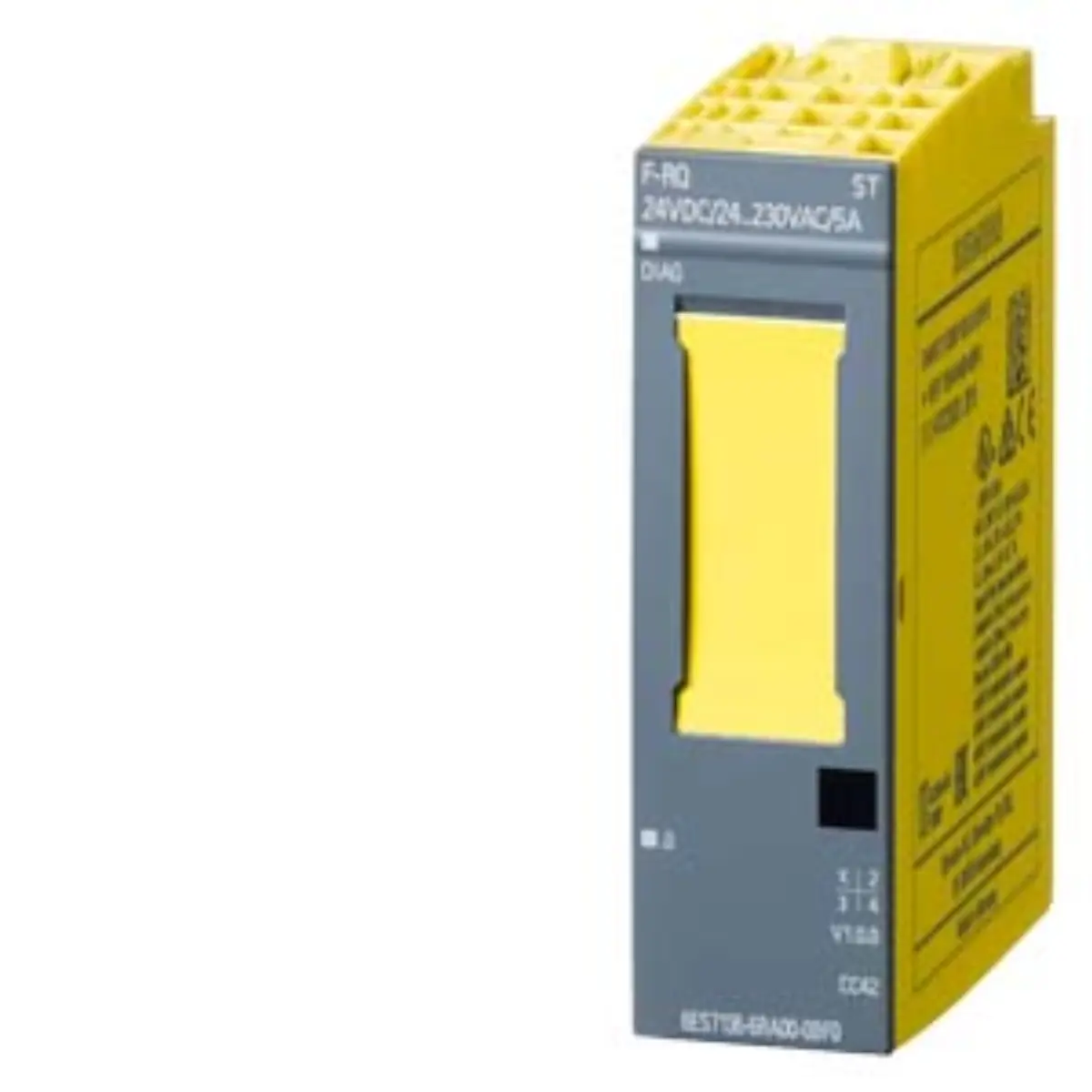

SIPLUS extreme RAIL digital F-output module relay

• Physical dimensions are recorded as 7.9 cm in length, 6.8 cm in width, and 3.00 cm in height.
• The net weight of the unit is listed at 0.068 kilograms, facilitating easy integration into standard rack configurations.
• Operating temperature range extends from -30 degrees Celsius to +60 degrees Celsius for consistent performance.
• Short-term overload tolerance allows operation up to OT1 with ST1/2 capability reaching +70 degrees Celsius for ten minutes.
• Overall module width is standardized at 20 mm, ensuring application context with the ET 200SP rail mounting system.
• Safety classification permits usage up to Performance Level e per ISO 13849-1 and SIL 3 per IEC 61508 standards.

• Base hardware reference links to the 6ES7136-6RA00-0BF0 model, adapted for extreme environmental resilience.
• Product lifecycle status is currently recorded as Active Product within the manufacturer catalog system.
• Classification indicates B: review restricted, requiring direct contact with designated Siemens review contacts for handling.
• Module type is categorized under SIPLUS extreme RAIL digital F-output module relay for fail-safe applications.

Parameters are factual source fields retained for model review.

• Output configuration consists of one relay output providing two normally open contacts for switching loads.
• Summation output current capacity is specified at 5 Amperes for combined load connections on the relay.
• Load voltage parameters support both 24 Volts DC and a range of 24 to 230 Volts AC inputs.
• Conformal coating application protects internal components against moisture, dust, and corrosive agents in harsh settings.
• Control dependency requires pairing with F-DQ modules, such as 6AG2136-6DB00-1CA0, to achieve full safety functionality.

• Visual inspection should confirm the presence of conformal coating on the circuit board surface area.
• Labeling must clearly display the full part number 6AG2136-6RA00-1BF0 for accurate inventory identification.
• Connector pins should be examined for straightness and absence of physical damage or corrosion signs.
• Mounting rail interface must align with standard ET 200SP slot dimensions for secure mechanical attachment.

• Verify that the target application environment falls within the specified -30 to +60 degrees Celsius range.
• Confirm that the control system includes application context F-DQ modules to manage the fail-safe logic properly.
• Check that the load voltage requirements match either 24 V DC or the 24-230 V AC spectrum.
• Ensure project documentation references ISO 13849-1 PL e or IEC 61508 SIL 3 safety integrity levels.

• Source parameter review confirms the module is listed as an active product in current catalogs.
• Project document review should validate that review restrictions align with internal inquiry preparation compliance guidelines.
• Technical specification cross-check ensures the 20 mm width fits within existing rack space allocations.
• Safety function verification requires confirmation of proper pairing with approved fail-safe digital input modules.
