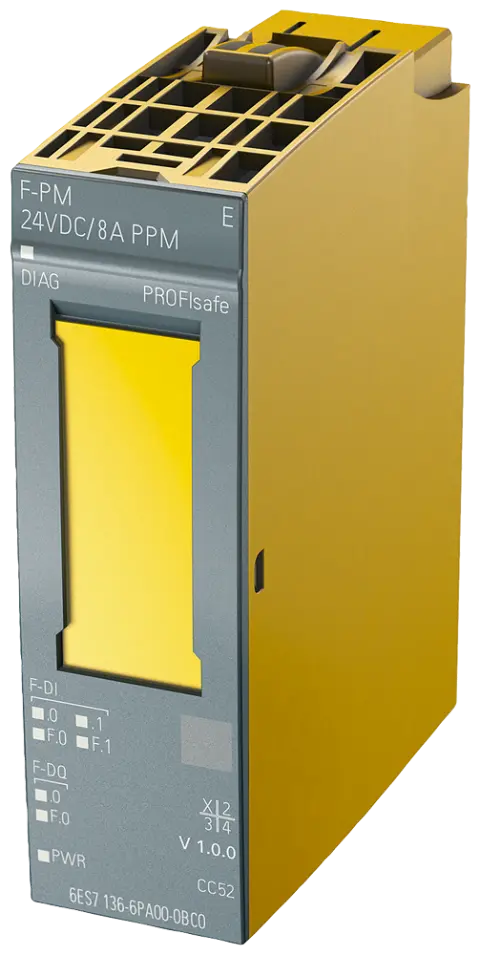

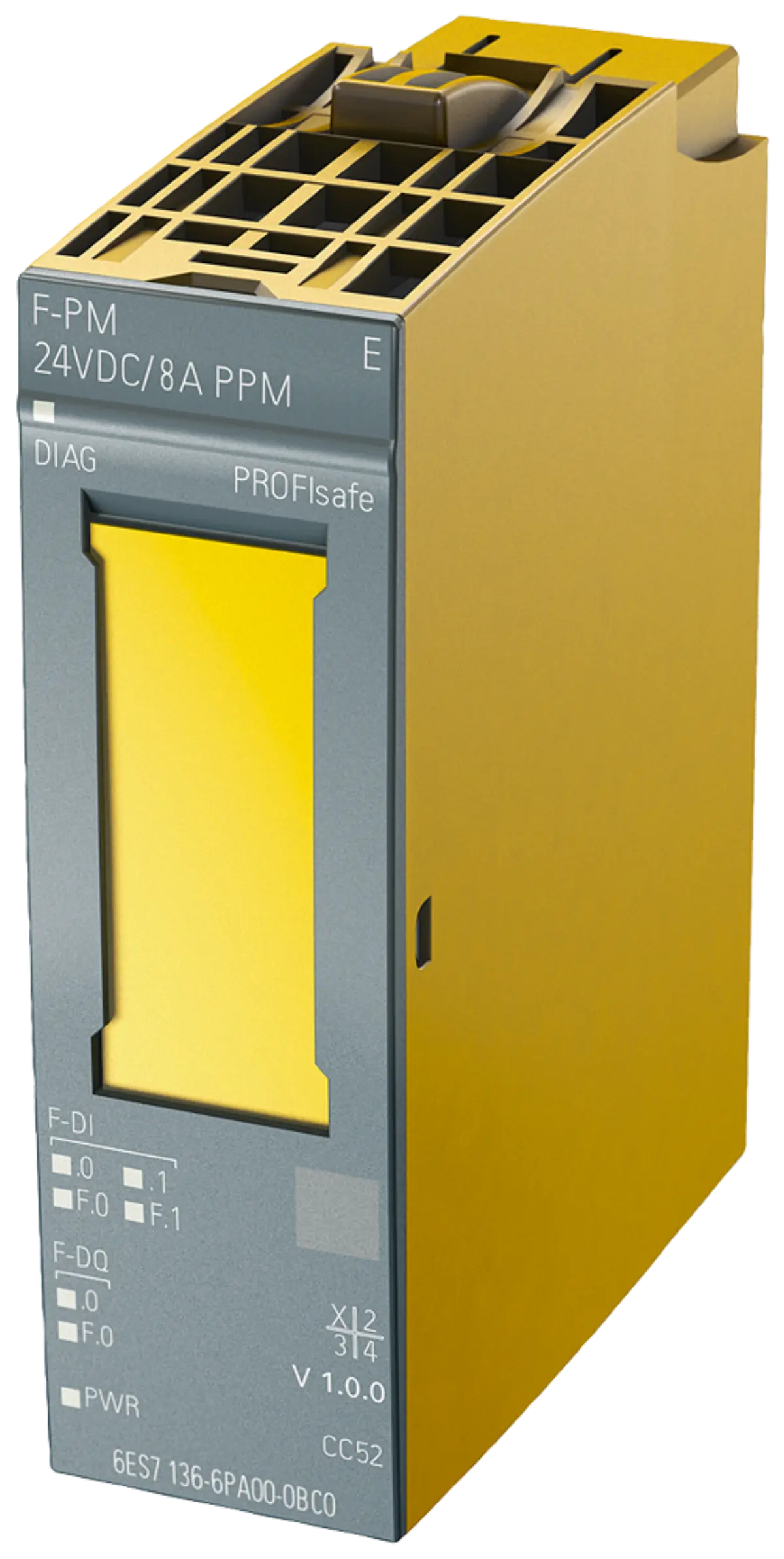

Siemens 6AG2136-6PA00-1BC0 SIPLUS ET 200SP F-PM-E Module

Part number

6AG2136-6PA00-1BC0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

8.9 x 6.6 x 3.8 cm

Net weight

0.084 Kg

Source category

SIPLUS extreme RAIL fail-safe special modules

• The module operates as a fail-safe power module supporting PROFIsafe communication standards for safety-critical applications.
• It provides a safe shutdown capability for both digital outputs and safe digital outputs at 24 V DC.
• The unit includes two safe digital inputs and one safe digital output configured for PPM signaling.
• Safety integrity levels include PL D/SIL2 for standard shutdowns and PL E/SIL3 for enhanced safety functions.
• Conformal coating protects internal components against moisture, dust, and corrosive agents common in industrial environments.
• Operating temperatures range from -30°C to +60°C with an overload tolerance of +70°C for ten minutes.

• The part number 6AG2136-6PA00-1BC0 identifies this specific variant within the Siemens SIPLUS extreme product line.
• It is categorized under SIPLUS extreme RAIL fail-safe special modules for precise inventory and technical reference.
• The designation indicates its derivation from the standard ET 200SP platform with added safety features.
• Review the submitted model number to ensure alignment with existing system architecture and safety requirements.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 8.9 cm in width, 6.6 cm in height, and 3.8 cm in depth.
• The net weight of the unit is listed as 0.084 kg, facilitating easy handling and installation procedures.
• Source parameter review confirms the voltage rating of 24 V DC for safe digital output operations.
• Technical documentation notes the specific overload temperature threshold of +70°C sustained for a duration of ten minutes.
• The product class indicates restricted review conditions, necessitating direct contact with designated Siemens review contacts for support.

• Visual inspection should verify the presence of conformal coating on the circuit board components.
• Check labeling clarity to ensure the part number 6AG2136-6PA00-1BC0 is legible and correctly printed.
• Examine connector pins for any signs of damage or corrosion that could affect electrical connectivity.
• Confirm physical dimensions match the recorded specifications of 8.9 x 6.6 x 3.8 cm for mounting application context.

• Gather project documentation specifying the required safety integrity level and PROFIsafe configuration details.
• Verify the ambient operating conditions to ensure they fall within the -30°C to +60°C range.
• Prepare system diagrams showing the integration points for the two safe digital inputs and one output.
• Document any specific environmental challenges such as humidity or chemical exposure for comprehensive assessment.

• Ensure all technical specifications align with the project's safety and operational requirements before submission.
• Cross-reference the part number with documented Siemens documentation to confirm current lifecycle status as active.
• Consider the physical constraints of the installation space given the compact dimensions of the unit.
• Initiate the inquiry process by contacting documented channels for further technical clarification and support.
