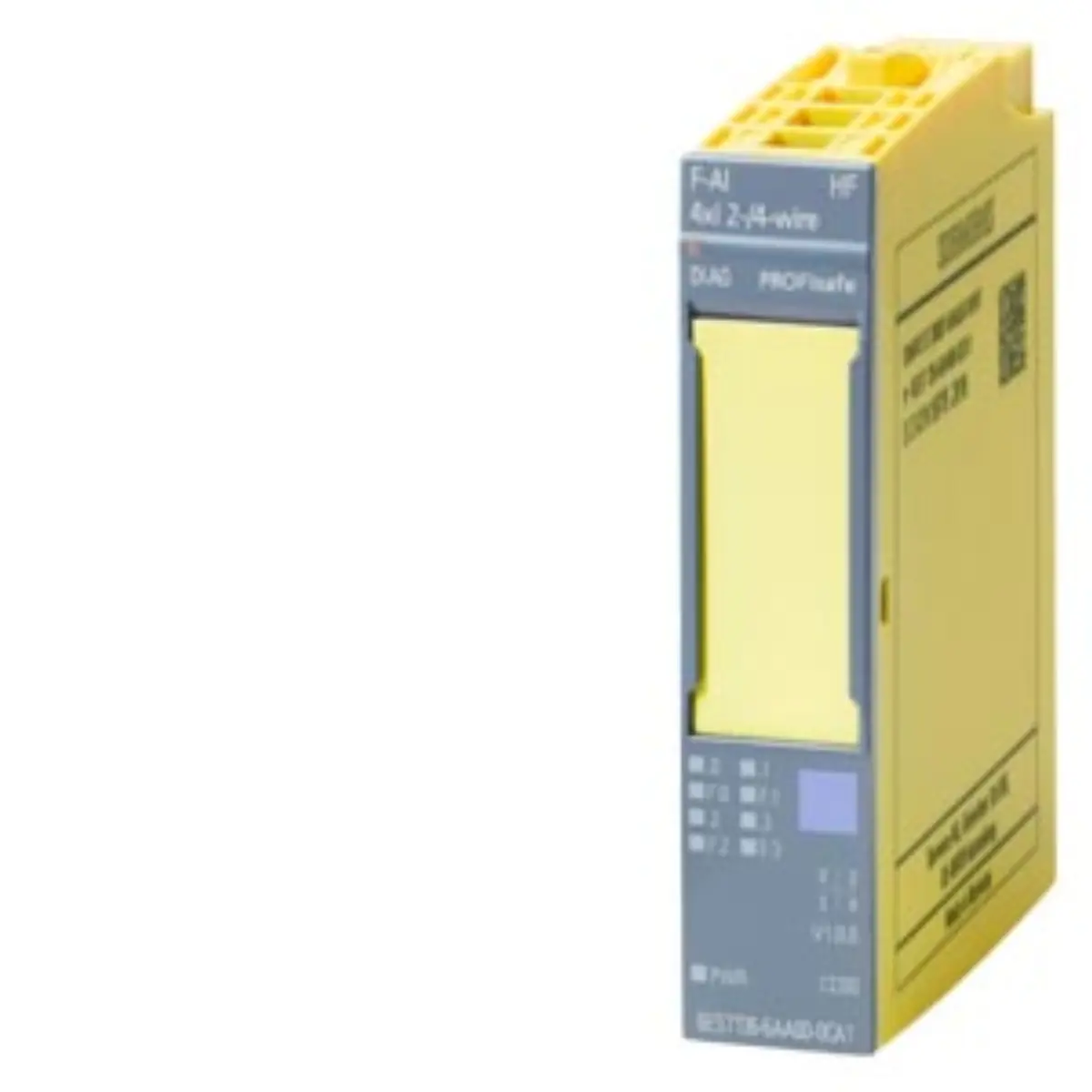

6AG2136-6AA00-1CA1 SIPLUS ET 200SP F-AI Module Details

Part number

6AG2136-6AA00-1CA1

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

15.4 x 15.1 x 4.6 cm

Net weight

0.064 Kg

Source category

SIPLUS extreme RAIL analog F-input modules

• Fail-safe analog inputs achieve Performance Level e per ISO 13849 standards for safety-critical processes. Keep dimensions 15.4 x 15.1 x 4.6 cm and net weight 0.064 Kg unchanged while comparing project documents and product image evidence.
• Safety integrity reaches SIL 3 classification according to IEC 61508 guidelines for reliable operation.
• Operating temperature range spans from -30°C to +60°C for consistent performance in varied climates.
• Overtemperature rating allows temporary exposure up to +70°C for ten minutes without functional loss.
• Conformal coating protects internal circuitry against moisture, dust, and corrosive agents in harsh settings.
• Base hardware derives from the 6ES7136-6AA00-0CA1 model with enhanced environmental protection modifications applied.

• The part number 6AG2136-6AA00-1CA1 identifies the specific variant within the SIPLUS extreme product line. Use the source path SIPLUS extreme RAIL failsafe I/O modules / SIPLUS extreme RAIL analog F-input modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Product class B indicates restricted review notes requiring direct contact with designated Siemens representatives.
• Lifecycle status is recorded as Active Product, confirming ongoing manufacturing and support review details.
• Category placement falls under I/O Modules, specifically within the analog input sub-segment for rail systems.

Parameters are factual source fields retained for model review.

• Physical dimensions are listed as 15.4 cm in width, 15.1 cm in height, and 4.6 cm in depth.
• Net weight is documented at 0.064 kg, facilitating easy handling during installation and maintenance tasks.
• Input configuration supports four channels capable of measuring current signals with flexible wiring options.
• Environmental ratings include extended temperature tolerance and protective coating listed for outdoor or industrial zones.
• Safety parameters align with international standards for functional safety in automated machinery operations.

• Visual inspection should confirm the presence of conformal coating on the module surface components.
• Labeling must display the full part number 6AG2136-6AA00-1CA1 clearly for accurate identification purposes.
• Connector types should match the ET 200SP system interface requirements for proper signal transmission.
• Physical condition checks verify no damage to pins or housing that could affect installation integrity.

• Verify project requirements against the specified temperature range and safety integrity level before submission.
• Confirm wiring configuration needs for two-wire or four-wire analog input connections in the design.
• Review review note constraints associated with Product Class B when planning inquiry preparation logistics carefully.
• Ensure documentation includes the exact part number to avoid confusion with similar base models listed.

• Cross-reference the base model 6ES7136-6AA00-0CA1 to understand fundamental electrical characteristics and signal types.
• Check local regulations regarding SIL 3 certification requirements for your specific application safety goals.
• Assess physical space constraints using the provided dimensions to ensure fit within control cabinet layouts.
• Consult technical support for detailed guidance on conformal coating maintenance and inspection procedures over time.
