Siemens 6AG2134-6JD00-1CA1 Analog Input Module Details

Part number

6AG2134-6JD00-1CA1

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

7.7 x 6.5 x 2.3 cm

Net weight

0.039 Kg

Source category

SIPLUS extreme RAIL analog inputs

• The module supports four channels for high-frequency analog input signals from various sensors. Keep dimensions 7.7 x 6.5 x 2.3 cm and net weight 0.039 Kg unchanged while comparing project documents and product image evidence.
• It accommodates both RTD and TC sensor types for versatile temperature measurement applications.
• Conformal coating is applied to enhance durability against moisture, dust, and corrosive agents.
• Operating temperature extends to minus forty degrees Celsius up to plus sixty degrees Celsius.
• Overtemperature protection allows operation at seventy degrees Celsius for ten-minute intervals.
• Channel diagnostics are included to monitor signal integrity and detect potential faults early.

• The part number 6AG2134-6JD00-1CA1 identifies this specific SIPLUS extreme variant. Use the source path Automation technology / SIPLUS I/O modules / SIPLUS extreme RAIL analog inputs to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• It is based on the standard 6ES7134-6JD00-0CA1 model with enhanced environmental protections.
• The product class indicates it is an active product requiring review contacts contact for review.
• Color code CC00 is recorded for visual identification within the I/O module series.

Parameters are factual source fields retained for model review.

• Resolution is specified as sixteen bits for precise analog signal conversion and processing. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG2134-6JD00-1CA1 record before publication.
• Accuracy is listed as plus or minus zero point two percent of full scale.
• Wiring configurations support two, three, or four-wire connections for different sensor types.
• Physical dimensions are recorded as seven point seven by six point five by two point three centimeters.
• Net weight is documented at zero point zero three nine kilograms for logistics planning.

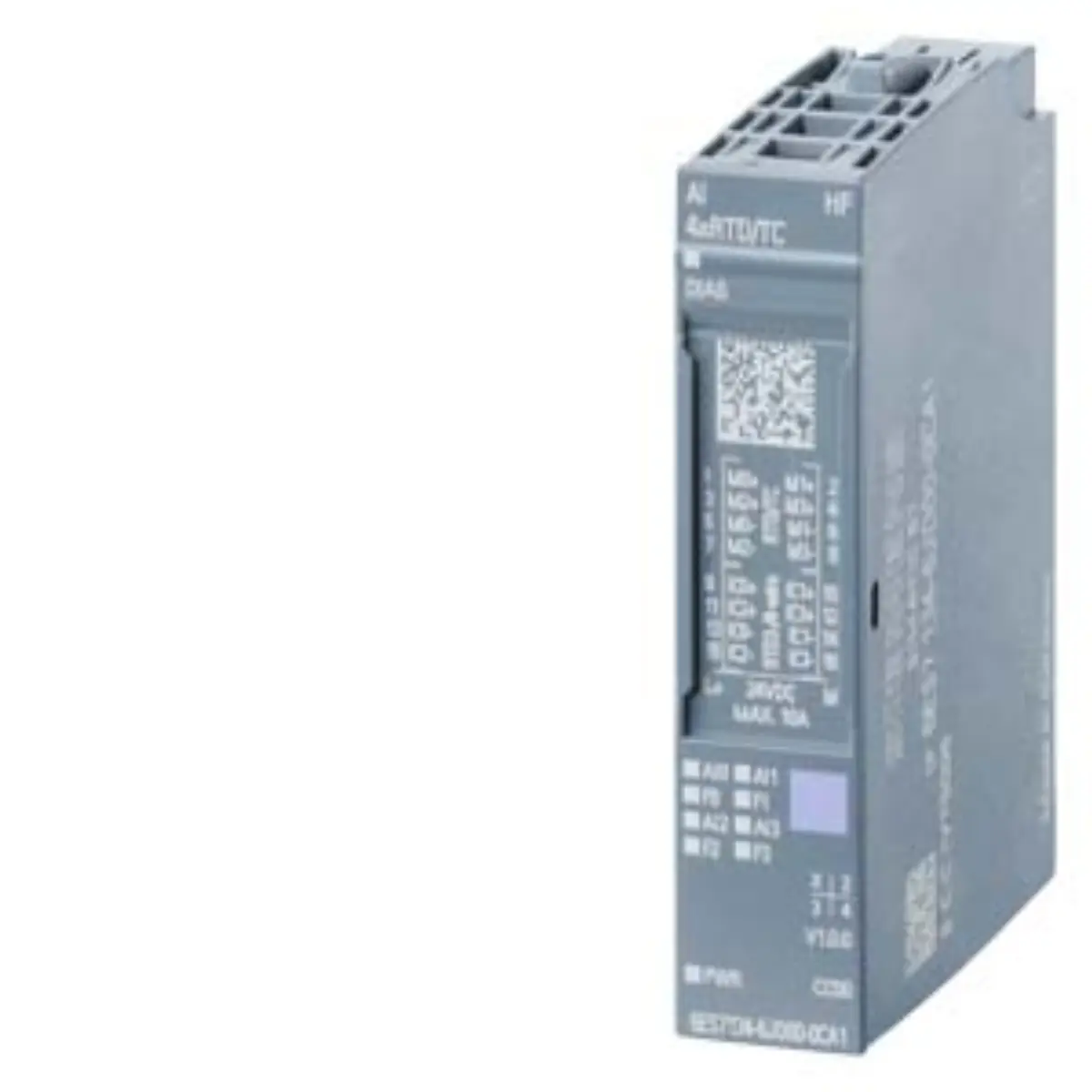

• Images typically show the front panel with terminal blocks for sensor connections. Review Siemens 6AG2134-6JD00-1CA1 as I/O Modules with source category SIPLUS extreme RAIL analog inputs, recorded lifecycle Active Product, and submitted model identity.
• The label displays the full part number and Siemens branding for verification purposes.
• Side views may highlight the DIN rail mounting mechanism for easy installation.
• Internal diagrams might illustrate the conformal coating coverage on critical electronic components.

• Verify the required sensor type matches the RTD or TC channel capabilities. Keep dimensions 7.7 x 6.5 x 2.3 cm and net weight 0.039 Kg unchanged while comparing project documents and product image evidence.
• Confirm the ambient temperature range fits within the specified minus forty to plus sixty degrees.
• Check if overtemperature protection at seventy degrees Celsius meets project safety requirements.
• Review wiring diagrams to ensure application context with two, three, or four-wire setups.

• Source parameter review confirms the active product lifecycle status for current projects.
• Model identification notes align with the SIPLUS ET 200SP platform specifications.
• Technical summary points cover all key electrical and environmental performance metrics.
• Inquiry preparation steps guide users through essential application context and configuration checks.
