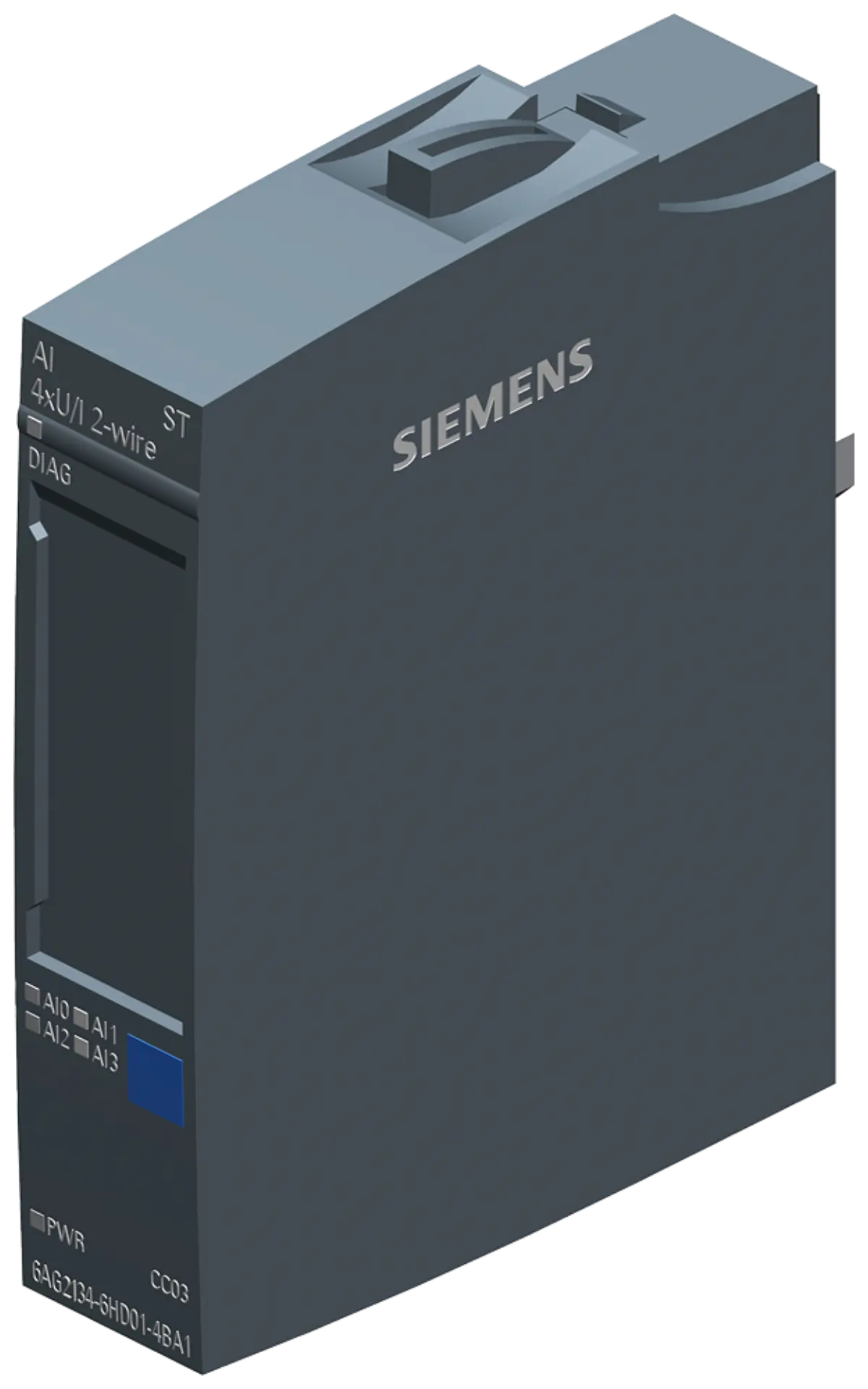

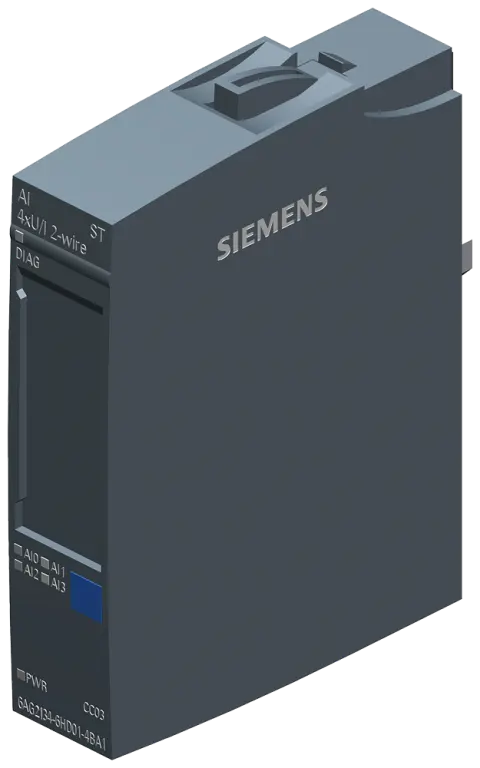

6AG2134-6HD01-4BA1 SIPLUS ET 200SP Analog Input Module

Part number

6AG2134-6HD01-4BA1

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

7.7 x 6.5 x 2.3 cm

Net weight

0.04 Kg

Source category

SIPLUS extreme RAIL analog inputs

• The module operates within an extended ambient temperature range of -40 to +70 degrees Celsius. Keep dimensions 7.7 x 6.5 x 2.3 cm and net weight 0.04 Kg unchanged while comparing project documents and product image evidence.
• It includes overload tolerance capability allowing operation up to 85 degrees Celsius for ten minutes.
• Signal processing utilizes a 16-bit resolution for accurate measurement of voltage and current inputs.
• Accuracy is maintained at plus or minus zero point three percent for reliable data collection.
• The device supports two-wire connection configurations for standard industrial sensor integration and monitoring.
• Built-in module diagnostics provide immediate feedback on operational status and potential hardware anomalies.

• The base platform derives from the 6ES7134-6HD01-0BA1 standard analog input module architecture. Use the source path Automation technology / SIPLUS I/O modules / SIPLUS extreme RAIL analog inputs to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• The prefix 6AG indicates this is a specialized variant within the Siemens automation portfolio.
• The suffix 4BA1 identifies the specific configuration for extreme environment applications and coatings.
• Color code CC03 is recorded for visual identification during installation and maintenance procedures.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as seven point seven by six point five by two point three centimeters. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG2134-6HD01-4BA1 record before publication.
• Net weight is listed as zero point zero four kilograms for lightweight mounting considerations.
• The product class designation indicates review restrictions requiring direct contact with Siemens review contacts.
• Lifecycle status is confirmed as an active product for ongoing project planning and sourcing.

• Visual inspection should confirm the presence of conformal coating on the internal circuit board. Review Siemens 6AG2134-6HD01-4BA1 as I/O Modules with source category SIPLUS extreme RAIL analog inputs, recorded lifecycle Active Product, and submitted model identity.
• Check terminal blocks for secure connection points supporting the four analog input channels.
• Verify the labeling matches the part number 6AG2134-6HD01-4BA1 for accurate identification.
• Ensure diagnostic LEDs are visible and functional for real-time status monitoring capabilities.

• Review project documentation to confirm the need for extreme temperature operational capabilities. Keep dimensions 7.7 x 6.5 x 2.3 cm and net weight 0.04 Kg unchanged while comparing project documents and product image evidence.
• Verify that the four-channel analog input requirement aligns with system design specifications.
• Check if the two-wire connection type matches the installed sensor infrastructure requirements.
• Prepare technical questions regarding the review restriction policy for this specific product class.

• Confirm all technical parameters match the specific requirements of the target application environment.
• Note the extended temperature range suitability for outdoor or uncontrolled industrial locations.
• Understand the review restriction policy before initiating any formal inquiry preparation inquiries.
• Cross-reference the base model 6ES7134-6HD01-0BA1 for standard feature comparisons if needed.
