Siemens 6AG2134-6HD01-1BA1 Analog Input Module Details

Part number

6AG2134-6HD01-1BA1

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Phase Out Announce

Dimensions

7.7 x 6.5 x 2.3 cm

Net weight

0.042 Kg

Source category

SIPLUS extreme RAIL analog inputs

• The module operates within a temperature range of -40 to +60 degrees Celsius continuously. Keep dimensions 7.7 x 6.5 x 2.3 cm and net weight 0.042 Kg unchanged while comparing project documents and product image evidence.
• It withstands short-term overload temperatures up to 70 degrees Celsius for ten minutes duration.
• Analog resolution is provided at 16 bits with a specified accuracy of plus or minus 0.3 percent.
• The device utilizes conformal coating to protect internal circuits against moisture, dust, and corrosive agents.
• Module diagnostics are integrated to assist in identifying faults or operational anomalies during runtime.
• Physical dimensions measure approximately 7.7 by 6.5 by 2.3 centimeters with a net weight of 0.042 kilograms.

• The part number 6AG2134-6HD01-1BA1 identifies this specific variant within the ET 200SP product line. Use the source path Automation technology / SIPLUS I/O modules / SIPLUS extreme RAIL analog inputs to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• It is classified under the SIPLUS I/O modules category for extreme environmental applications.
• The base hardware reference is linked to the standard 6ES7134-6HD01-0BA1 module design.
• Color code CC03 is recorded for visual identification and inventory management purposes.

Parameters are factual source fields retained for model review.

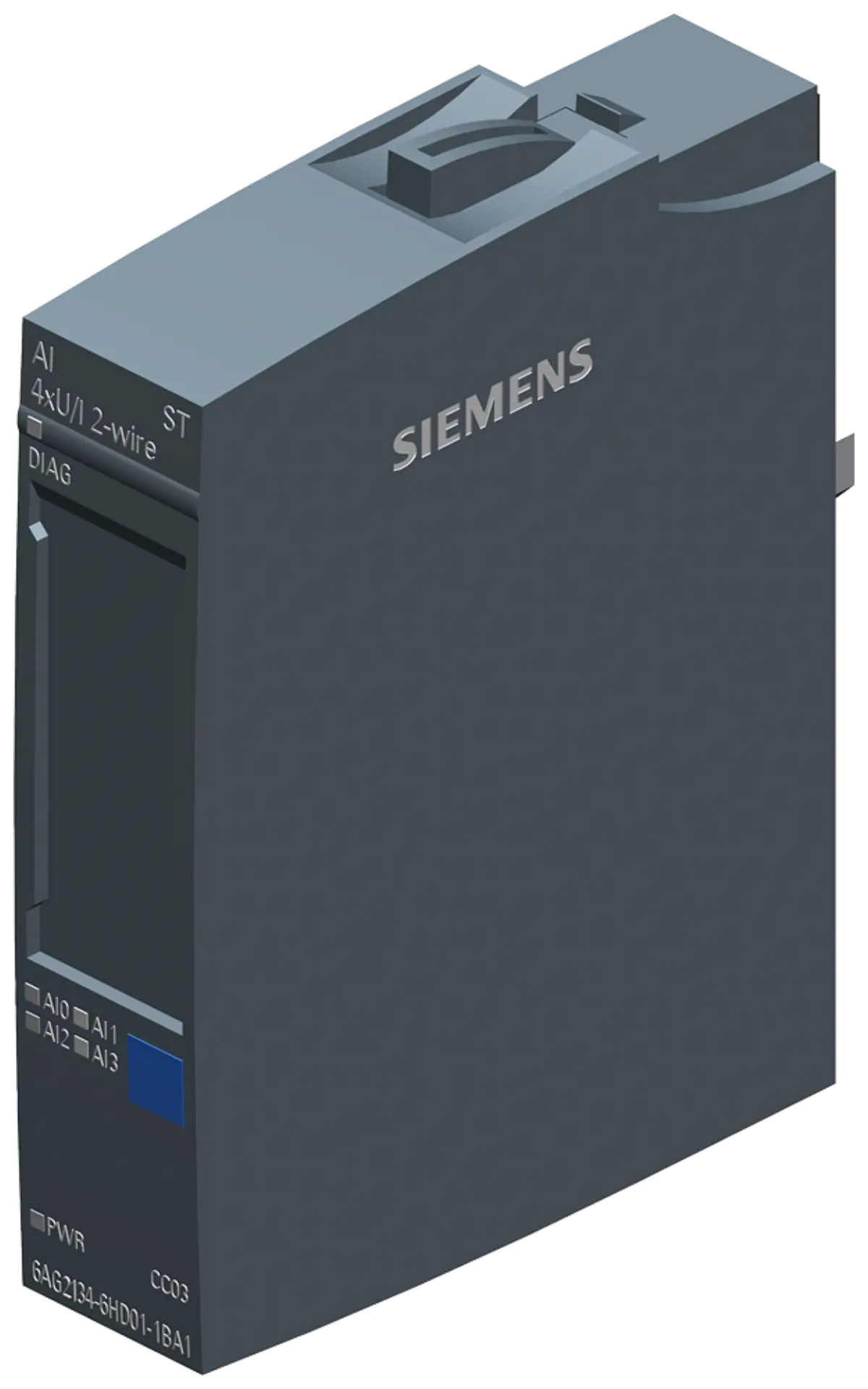

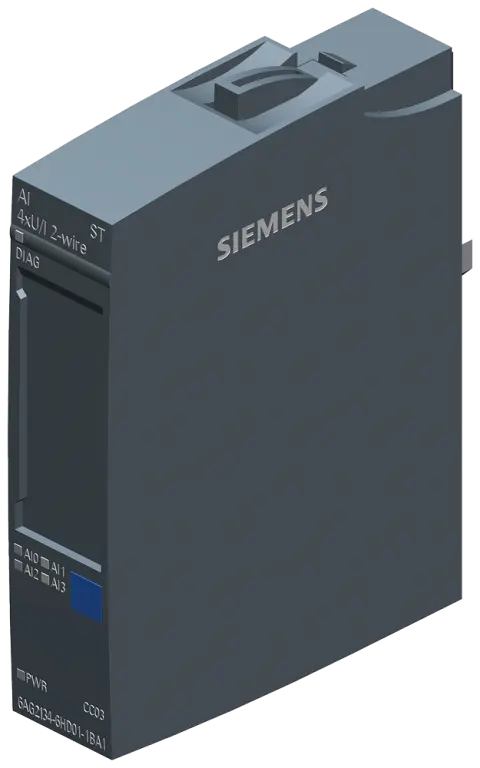

• Input signal types include both voltage and current measurements for versatile sensor integration. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG2134-6HD01-1BA1 record before publication.
• The two-wire connection scheme is supported for simplified wiring in control cabinet setups.
• A1 designation indicates the specific hardware revision or configuration level for this unit.
• ST1/2 thermal rating applies for temporary overload scenarios exceeding normal operating limits.
• OT1 classification defines the overall temperature class for safe operation in defined zones.

• Visual inspection should confirm the presence of conformal coating on the circuit board surface. Review Siemens 6AG2134-6HD01-1BA1 as I/O Modules with source category SIPLUS extreme RAIL analog inputs, recorded lifecycle Phase Out Announce, and submitted model identity.
• Check that the labeling clearly displays the full part number and Siemens branding.
• Verify the connector pins are intact and free from physical damage or corrosion.
• Ensure the module housing shows no signs of cracking or structural deformation.

• Review the submitted model number to ensure it matches your system requirements exactly.
• Confirm the environmental conditions of your installation site against the stated temperature ranges.
• Document the specific analog signal types required for your connected sensors or transducers.
• Prepare project specifications detailing the need for extended temperature and protective coating features.

• The product lifecycle status is currently listed as Phase Out Announce for this model.
• Product class B indicates review restrictions requiring direct contact with designated Siemens contacts.
• Source parameter review confirms the technical specifications align with the SIPLUS extreme standards.
• Project document review should account for the phase-out status when planning long-term deployments.
