Siemens 6AG2134-6GD01-4BA1 Analog Input Module

Part number

6AG2134-6GD01-4BA1

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

7.7 x 6.5 x 2.3 cm

Net weight

0.042 Kg

Source category

SIPLUS extreme RAIL analog inputs

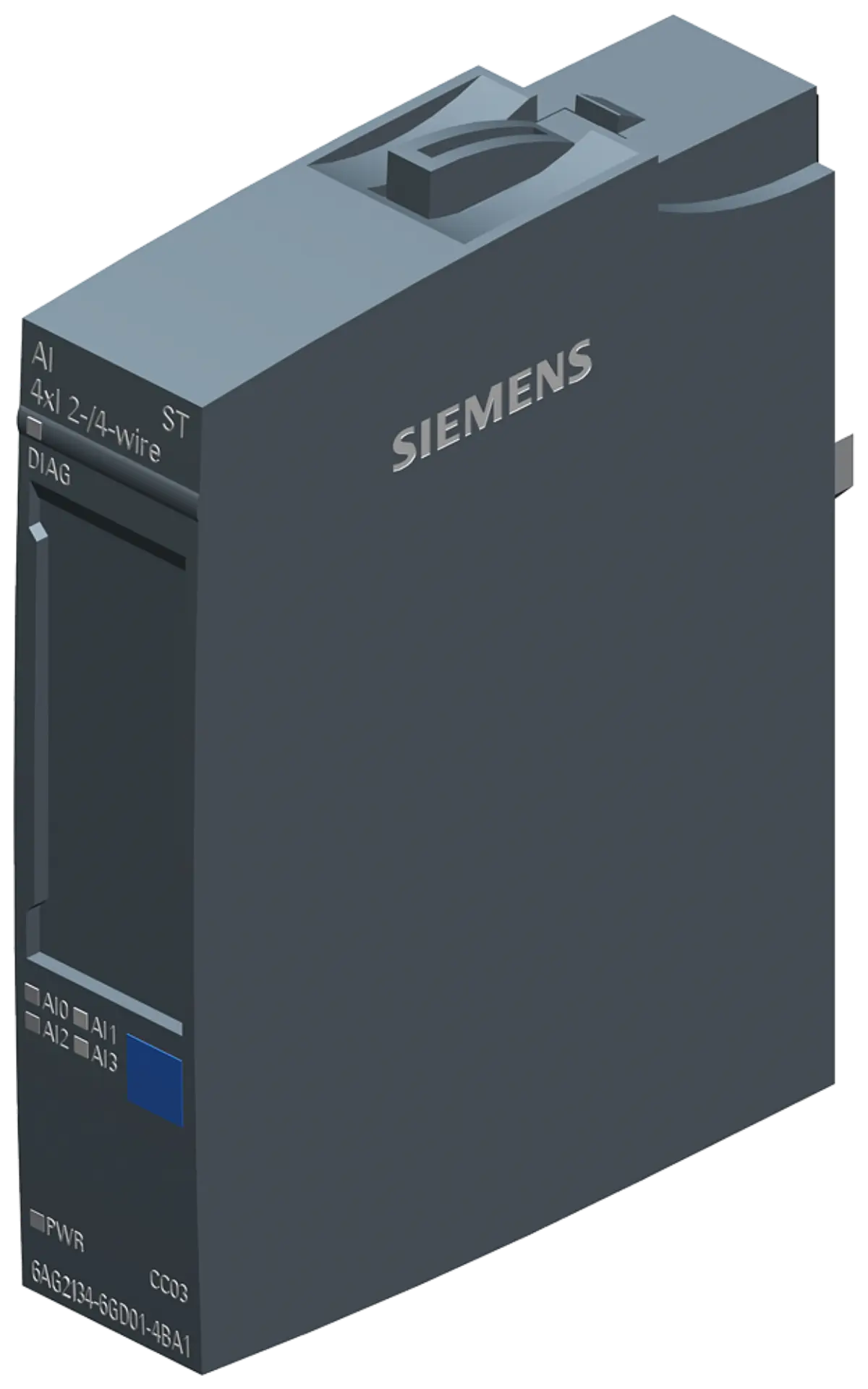

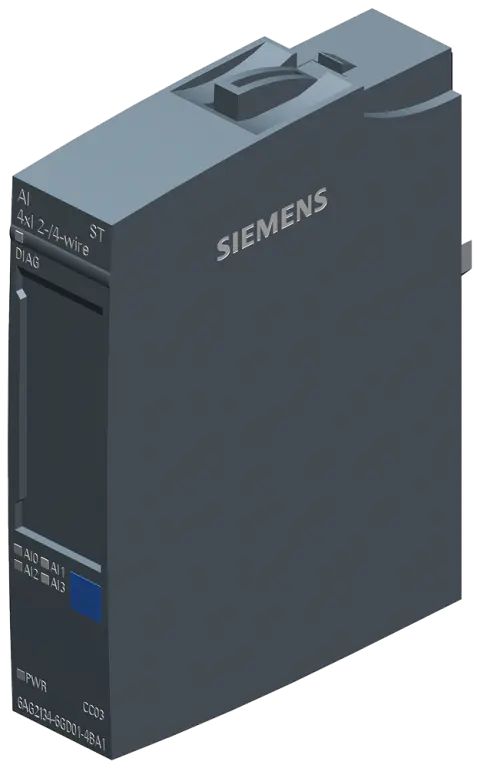

• Operating temperature range spans from minus forty degrees Celsius to plus seventy degrees Celsius. Keep dimensions 7.7 x 6.5 x 2.3 cm and net weight 0.042 Kg unchanged while comparing project documents and product image evidence.
• The module withstands overload temperature ST1/2 reaching eighty-five degrees Celsius for ten minutes.
• Conformal coating protects internal components against moisture, dust, and corrosive industrial atmosphere factors.
• Color code CC03 identifies the specific variant within the broader ET 200SP product family lineup.
• Net weight measures approximately zero point zero four two kilograms for lightweight integration purposes.
• Physical dimensions are recorded as seven point seven by six point five by two point three centimeters.

• Base model reference links to 6ES7134-6GD01-0BA1 with enhanced environmental protection features added. Use the source path Automation technology / SIPLUS I/O modules / SIPLUS extreme RAIL analog inputs to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• SIPLUS designation indicates suitability for extreme ambient conditions beyond standard industrial automation limits.
• ET 200SP classification places this unit within the distributed I/O system portfolio structure.
• AI prefix confirms the primary function as an analog input interface for process signals.

Parameters are factual source fields retained for model review.

• Input type specifies current measurement capability for transmitters requiring two or four wire setups. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG2134-6GD01-4BA1 record before publication.
• Resolution is fixed at sixteen bits ensuring adequate precision for most industrial control applications.
• Diagnostics feature allows monitoring of channel status and potential faults during system operation.
• Thermal class OT4 defines the overload tolerance level for short-term high-temperature exposure events.
• Lifecycle status is listed as active product indicating ongoing manufacturing and support review details.

• Visual inspection should confirm the presence of conformal coating on exposed circuit board areas. Review Siemens 6AG2134-6GD01-4BA1 as I/O Modules with source category SIPLUS extreme RAIL analog inputs, recorded lifecycle Active Product, and submitted model identity.
• Label readability must be verified to ensure part number matches 6AG2134-6GD01-4BA1 exactly.
• Connector integrity checks should focus on the screw terminal blocks for secure wiring attachment.
• Module labeling must display the correct color code CC03 for proper identification in racks.

• Verify project requirements against the specified temperature range of minus forty to plus seventy degrees.
• Confirm wiring scheme matches either two-wire or four-wire transmitter connections for signal input.
• Check rack slot review details and ensure physical dimensions fit within the chosen ET 200SP station.
• Review diagnostic needs to ensure module diagnostics align with your system monitoring strategy goals.

• Product class B indicates review restrictions requiring direct contact with Siemens review contacts for handling.
• Source parameter review should validate all electrical specifications against original equipment manufacturer documentation.
• Project document review is recommended to ensure compliance with specific site environmental conditions.
• Submitted model verification helps prevent request errors by cross-referencing the full part number string.
