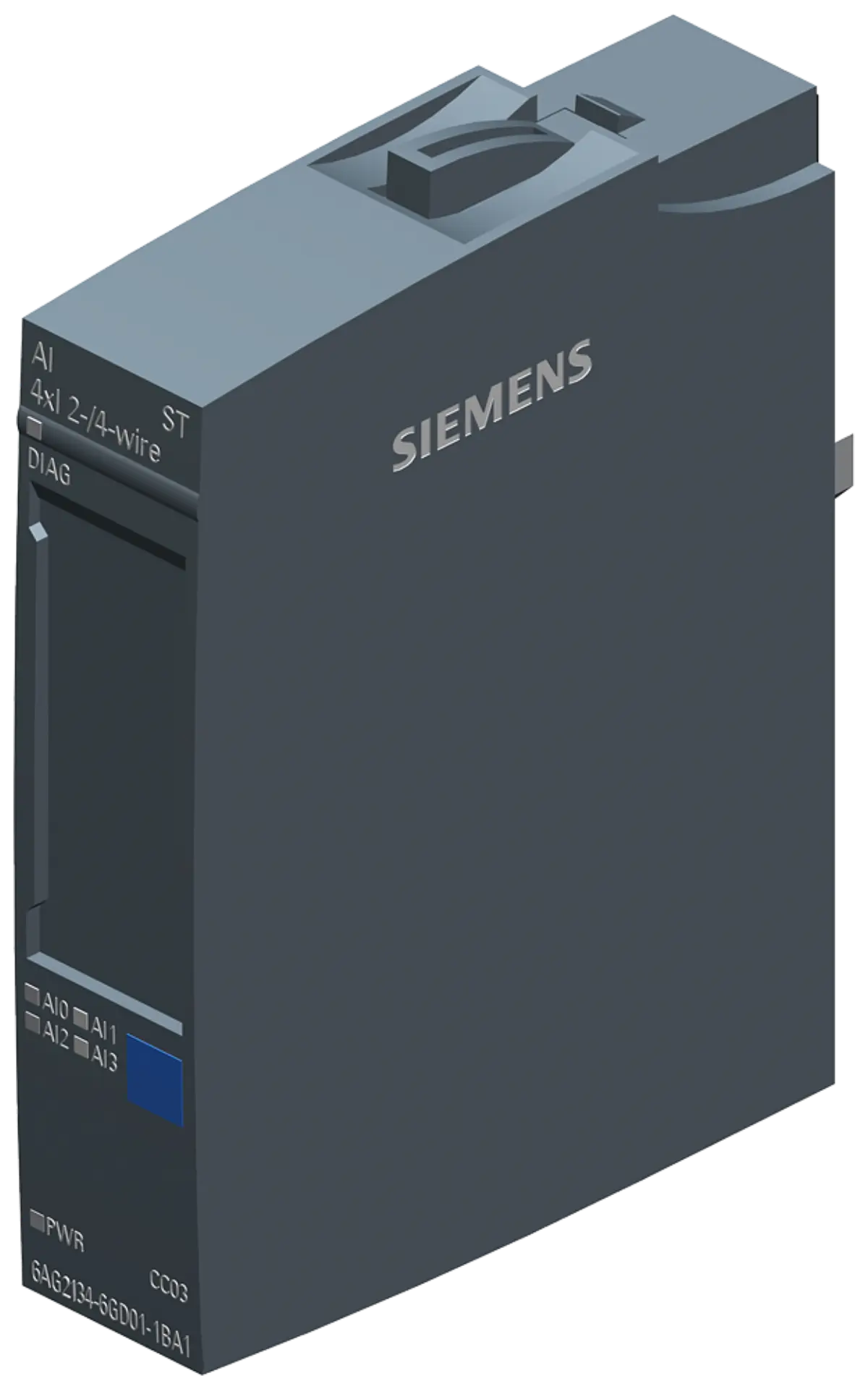

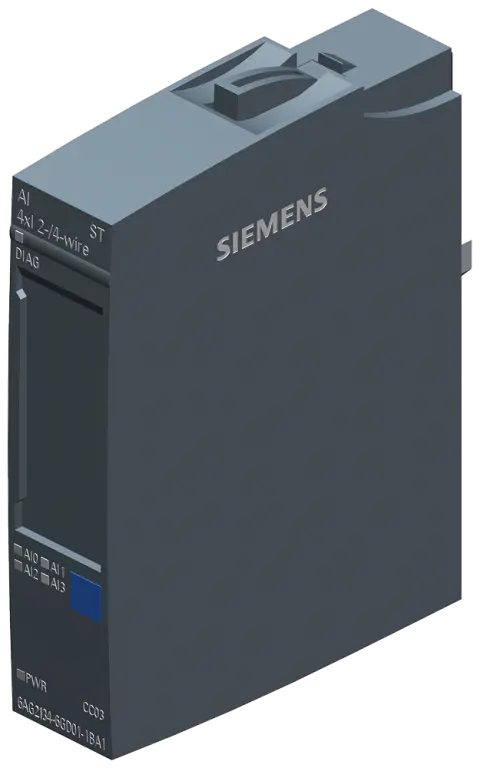

6AG2134-6GD01-1BA1 SIPLUS ET 200SP Analog Input Module

Part number

6AG2134-6GD01-1BA1

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Phase Out Announce

Dimensions

7.7 x 6.5 x 2.3 cm

Net weight

0.042 Kg

Source category

SIPLUS extreme RAIL analog inputs

• This module supports four current inputs configured for either two-wire or four-wire connection schemes, offering flexible integration options.
• The device operates within an extended ambient temperature range of minus forty degrees Celsius to plus sixty degrees Celsius for continuous use.
• Short-term overload tolerance allows operation up to seventy degrees Celsius for ten-minute durations, designated as OT1 with ST1/2 capability.
• Signal resolution is provided at sixteen bits, ensuring accurate data capture for precision monitoring and control applications in automated systems.
• Accuracy is recorded at plus or minus zero point three percent, maintaining high fidelity for critical measurement tasks and process variables.
• Physical dimensions measure seven point seven by six point five by two point three centimeters, with a net weight of forty-two grams.

• The part number 6AG2134-6GD01-1BA1 identifies this specific variant within the Siemens SIMATIC ET 200SP distributed I/O system portfolio.
• Color code CC03 is associated with this module, aiding in visual identification and inventory management during installation procedures.
• Module diagnostics are included, providing status information to assist in troubleshooting and maintaining system uptime effectively.
• The product class indicates review restrictions, requiring direct contact with Siemens review contacts for any reverse logistics or exchange processes.

Parameters are factual source fields retained for model review.

• Review the submitted model specifications to confirm suitability for your specific environmental conditions and electrical interface requirements.
• Verify the temperature ratings align with your operational environment, noting the extended range capabilities for extreme conditions.
• Check the diagnostic features to ensure they meet your system monitoring needs and integration protocols.
• Confirm the physical dimensions and weight constraints fit within your rack or mounting configuration space limitations.

• Images typically display the front panel indicators and connection terminals relevant to the analog input configuration.
• Visuals may highlight the conformal coating application and labeling that distinguishes this SIPLUS extreme variant from standard models.
• Reference photos often show the module installed in the ET 200SP base unit for context on assembly.
• Technical diagrams might accompany images to illustrate wiring configurations for two-wire and four-wire sensor connections.

• Prepare your project documentation detailing the required quantity and specific application environment for accurate assessment.
• Include any special mounting or cabling requirements to ensure the module integrates seamlessly into your existing setup.
• Note the lifecycle status as Phase Out Announce when planning long-term supply chain strategies and maintenance schedules.
• Contact your designated Siemens review contacts to initiate the inquiry process for this restricted review class product.

• Ensure all technical parameters match your system design before proceeding with the formal inquiry submission process.
• Consider the phase-out status when evaluating long-term maintenance and support review details for your automation infrastructure.
• Verify that your engineering team understands the specific review restrictions associated with this product class level.
• Cross-reference the base model 6ES7134-6GD01-0BA1 documentation to understand the foundational capabilities enhanced by this SIPLUS version.
