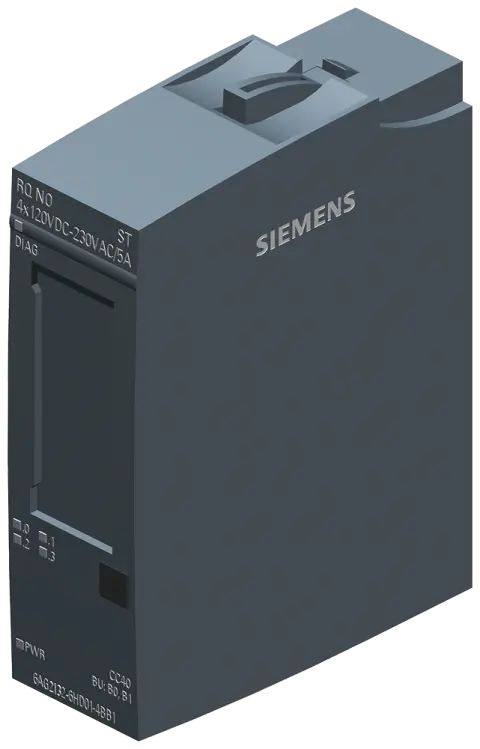

Siemens 6AG2132-6HD01-4BB1 SIPLUS ET 200SP Digital Output Module

Part number

6AG2132-6HD01-4BB1

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

7.9 x 6.8 x 3.00 cm

Net weight

0.052 Kg

Source category

SIPLUS extreme RAIL digital outputs

• Operating temperature range spans from -40°C to +70°C, ensuring functionality in severe climatic zones.
• The module withstands overload temperature of 85°C for up to ten minutes during transient thermal events.
• Physical dimensions measure 7.9 cm in width, 6.8 cm in depth, and 3.00 cm in height for compact mounting.
• Net weight is recorded at 0.052 Kg, facilitating easy integration into existing rack structures without heavy support.
• Output configuration utilizes four relay channels rated for 120VDC or 230VAC loads with normally open contact logic.
• Module diagnostics monitor supply voltage status to alert operators of potential power irregularities before failure occurs.

• Brand designation confirms this unit originates from Siemens industrial automation product lines under the SIPLUS brand.
• Category classification places this device within the broader scope of IO modules for distributed control systems.
• Lifecycle status is listed as Active Product, indicating ongoing manufacturing and technical support review details for this model.
• Product class indicates restricted review notes, requiring direct contact with documented Siemens review contacts for handling procedures.

Parameters are factual source fields retained for model review.

• Source category path identifies this item under Automation technology, specifically SIPLUS IO modules for extreme conditions.
• Detailed lineage traces back to SIPLUS extreme RAIL digital outputs, highlighting its specialized environmental protection features.
• Base model reference 6ES7132-6HD01-0BB1 serves as the foundational hardware platform upon which this enhanced variant is built.
• Color code CC40 is assigned to this unit, aiding in visual identification and inventory management within control panels.

• Visual inspection should confirm the presence of conformal coating on the printed circuit board assembly components.
• Label verification must match the part number 6AG2132-6HD01-4BB1 clearly printed on the module front faceplate.
• Connector alignment checks ensure the plug-in mechanism fits standard ET 200SP base units without physical obstruction.
• Relay terminal markings should correspond to the specified normally open configuration for correct wiring diagram interpretation.

• Review project documentation to verify that the -40°C to +70°C temperature range meets site environmental requirements.
• Confirm that the 120VDC or 230VAC load specifications align with the controlled equipment voltage ratings and types.
• Check mechanical constraints to ensure the 7.9 x 6.8 x 3.00 cm footprint fits within the designated rack space.
• Prepare technical queries regarding the OT4 overload rating and ST1/2 thermal stress limits for critical applications.

• Verify that the substitute value output feature is necessary for your specific process control logic requirements.
• Ensure that the supply voltage monitoring capability integrates correctly with your central diagnostic communication protocols.
• Assess whether the restricted review note class impacts your inquiry preparation strategy and risk management planning.
• Cross-reference the conformal coating specification with your facility's chemical exposure levels to confirm adequate protection.
