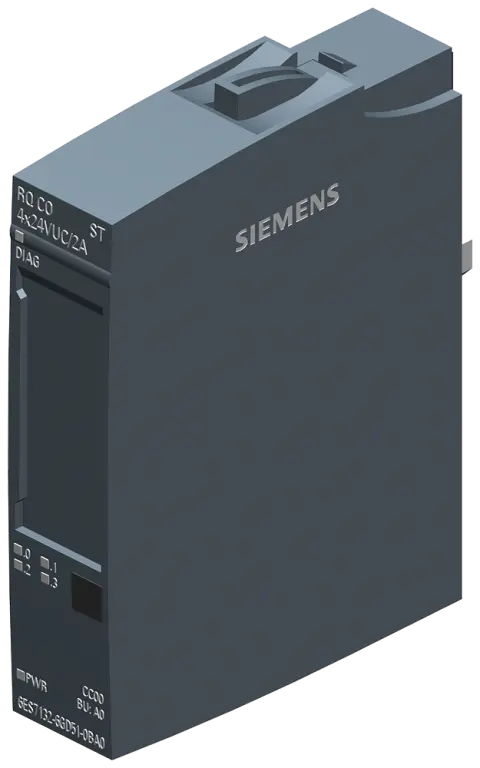

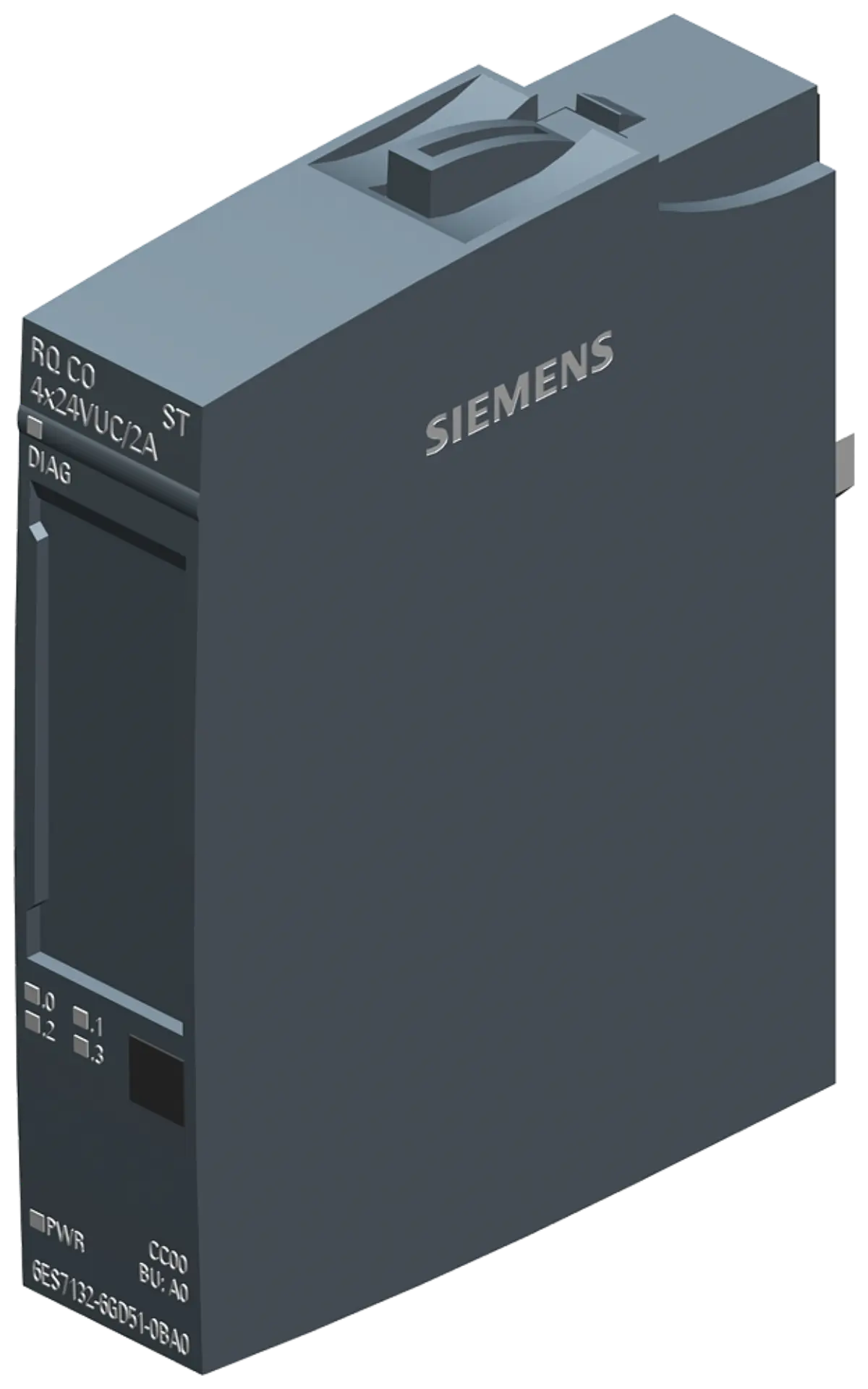

6AG2132-6GD51-4BA0 Signal Relay Module Inquiry

Part number

6AG2132-6GD51-4BA0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

7.7 x 6.5 x 2.3 cm

Net weight

0.038 Kg

Source category

SIPLUS extreme RAIL digital outputs

• The module functions as a signal relay with four channels, providing 24VUC output at 2A per channel for precise control applications.
• It incorporates substitute value output functionality, ensuring continued operation or safe state maintenance during specific diagnostic events or signal interruptions.
• Module diagnostics are integrated to monitor supply voltage status, providing essential feedback for system health and preventing unexpected downtime.
• The hardware supports overload protection class ST1/2, which allows for a temporary temperature increase up to eighty-five degrees Celsius for ten minutes.
• Physical dimensions are recorded as seven point seven by six point five by two point three centimeters, facilitating compact rack mounting.
• Net weight is listed at zero point zero three eight kilograms, indicating a lightweight design that minimizes load on supporting structures.

• The base model for this variant is identified as 6ES7132-6GD51-0BA0, with the current part number representing an enhanced version for extreme conditions.
• Color code CC00 is assigned to this specific unit, aiding in visual identification and inventory management within complex automation setups.
• The product lifecycle status is recorded as Active Product, confirming ongoing manufacturing support and technical documentation review details for current projects.
• Classification B indicates that review are restricted, requiring direct contact with designated Siemens review contacts for any post-delivery procedures.
